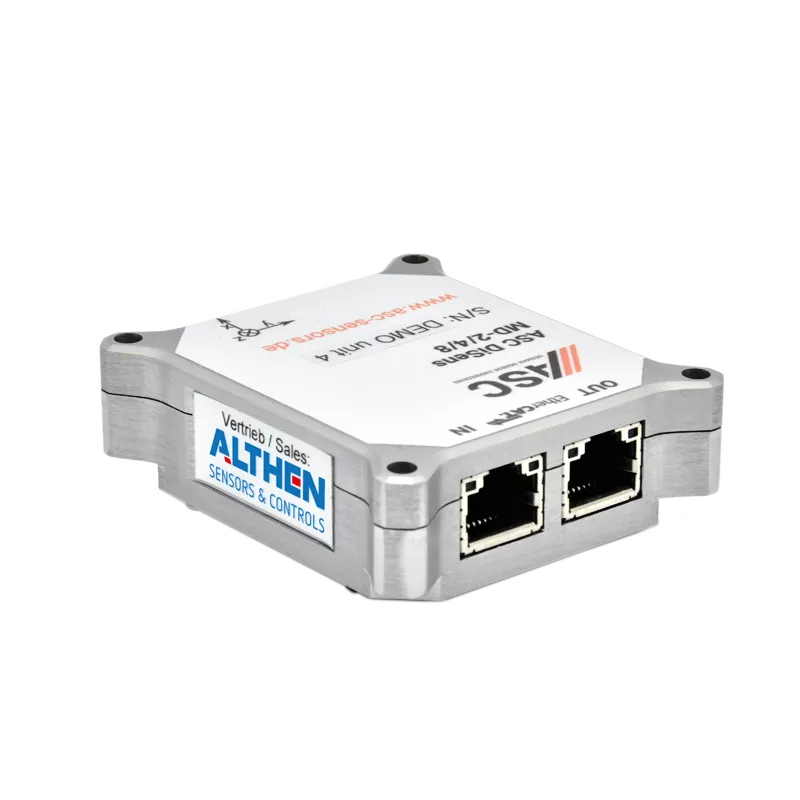

ASC DiSens® MD Digital Accelerometer

---

Caractéristiques principales

• Three-axis digital accelerometer
• No separate data acquisition required any more
• Measurement ranges: 2g, 4g and 8g
• With active power supply, up to 12 units can be connected via daisy chaining
• Software package DEWESoft X3 included

---

About the ASC DiSens® MD Digital Accelerometer

The ASC DiSens® series is a novel ASC sensor solution with digital interfaces. It combines high-quality sensors with an integrated data acquisition system, so that separate data acquisition is no longer necessary.

Due to the transmission of digital data, many interferences no longer play a role, which is particularly important for long cable lengths. The series begins with the new MD model, a triaxial digital accelerometer. The sensor has 2g, 4g and 8g measurement ranges, which are set via the integrated software.

The acceleration values are transmitted as raw data via the EtherCAT protocol to a host system. There they are processed by a separate analysis software. With an active power supply, up to 12 devices can be connected via daisy chaining.

The included DEWESoft X3 software package provides many advantages for the daily test and measurement work such as time savings and easy recording, analysis and reporting.

Key features ASC DiSens® MD

• Triaxial Accelerometer
• Digital Output: EtherCAT
• Daisy Chaining
• Protection Class IP20
• Software Package included
• Measurement Ranges: ±2g, ±4, ±8g
• DC Response
• High Resolution
• EtherCAT
• Noise Density: 25 μg/srt(Hz)
• High Shock Limit

Options ASC DiSens® MD

• Customised Cable Length



Applications ASC DiSens® MD

• Structural Health Monitoring
• Bridge Monitoring
• Seismic Measurements
• Mobile Network Antenna
• Structural Monitoring
• Vibration Monitoring on Construction Machines
• Condition Monitoring on Machines and Equipment





---
