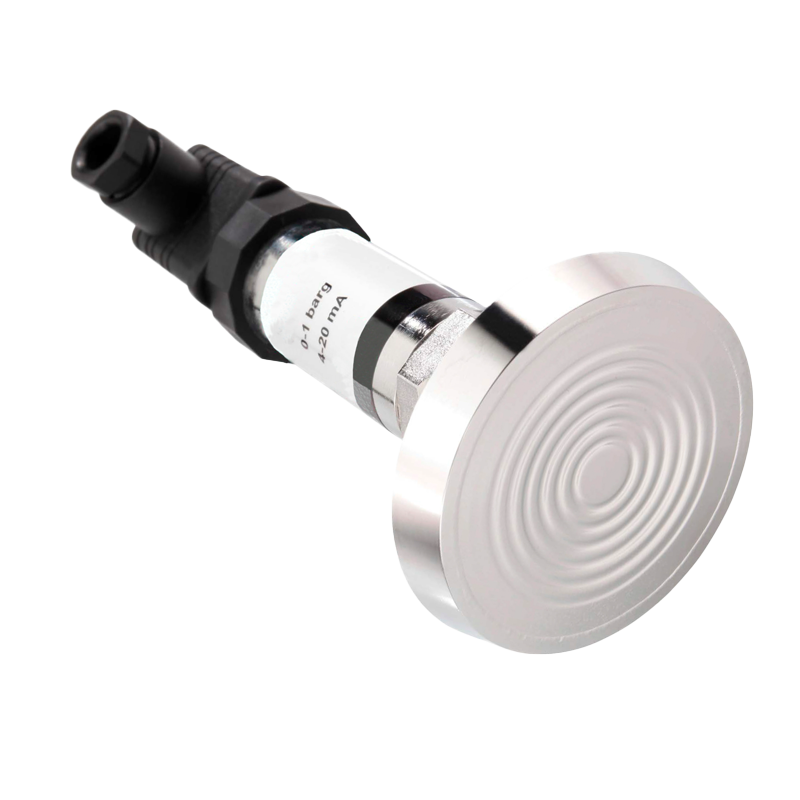

APR3800 Protran® Standard Pressure Transducer
Flush Diaphragm Pressure Transmitter
Caractéristiques principales
- Easy clean flush membrane to prevent clogging
- Thick film sensor technology for long service life
- Pressure ranges to 40 bar
- Range of sanitary grade pressure fittings
- ATEX/IECEx option available (includes M1 for mining applications)
About the APR3800 Pressure Transmitter
The APR3800 series offer a range pressure transmitters with integrated or remote barrier seals for applications where direct media contact must be prevented. Robustly constructed from stainless steel, this range of pressure trans-mitters incorporates the latest strain gauge technology together with a custom IC amplifier offering excellent stability and accuracy over a long service life. The range offers a stable and accurate output signal of 4-20 mA with options for 0-5 V and 0-10 V.
Typical applications include food processing, pharmaceutical, petrochemi-cal, waste water and slurry handling. In these installations the process media may corrode the sensing diaphragm or clog the narrow pressure inlet on a standard transmitter. The flush membrane can be easily cleaned for long term reliability and outstanding performance. For hygienic applications the APR3800 series provides a sanitary grade pressure fitting. Seals are available in a variety of forms and materials for a wide range of applications and can be directly attached to the proposed connection or remotely via stainless steel capillary. Pressure ranges available from 0-200 mbar to 0-40 bar.
An optional ATEX and IECEx approved versions of this range are available for explosion protection for flammable gases (zone 0), dusts (zone 20) and mining areas (group I M1).
Key Features
- Easy clean flush membrane to prevent clogging
- Thick film sensor technology for long service life
- Pressure ranges to 40 bar
- Range of sanitary grade pressure fittings
- ATEX/IECEx option available (includes M1 for mining applications)
Avez-vous besoin de ce capteur pour votre prochain projet?
Demandez un devis sans engagement ou envoyez-nous vos coordonnées pour une consultation gratuite et sans engagement. Nos ingénieurs commerciaux vous contacteront dans un délai maximum de 1 à 2 jours ouvrables.
Téléchargements de produits
Parlez à nos experts
Vous ne trouvez pas exactement ce que vous cherchez ? Nous proposons des capteurs et des systèmes de mesure standard, mais nous pouvons également vous aider à concevoir un capteur sur mesure ou une solution de mesure complète. N'hésitez pas à nous contacter pour obtenir des conseils ou un devis.
Parler à un expertSpécifications techniques
| Spécifications | Valeur |
|---|---|
| Accuracy nlhr | ≤ ±0.3 % of span BFSL |
| Atex/icex approval option (4-20ma version only) | Ex II 1 G Ex ia IIC T4 Ga (zone 0) Ex II 1 D Ex ia IIIC T135 °C Da (zone 20) Ex I M 1 Ex ia I Ma (group 1 M1) |
| Insulation resistance | > 100 MΩ @ 50 VDC |
| Operating media temperature | -20 °C to +85 °C (-4 °F to +185 °F) |
| Output signal | 4 - 20 mA (2 wire) |
| Overpressure safety: | 1.5x for all ranges |
| Pressure reference | Gauge |
| Protection of supply voltage | Protected against supply voltage reversal up to 50 V |
| Sensor technology | Ceramic Thick Film or Isolated Piezoresistive Silicon |
| Standard pressure ranges (bar) | 0-1 bar Vac; 0-200mbar, 0-1 bar; 0-2.5 bar; 0-6 bar; 0-10 bar; 0-16 bar; 0-25 bar; 0-40 bar (other options available)ar, 0-900 mbar (other ranges available) |
| Supply voltage | 13 - 36 VDC |
