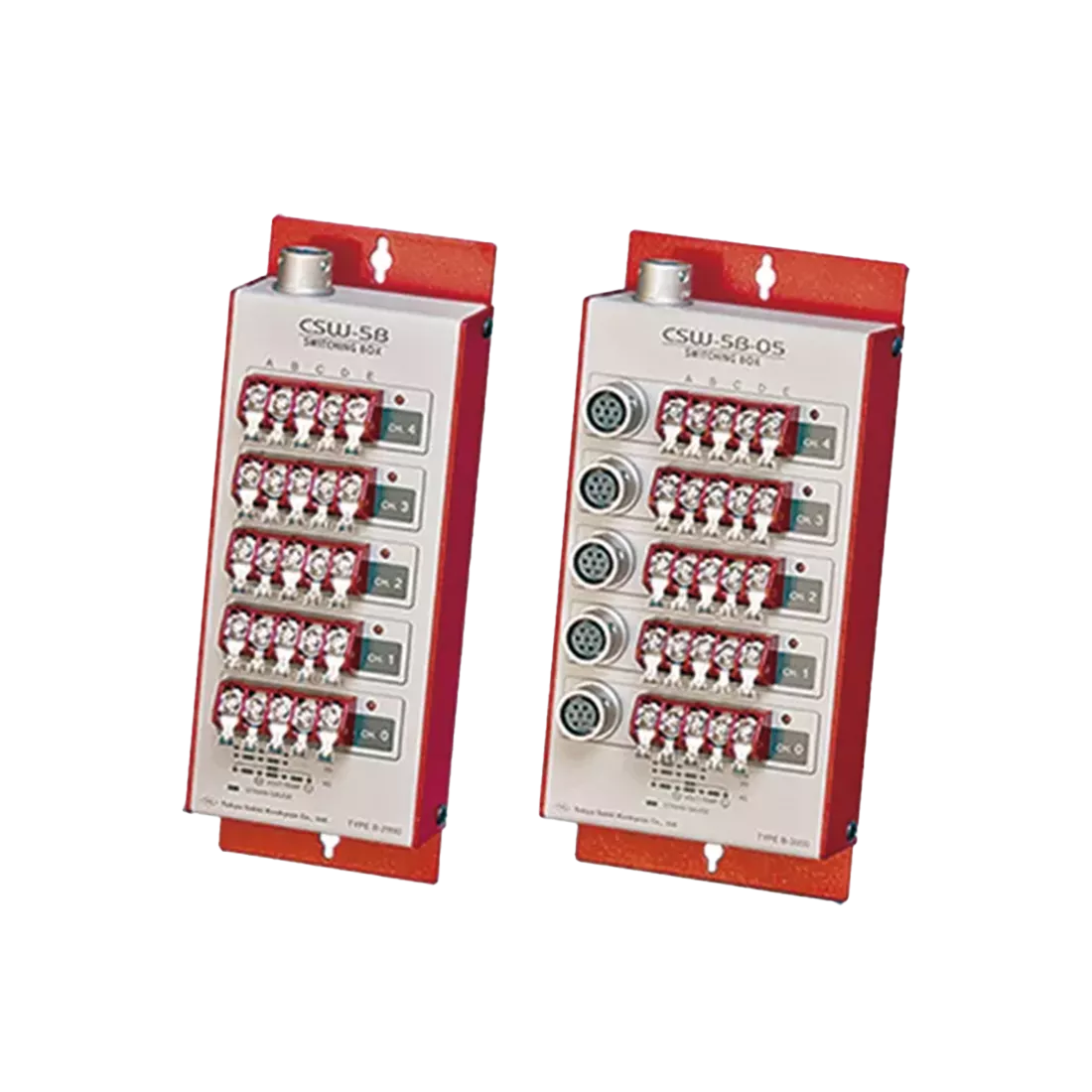

CSW-5B/CSW-5B-05 Switching Box
5-channel switching box for handheld data logger TC-32K
Caractéristiques principales
- Measurement of strain, DC voltage, Thermocouple and PtRTD
- 5 channels continuous monitoring
- Sensor mode is set by TC-32K
- Terminal can be screwed on or soldered
- Small and light weight
About the CSW-5B/CSW-5B-05 Switching Box
This is a 5-channel switching box used exclusively with handheld data logger TC-32K for extending the number of measurement points. It can measure strain, DC voltage, thermocouple and Pt-RTD. As for the CSW-5B-05, it is equipped with NDIS connector receptacle for every channel in addition to ordinary connecting terminals, which is convenient for use with strain gauge based transducers.
Features
- Measurement of strain, DC voltage, Thermocouple and Pt-RTD
-
5 channels continuous monitoring
-
Sensor mode is set by TC-32K
-
Terminal can be screwed on or soldered
-
Small and light weight
Avez-vous besoin de ce capteur pour votre prochain projet?
Demandez un devis dès aujourd'hui ou laissez vos coordonnées pour recevoir plus d'informations de la part de l'un de nos experts.
Faites-le à votre façon
Vous ne trouvez pas exactement ce que vous cherchez ? Nous proposons des capteurs et des systèmes de mesure standard, mais nous pouvons également vous aider à concevoir un capteur sur mesure ou une solution de mesure complète. N'hésitez pas à nous contacter pour obtenir des conseils ou un devis.
Parler à un expertSpécifications techniques
Spécifications | Valeur |
---|---|
Dimensions | CSW-5B : 75(W) x 35(H) x 204(D)mm | CSW-5B-05 : 95(W) x 35(H) x 204(D)mm |
Measuring object | Strain, DC voltage, Thermocouple, Pt-RTD |
Number of measuring channels | 5 channels |
Power supply | Supplied from TC-32K |
Weight | CSW-5B : 500g | CSW-5B-05 : 650g |
