Vibromatrix® InnoMeter® 4150-3

---

About the Vibromatrix® InnoMeter® 4150-3 Software

The InnoMeter 4150-3 combines vibration measurement, evaluation and presentation of results in one instrument. The most important characteristic: A report can be printed at any time since the evaluation is carried out simultaneously with the measurement. Circuitous data transfer is not required here. You are ready for giving a statement immediately and at any time.

4150-3 features a permanently active, automatic frequency recognition and achieves exact results with 4 million analyses/day.

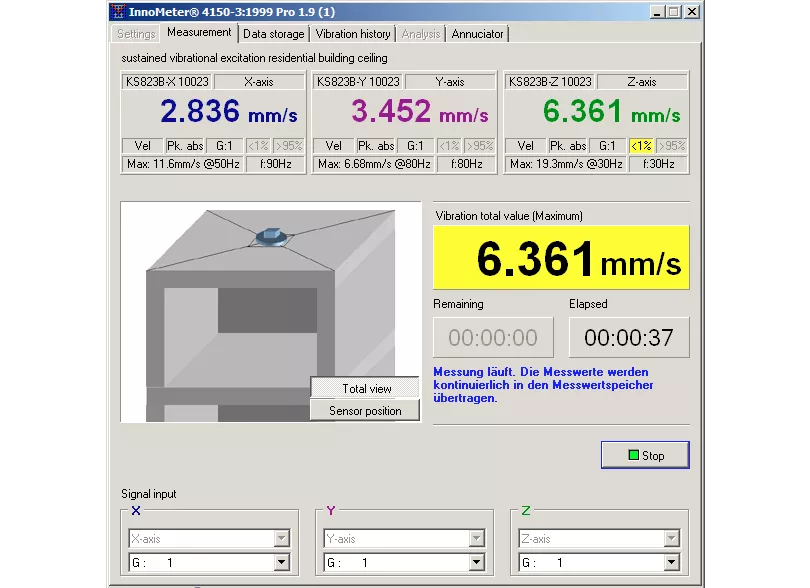

The measured data is available in differently detailed levels: You can see the overall status at once, but you are able to display more details concerning interesting events progressively. Detail depth reaches up to the recorded high-resolution vibration signal. This way, analysis with additional software can be carried out easily.

When it comes to printing a record, the detail depth can be selected as well. The most important data incl. the measurement graph fits on one A4 page. If required, the single events are printed as well. The period for the report to be printed can also be selected.

Automatic transmission of measurement results via e-mail or notification of outsiders about alarms for instance via signal lamps is possible as well.

Applications InnoMeter® 4150-3

The InnoMeter 4150-3 is designed for the measurement of vibrations on buildings acc. to DIN 4150-3.

Vibrations from heavy building activities, traffic, machine operation or also detonations affect existing building stock. The InnoMeter 4150-3 measures these vibrations, evaluates them acc. to the standard immediately and can inform about the occurred vibrations at any time.

Therefore, a triaxial vibration sensor is positioned at the building. By means of a signal converter type InnoBeamer, its signals are transmitted to the computer on which the InnoMeter 4150-3 is running.

With the measurement kits VMSet-23(P) und VMSet-24(P) is a suitable set available, which contains sensors and signal converters for the connection to your own measuring computer.

Requirements for using InnoMeter® 4150-3

• Microsoft Windows operating system
• Windows XP or newer (32-bit and 64-bit)
• VibroMatrix measurement system (measurement amplifier InnoBeamer required)
