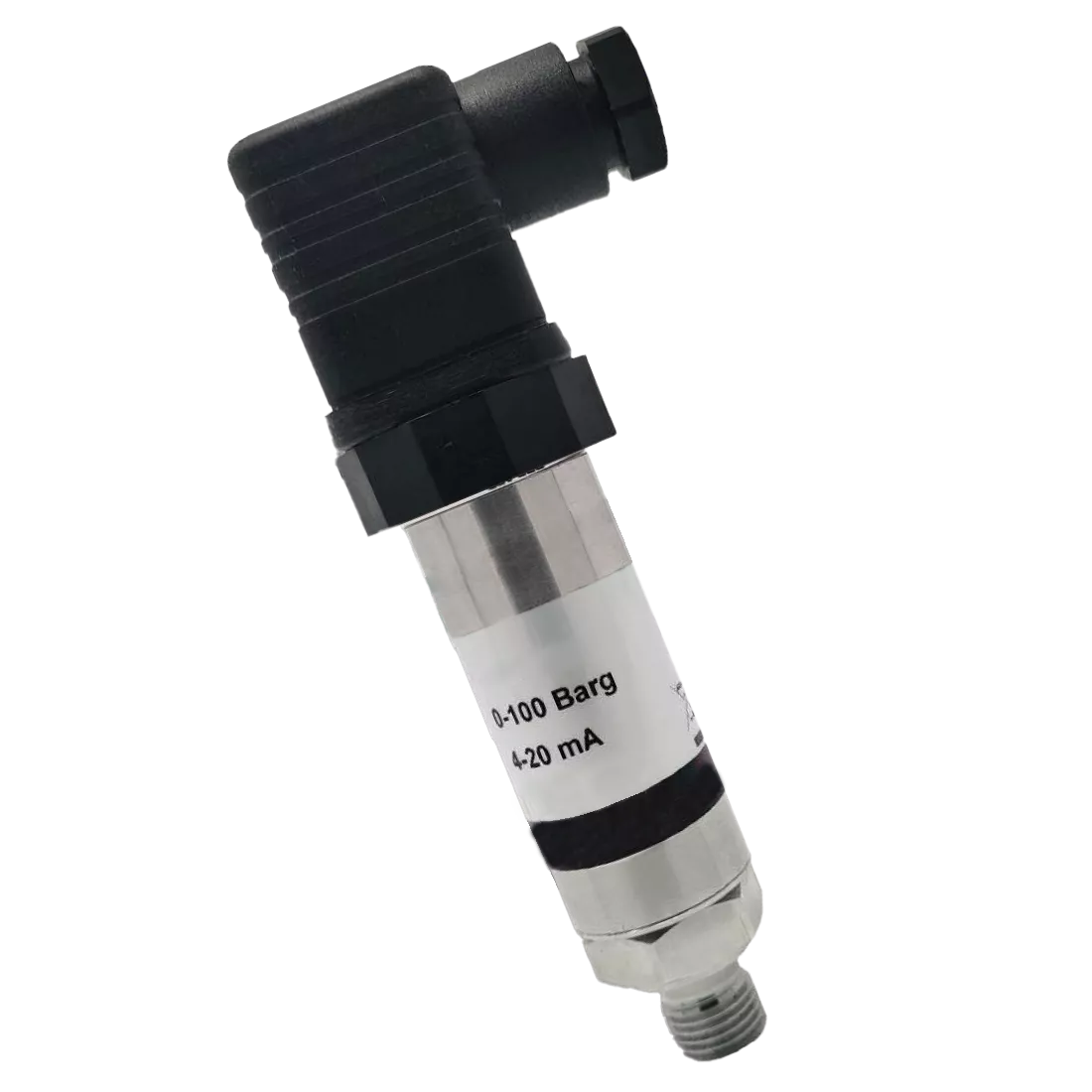

AGS4600 Universal Pressure Transmitter
The AGS4600 series of general purpose industrial pressure transmitters offers high performance pressure measurement up to 100 bar.
Belangrijkste kenmerken
- Piezoresistive silicon sensor technology for high performance
- Absolute, Gauge and Vacuum pressure ranges
- Accuracy rating 0.30 % of span BFSL
- Pressure ranges from 0.5 bar to 100 bar
- Adjustable zero and span access
- DIN connector version only - Flexible modular design for universal applications
- Robust 316 grade stainless steel construction
- Excellent corrosion resistance over a wide variety of industrial processes
About the AGS4600 Universal Pressure Transmitter
The AGS4600 series of general purpose industrial pressure transmitters offers high performance pressure measurement up to 100 bar. Available in both absolute and gauge pressure ranges, the modular design of the AGS4600 series means the product configuration can be adapted to provide cost effective and reliable solutions for moderate sized customer requirements
Typical applications include:
• Industrial processes and machine engineering
• Environmental engineering (waste water management, recycling, renewables)
• Pneumatic systems
• OEM solutions
Heeft u deze sensor nodig voor uw project?
Vraag een vrijblijvende offerte aan of stuur ons uw contactgegevens voor een gratis en vrijblijvend gesprek. Onze sales engineers nemen dan binnen maximaal 1 tot 2 werkdagen contact met u op.
Product downloaden
Praat met onze experts
Niet precies wat u zoekt? Wij bieden standaard sensoren, maar kunnen u ook helpen met voor u aangepaste sensoren of een volledig op maat gemaakte meetoplossing. Neem contact met ons op voor advies of prijzen.
Praat met een expertTechnische specificaties
| Specificaties | Waarde |
|---|---|
| Sensor Technology: | Isolated Piezoresistive Silicon |
| Output Signal: AGS4600 / AGS4602/GS4612 / AGS4603/GS4613 | 4-20 mA / 0-5 VDC (4 or 3 wire) / 0-10 VDC (4 or 3 wire) |
| Supply Voltage: | 10-36 VDC / 10-30 VDC / 13-30 VDC |
| Pressure Reference: | Absolute, Gauge, or Vacuum |
| Protection of Supply Voltage: | Protected against supply voltage reversal up to 50 VDC |
| Standard Pressure Ranges (bar): | 0 – 1 bar Vac (gauge ref only); 0 – 0.5 bar; 0 – 1 bar; 0-1.6 bar; 0-2.5 bar; 0-4 bar; 0-6 bar; 0–10 bar; 0-16 bar; 0–25 bar; 0-40bar; 0-60 bar; 0–100 bar; (other ranges available) |
| Standard Pressure Ranges (psi): | 0-30 in Hg (gauge ref only); 0-7.5 psi; 0-15 psi; 0-30 psi; 0-50 psi 0-100 psi; 0-150 psi; 0-200 psi; 0-300 psi; 0-500 psi;0-1,000 psi; 0-1,500 psi; (other ranges available) |
| Overpressure Safety: | 4x for ranges to 0.5 bar; 2x for all other ranges |
| Load Driving Capacity: | 4-20 mA: RL < [UB - 10 VDC] / 20 mA (e.g. with supply voltage (UB) of 36 VDC, max. load (RL) is 1300 Ω;0-5 VDC: max. load RL > 5 KΩ; 0-10 VDC: max. load RL > 10 KΩ |
| Accuracy NLHR: | ≤ ±0.30 % of span BFSL |
| Zero Offset and Span Tolerance: | ±0.5 %FS at room temperature (GS4600: ±1 mV); ±5 %FS (approx.) adjustment with easy access trimming potentiometers onamplified versions only |
| Operating Ambient Temperature: | -20°C to +85°C (-4°F to +185°F) |
| Operating Media Temperature: | -20°C to +85°C (-4°F to +185°F) |
| Storage Temperature: | +5°C to +40°C (+41°F to +104°F) Recommended Best Practice |
| Temperature Effects: | ±2.1%FS total error band for -10°C to 70°C. Typical thermal zero and span coefficients ±0.05 %FS/ °C |
| Electromagnetic Compatibility: | Emissions: EN61000-6-3; Immunity: EN61000-6-2; Certification: UKCA/ CE Marked |
| Insulation Resistance: | > 100 MΩ @ 50 VDC |
| Response Time 10-90%: | 1 mS |
| Electrical Connection: | Mating socket EN175301-803 Form A (ex DIN43650) rated IP65 with PG9 cable entry |
| Net. Weight (Kg): | 0.3 Kg |
