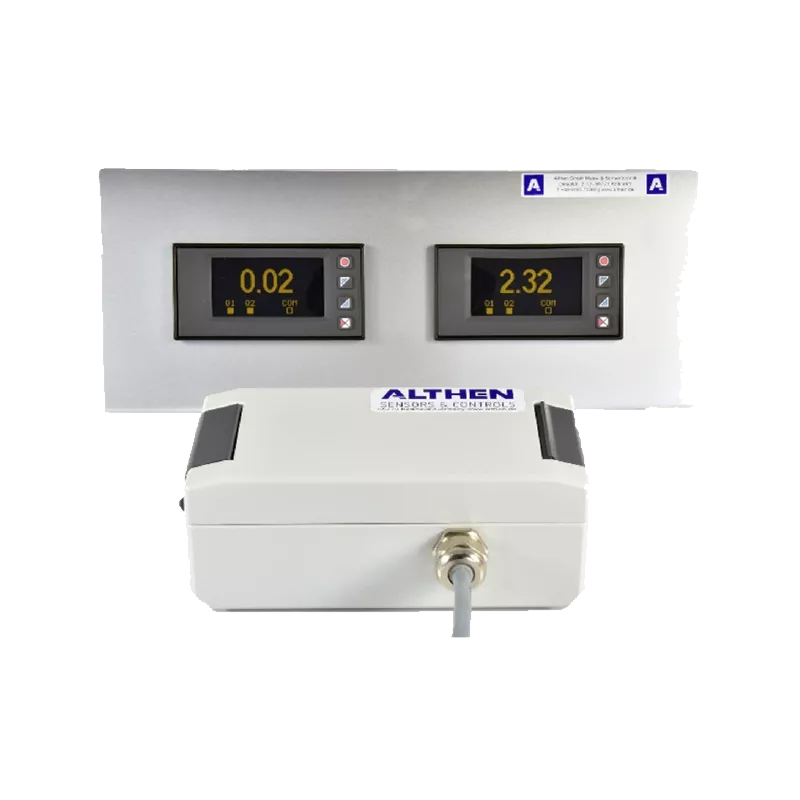

NM2-IP2-2L-OLED Tilt Meetsysteem
Dubbelassig kantelmeetsysteem in een compacte aluminium behuizing met een OLED-display per meetas
Belangrijkste kenmerken
- Measuring range ±3° up to ±45° per axis
- Accuracy ±0,1° (up to ±10°), ±0,2° (up to ±30°), ±0,25° (up to ±45°)
- Analogue output 4 … 20 mA (2-wire-technology)
- Front panel OLED display per axis
- Supply voltage 18 … 28 VDC
About the NM2-IP2-2L-OLED Tilt Measuring System
The dual axis industrial tilt measuring system NM2-IP2-2L-OLED is the combination of two non-contact inclination sensors, sensor adapted electronics and two OLED displays. The measuring system is designed for precise tilt measurement in X- and Y-axis and intended for ground assembly. Available tilt measuring ranges are ±3° to ±45°. The two analogue output signals of 4 - 20mA in 2-wire-technology are standard signals and therefore a further analysis is easily feasible. The display of the current measured value, bar graph, trend display, the peak value (MIN, MAX) and the setting of limit values takes place via an OLED display for each measuring axis in the front panel housing.
The tilt measuring system is built into a robust EMC-safe die-cast aluminium enclosure (IP66), which is well suited for applications in rough and industrial environments. Furthermore, the built-in electronics are protected against humidity and vibrations. The two OLED displays are designed for installation in a front panel.
Heeft u deze sensor nodig voor uw project?
Vraag een vrijblijvende offerte aan of stuur ons uw contactgegevens voor een gratis en vrijblijvend gesprek. Onze sales engineers nemen dan binnen maximaal 1 tot 2 werkdagen contact met u op.
Product downloaden
Praat met onze experts
Niet precies wat u zoekt? Wij bieden standaard sensoren, maar kunnen u ook helpen met voor u aangepaste sensoren of een volledig op maat gemaakte meetoplossing. Neem contact met ons op voor advies of prijzen.
Praat met een expertTechnische specificaties
| Specificaties | Waarde |
|---|---|
| Accuracy at 23°c | Up to ±10°: ±0.1° ; Up to ±30°: ±0.2° ; Up to ±45°: ±0.25° |
| Analogue output / burden | 4 - 20 mA (2-wire), max burden depending on supply voltage |
| Cross-sensitivity | < 1.5% at 30° |
| Dimensions (w x h x d) | ca. 160 x 65 x 86 mm (without EMC cable gland); ca. 96 x 48 x 53 mm (OLED display, without connection terminals)) |
| Electrical connection | 3 m connection cable 2 x 2 x 0.25 mm²; optional: cable length according to customer requirements |
| Enclosure | EMC-safe aluminium die-cast enclosure |
| Frequency range (-3db) | 0.5 Hz |
| Number of measuring axis | 2 |
| Power consumption | ca. 2 W |
| Preferred measuring range | ±3°, ±5°, ±10°, ±15°, ± 20°, ±30°, ±45° (other measuring ranges for both axis as well as different measuring ranges for each axis (e.g. X: ±30° Y: ±3°) on request possible) |
| Protection class | IP66 |
| Supply voltage | 18 - 28 VDC |
| Temperature, operating | -20 to +60 °C (measurement system); 0 to +40 °C (OLED display) |
| Temperature, storage | -20 to +60 °C |
| Weight | ca. 1450 g |
