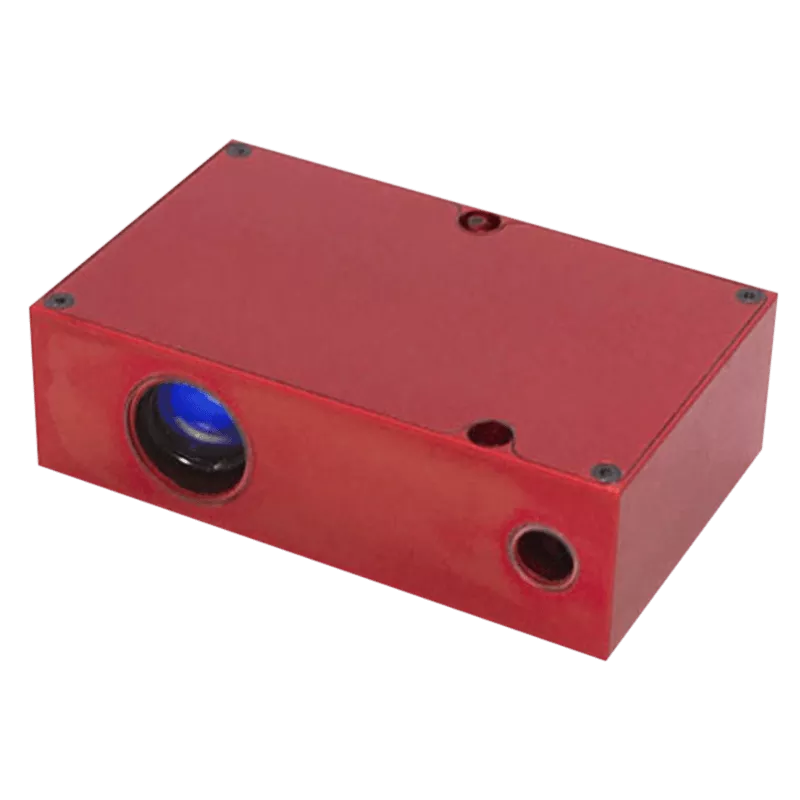

FDRF60-i Laser Triangulation Sensor
Specialized laser sensors for pavement profile and texture measurement
Nyckelfunktioner
- Measuring ranges: 30, 200, 250, 500 or 1.000 mm
- For Pavement Profile and Texture Measurement
- Round laser spot of <1 mm diameter
- High resistance to solar radiation
- Stable operation on wet surfaces
About FDRF60-i Series Specialized Laser Sensors
The sensors are intended for non-contact measuring and checking of position, displacement, dimensions, surface profile, deformation, vibrations, sorting and sensing of technological objects as well as for measuring levels of liquid and bulk materials.
Behöver du den här sensorn till ditt nästa projekt?
Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.
Få det på ditt sätt
Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.
Prata med en expertTekniska specifikationer
| Specifikation | Värde |
|---|---|
| Base distance x | 30mm - 245mm |
| Housing material | Aluminum |
| Lightsource | Red (660nm) |
| Linearity | ±0.05% or ±0.03% |
| Max. measurement frequency | 9,4kHz/70kHz |
| Output interface | RS232, RS485, Ethernet, 4-20mA, 0-10V |
| Range | 30, 200, 250, 500, 1000mm |
| Resolution | 0.01% |
| Size | 65x50x20mm/89x55x28mm/62x60x20mm |
| Temperature drift | 0,02% of the range/°С |
| Weight | 100gram/150gram |
