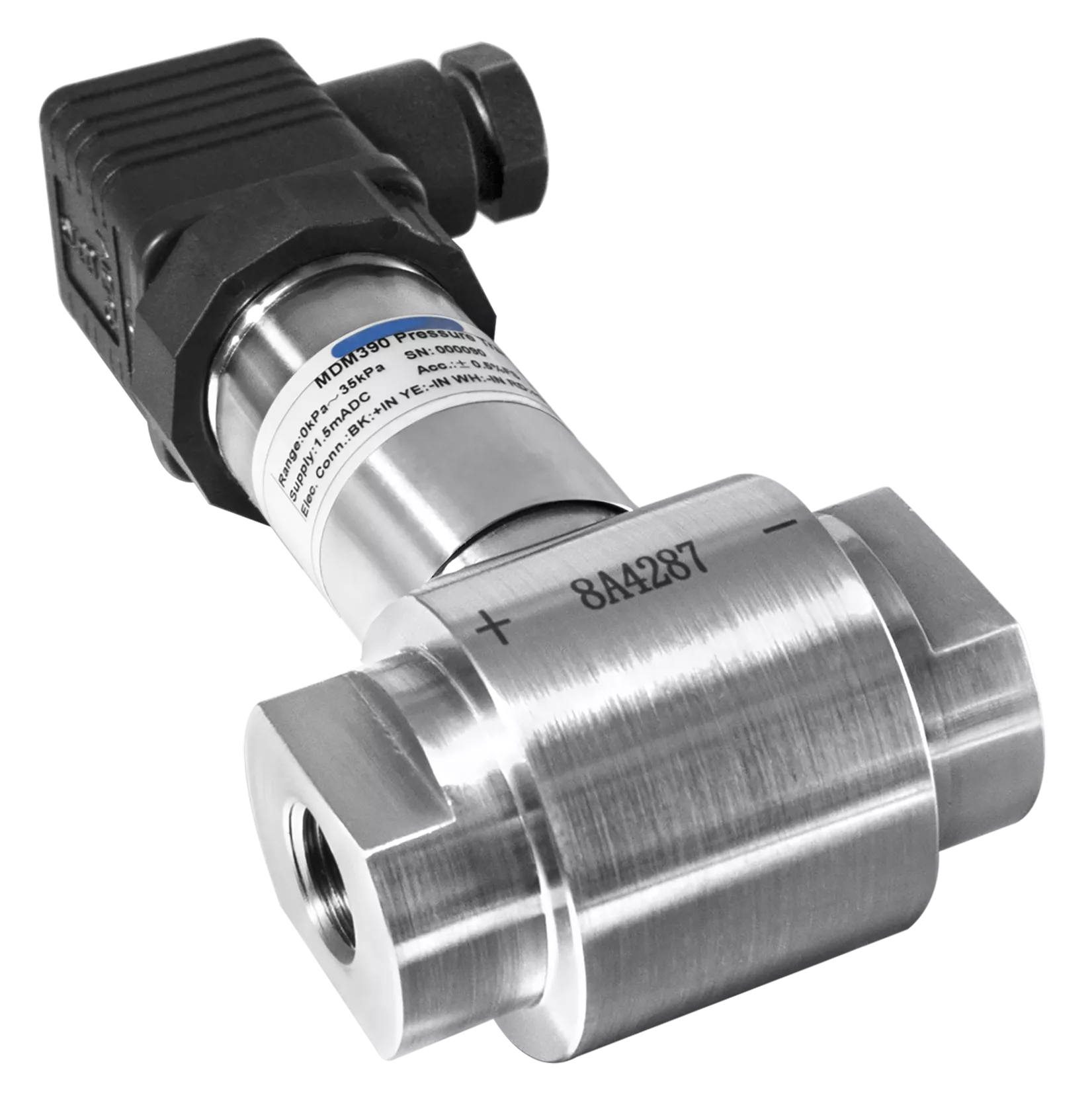

MDM390 Differential Pressure Transmitter
Small sized, easy to use differential pressure sensor
Nyckelfunktioner
- OEM differential pressure sensor
- Full solid insulation, high stability, reliability and accuracy
- Constant current supply
- Max. static pressure 20MPa
- G1/4 female pressure port
- Liquid, gas and other media differential pressure measurement
- Compact size.
About the MDM390 Differential Pressure Transmitter
The MDM390 Differential Pressure Transducer is produced by putting OEM differential pressure sensor into fully-welded housing with G1/4 female for both positive and negative cavities. The transducer can be mounted into measuring tubes through G1/4 female pressure port or leading tube.
This product uses cable connection. The transducer can be widely applied in industrial process control, flow measurements, medical devices, air dynamical measurements and liquid pressure instruments or pneumatic plants, etc.
Behöver du den här sensorn till ditt nästa projekt?
Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.
Produktnedladdningar
Få det på ditt sätt
Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.
Prata med en expertTekniska specifikationer
Specifikation | Värde |
---|---|
+overpressure | 2 times FS |
Cable | Φ7.2mm PVC cable |
Compensation temperature | 0℃ ~50℃ |
Diaphragm | Stainless steel 316L |
Fs drift | <±0.02%FS/℃ |
Housing | Stainless steel 1Cr18Ni9Ti |
Insulation resistor | 100MΩ,100VDC |
O- ring | Viton |
Operation temperature | -10℃ ~70℃ |
Output signal | ≥60mVDC |
-overpressure | 1 time FS or 1MPa(min. value is valid) |
Pressure range | 0~35kPa…3.5MPa |
Protection | IP65 |
Response time | + pressure cavity<3kHz - pressure cavity<2kHz |
Static pressure | ≤20MPa |
Static pressure effect | ≤0.05mV/100kPa |
Storage temperature | -20℃ ~85℃ |
Zero drift | <±0.02mV/℃ |
Zero output | ≤2mVDC |
