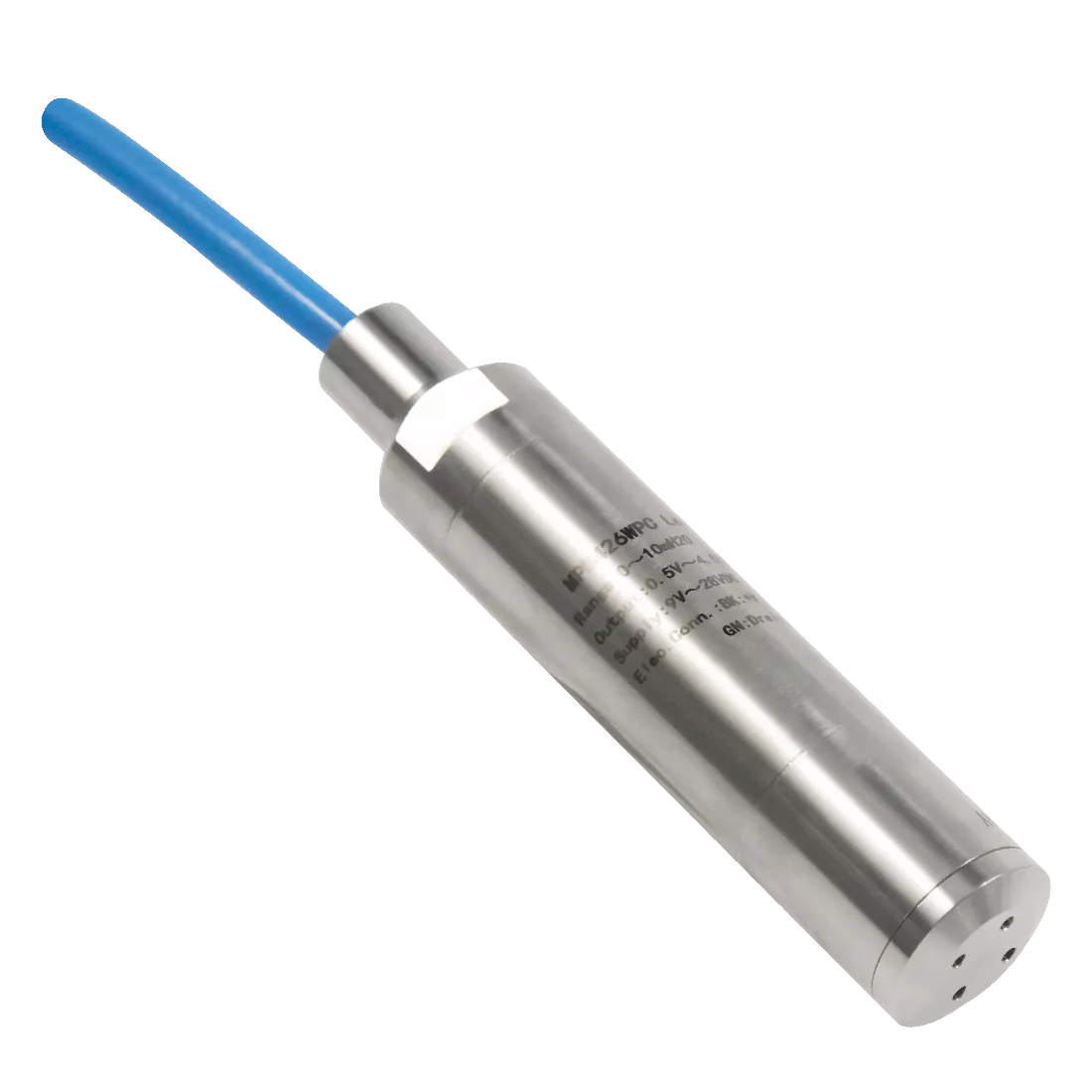

MPM426WPC Level Transmitter
Fully welded, submersible level measurement sensor
General Information
The MPM426WPC level transmitter is a fully welded, submersible sensor for level measurement. This product uses an OEM piezoresistive pressure sensor with proven long-term stability and reliability. In addition, this sensor has a special digital compensation circuit built into a stainless steel housing. The integrated structure and standardized output signal facilitate field use and automatic control. The vented Teflon® coated cable and housing are hermetically sealed, allowing the sensor to be used for long periods in fluids compatible with the sensor material.
Applications
This transmitter is mainly used for pressure measurement and control of several chemicals.
Behöver du den här sensorn till ditt nästa projekt?
Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.
Produktnedladdningar
Få det på ditt sätt
Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.
Prata med en expertTekniska specifikationer
Specifikation | Värde |
---|---|
Accuracy | ±1% FS( ≤ 3.5mH2O) ±0.5% FS(>3.5mH2O) |
Cable | Cable: φ7.5mm Teflon® Jacketed Cable |
Diaphragm | Stainless steel 316L |
Housing | Stainless steel 316L |
Level range | 0mH2O~2mH2O/3.5mH2O/5mH2O/10mH2O /20mH2O/35mH2O |
Load resistance | ≥ 10kΩ |
Long-term stability | ≤ ±0.3%FS/Year |
Output signal | 0.5V~4.5V DC (3-wire), with temperature signal |
Overload | 1.5FS |
Power supply | 9V~28V DC or 5V DC |
Pressure type | Gauge |
Protection rating | IP68 |
Storage temperature | 100V@100MΩ |
Storage temperature | -40℃ ~ 100℃ |
Total error | ±2% FS( ≤ 3.5mH2O, -20℃ ~75℃ ) ±1.5% FS (> 3.5mH2O, -20℃ ~75℃ ) |
Weight | about 260g (Including no cable), cable is about 94g/m |
Working temperature | -30℃ ~ 80℃ |
