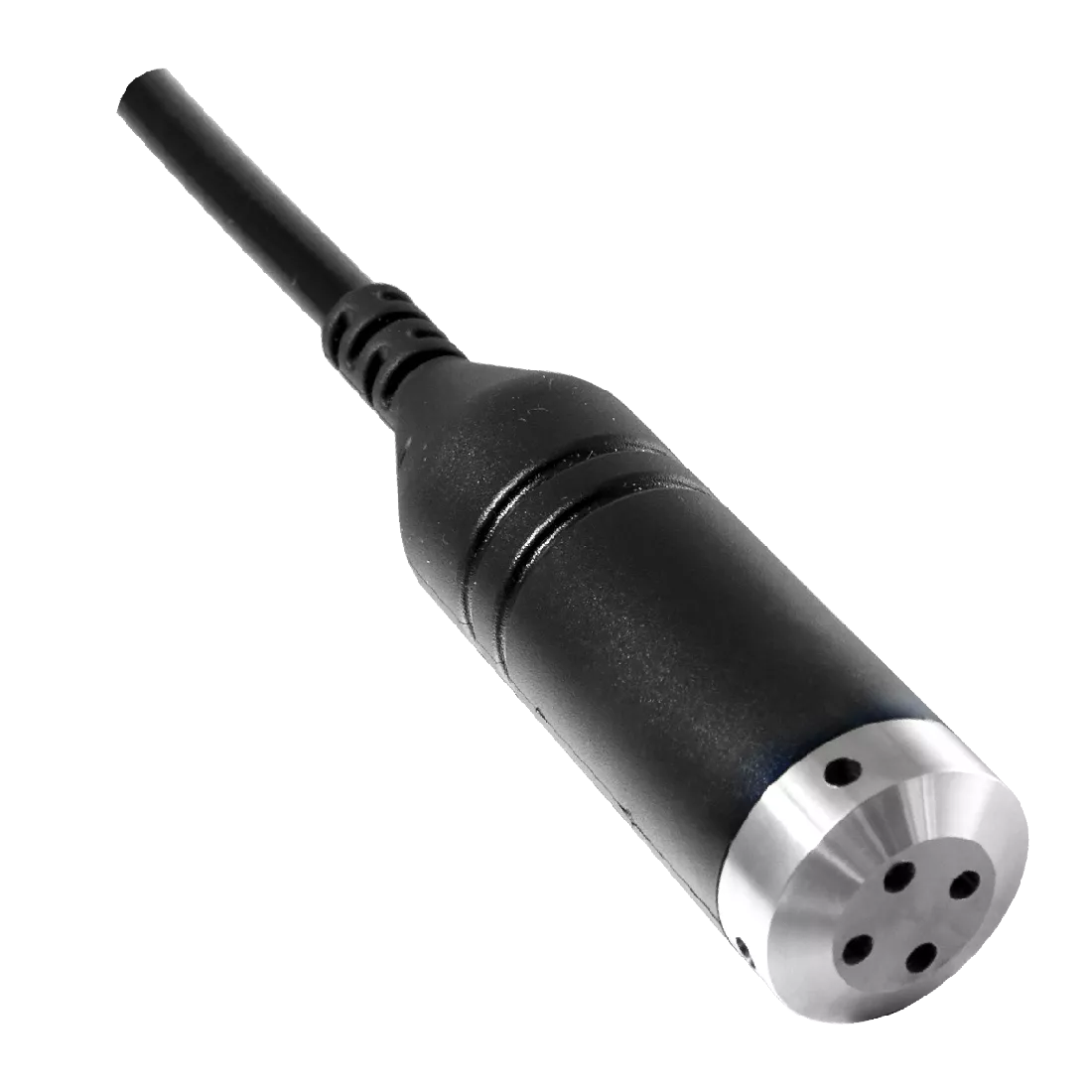

MPM4893W Submersible Level Transmitter
Economical, IP68 protected level sensor for liquid depth measurements
Nyckelfunktioner
- Integrated construction, unnecessary to do outer adjustment
- IP68 Protection for sensor housing, IP65 for connection box
- Cost-efficient, high reliability and stability
About the MPM4893W Submersible Level Transmitter
The MPM4893W is fully sealed submersible level sensor. This transmitter is made by building in very stable and reliable OEM piezo-resistive pressure sensor and a super accurate circuit board into a low pressure injection molding housing. Integrated construction and standard signal provide the user easy and convenient application in the working place. The special cable, connected with housing, can be immerged into liquid for a long time.
The MPM4893W level transmitter has compact size, light weight and fine stability; this sensor can be applied for water or liquid measurement and control of medicine, metallurgy, electricity, mine, city water supply and drainage and hydrology, etc.
Construction Material
• Cap: stainless steel 304
• Sensor housing: stainless steel 316L
• Diaphragm: stainless steel 316L
• O-ring: Viton
• Housing: PA
• Cable: φ7.5mm polyurethane cable
Behöver du den här sensorn till ditt nästa projekt?
Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.
Produktnedladdningar
Få det på ditt sätt
Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.
Prata med en expertTekniska specifikationer
Specifikation | Värde |
---|---|
Accuracy | ±0.5%FS |
Application temperature | -10℃ ~80℃ |
Load | ≤(U-11) / 0.02Ω (2-wire), ≥10k (3-wire) |
Output signal | 4mA~20mADC (2-wire), 0.5V~4.5VDC (3-wire) |
Overpressure | 1.5 times FS |
Power supply | 11V~28VDC |
Range(fs) | 2m, 5m, 10m, 20m, 50 mH2O |
Stability | range>10mH2O, ±0.2%FS/year range≤10mH2O, ±20mmH2O |
Storage temperature | 20℃ ~100℃ |
