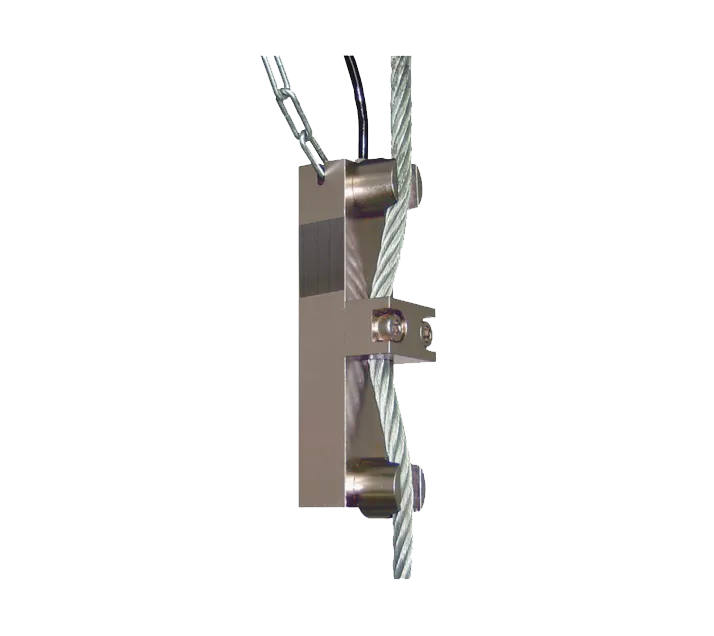

AWLFN2R Series Rope Measuring Loadcell
Specially designed for protecting cranes from overload and for measuring the tension of wireropes.
Nyckelfunktioner
- Capacity: 500kg, 1, 1.5, 2.5, 4, 8, 10ton / Rope
- Approx. 1.0mV/V Rated output
- ≤1.0% R.O. Non-linearity
- ≤1.0% R.O. Hysteresis
- ≤1.0% R.O. Non-repeatability
- -10 to 70°C Compensated temperature range
About the AWLFN2R Series
In many industrial applications the tension in were rope needs to be carefully and continuously monitored. Usually all load cells are placed in series with the rope, either at a point along its length or more commonly between the end of the rope and the fixture. Such a load cell is best suited to new application where it is designed in at an early stage.
Behöver du den här sensorn till ditt nästa projekt?
Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.
Produktnedladdningar
Få det på ditt sätt
Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.
Prata med en expertTekniska specifikationer
| Specifikation | Värde |
|---|---|
| Compensated temperature range | -10 to 70°C |
| Hysteresis | ≤1.0% R.O. |
| Non-linearity | ≤1.0% R.O. |
| Non-repeatability | ≤1.0% R.O. |
| Rated capacity (r.c.) | 500kg, 1, 1.5, 2.5, 4, 8, 10t / Rope |
| Rated output (r.o.) | Approx. 1.0mV/V |
| Recommended excitation | 3~12V(Recommended), 15V(Max.) |
