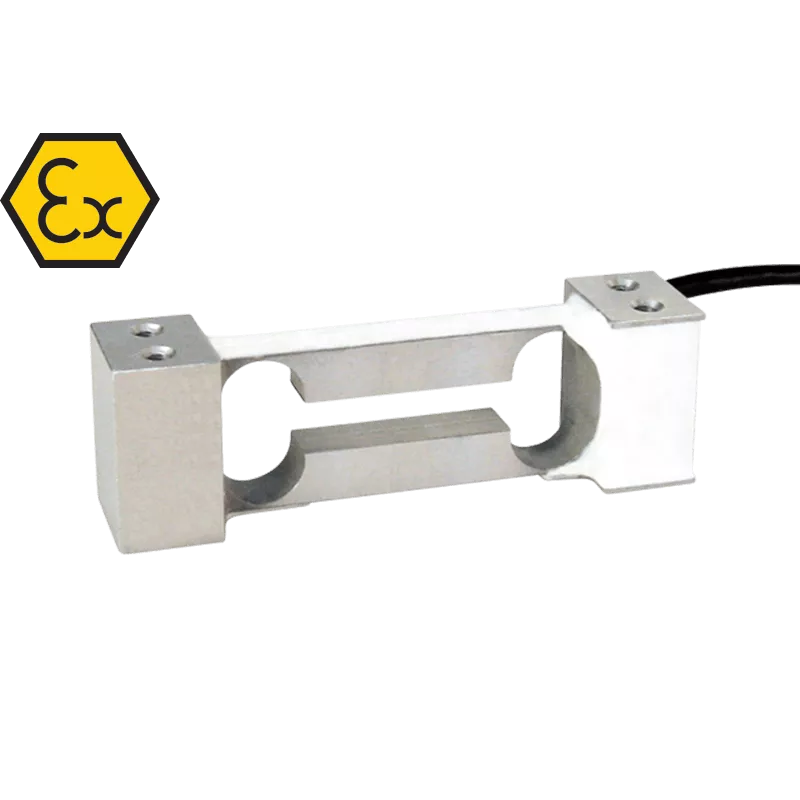

AS Single Point Load Cell
For platforms 200 x 200mm
Nyckelfunktioner
- Range: 0.25, 0.5, 1kg
- Aluminium alloy loadcell
- Combined error < +/- 0.03%
- Protection rating IP 65
General information
The AS platform load cell is suitable for series use in weighing and batching systems, level measurement equipment and general force measurement systems where accurate measurements are required at low cost.
Features
- Measuring range: 0.25, 0.5, 1kg
- Stainless steel construction
- Combined error:< ±0.03%.
- Supply voltage: 15V
- Protection class: IP65
Behöver du den här sensorn till ditt nästa projekt?
Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.
Produktnedladdningar
Få det på ditt sätt
Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.
Prata med en expertTekniska specifikationer
Specifikation | Värde |
---|---|
Combined error | ≤±0.03% |
Compensated temperature range | -10 °C / +40 °C |
Creep at nominal load in 30 minutes | 0.03% |
Deflection at nominal load | 0.5 mm |
Input resistance | 410 Ω ±10 |
Insulation resistance | >2000 MΩ |
Material | Aluminum alloy |
Max supply voltage without damage | 15 V |
Measurement range | 0.25, 0.5, 1kg |
Nominal load (eₘₐₓ) | 0.25 - 0.50 - 1.00 kg |
Operating temperature range | -20 °C / +60 °C |
Output resistance | 350 Ω ±3 |
Protection class | IP65 |
Rated output | 1 - 2 mV/V ±15% |
Safe overload (% of full scale) | 120% |
Temperature effect on span | 0.0025% °C |
Temperature effect on zero | 0.0025% °C |
Ultimate overload (% of full scale) | 200% |
Zero balance | ±2% |
