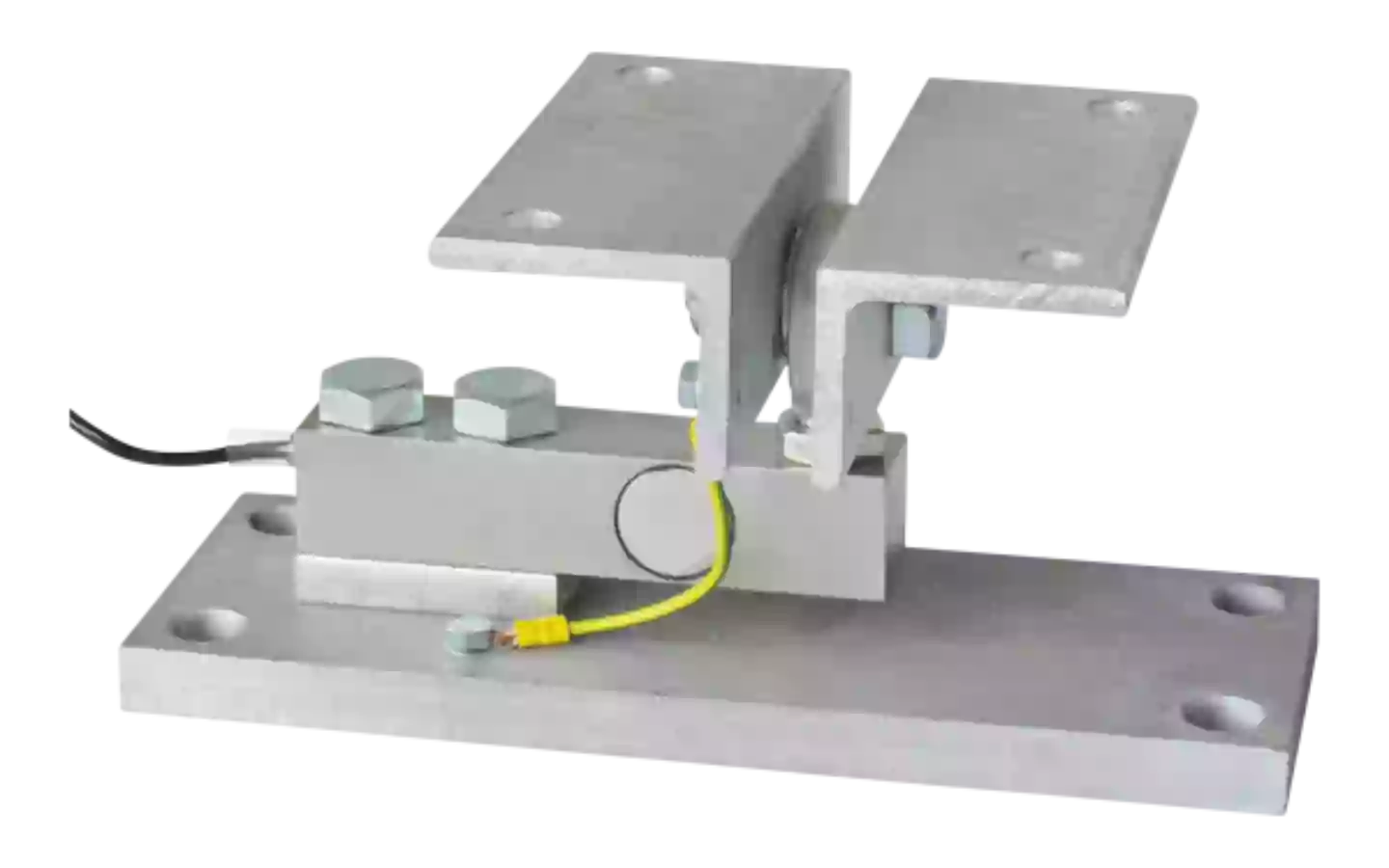

PS Mounting Kit for Loadcells
Hot worked galvanized mounting kit designed for silos, mixing machines, tanks, hoppers subject to vibrations because of parts in motion
Nyckelfunktioner
- Range: 3000 to 10000kg
- For loadcells FTP, FTK, FTZ
- Misalignment compensation of the support plates structure.
- Adjustable height.
Other features PS
- Hot worked galvanized (PS) or AISI 304 stainless steel (PS10T) upper plate.
- Lower plate and block in hot worked galvanized.
- Constraint against lateral forces and anti-tilt by ball-and-socket joint.
Applications for PS Mounting Kit
Hot worked galvanized mounting kit designed for silos, mixing machines, tanks, hoppers subject to vibrations because of parts in motion. Provided with a ball joint, adjustable height, against lateral forces and anti-tilt to compensate for misalignment of the support plates.
Max static load 5000/10000 kg.
