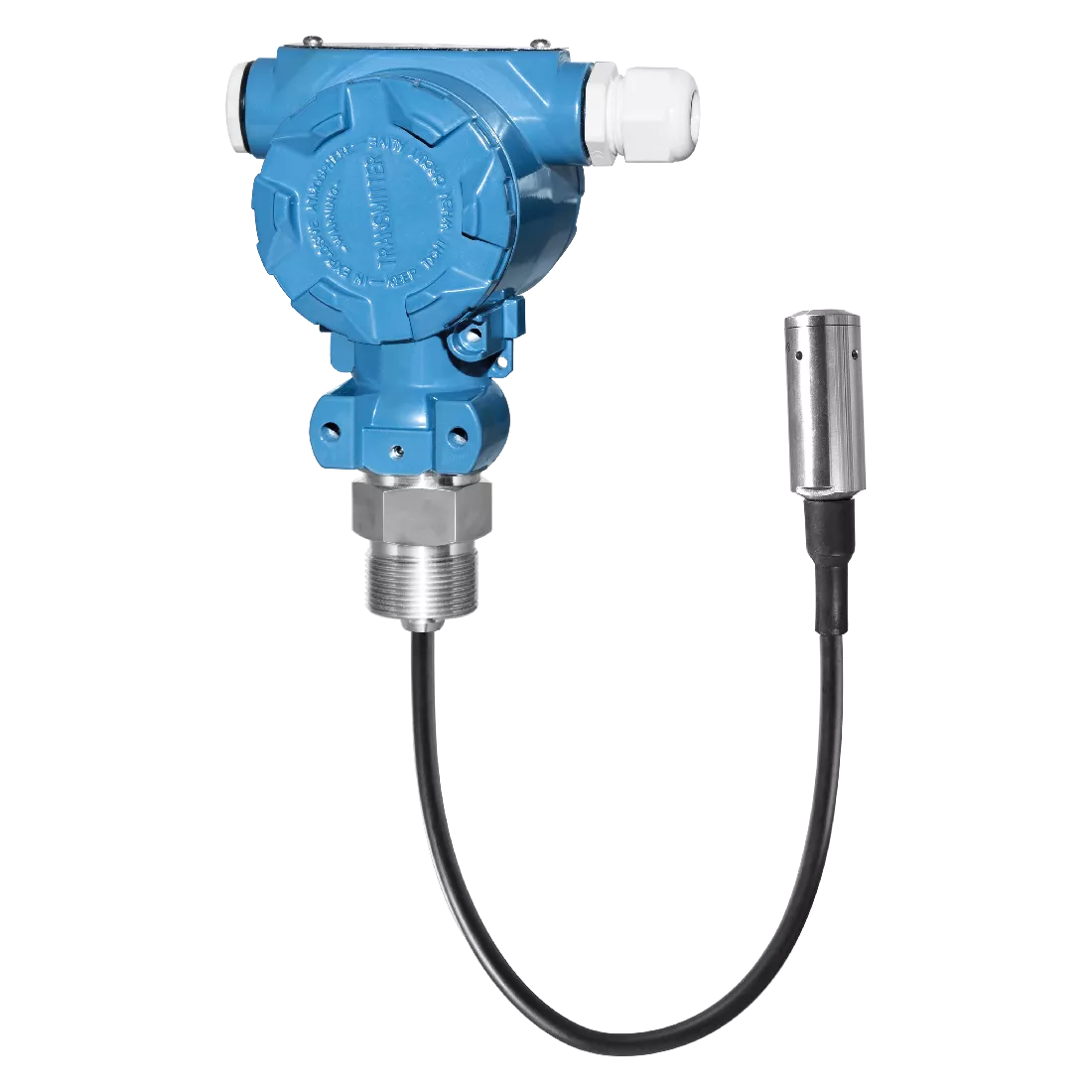

MPM416W Intrinsically Safe Submersible Level Transmitter

---

Caractéristiques principales

• Separate construction; full sealed stainless steel construction for submersible/inserted sensor; aluminumalloy electric connection box; easy for installation, wiring and calibration;
• Explosion-proof version product conforms to Exia Ⅱ CT6 of Standard GB3836.4; Explosion-proof Certificate is issued
• Ship-use product conforms to CCS Rules of Classification of Sea-going Steel Ships(2006); Ship-use Product Certificate is issued;
• CE Certificate

---

About the MPM416W Intrinsically Safe Submersible Level Transmitter

MPM416W Submersible Level Transmitters use high performance piezoresistive pressure sensor as a sensing element. It measures liquid static pressure accurately which is positive proportional to liquid depth, transmitting pressure signal into standard current/voltage output signal by amplifier circuit board. The product has high accuracy, compact size and easy operation characteristics, and it can be submerged into liquid to measure level from transmitter bottom to liquid surface. This transducer is widely used for the liquid measure and control of both petroleum, chemicals industry, power station, city water supply and drainage and hydrology. This product has a two versions: one with two wire transmitting and one with three wire transmitting.

---
