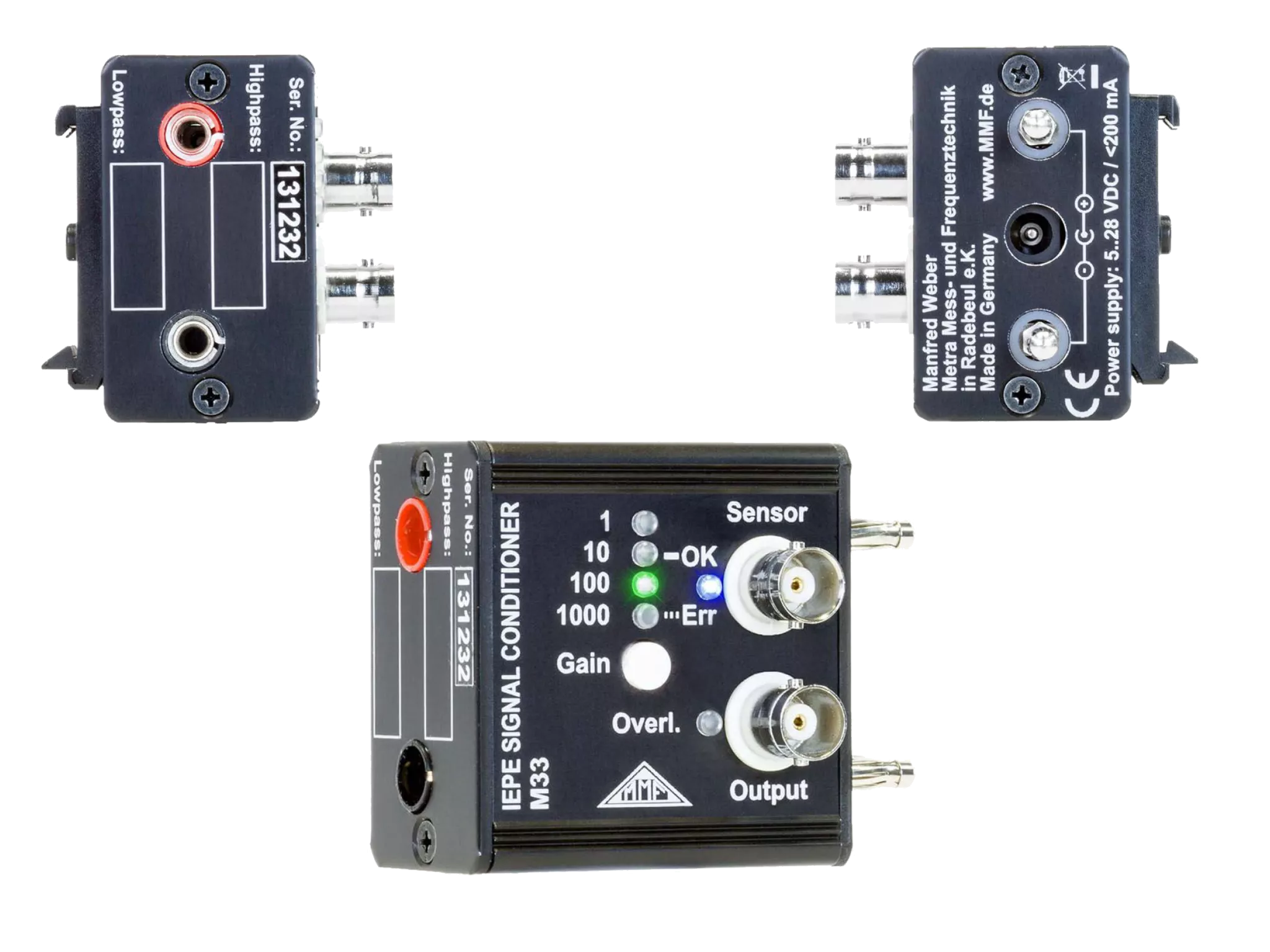

VIB-M33 amplifier module

---

Key features

• For piezoelectric sensors with IEPE output
• DIN rail mounting
• Stackable modules: Contact pins that can be screwed in at the side provide thepower supply and mechanical connection to the neighboring module
• Input and output via BNC sockets
• Filtering and integration with plug-in modules
• Gain adjustment via front keys

---

About the VIB-M33 amplifier module

Application

• Signal conditioning for dynamic measurements with IEPE transducers for acceleration, force, pressure or IEPE microphones
• Multichannel systems
• Suitable for industry, laboratory and field due to compact design and wide supply voltage range
• Amplification and anti aliasing filtering for applications in data acquisition systems
• High pass filtering and single or double integration for vibration velocity or displacement

Properties

• Modular system
• Two plugs in the sidewall provide mechanical and power supply connection to the neighboring unit
• Mounting adapter for 35 mm DIN rails optionally available
• Rugged and compact aluminum case
• Sensor status LED indicates three conditions: OK, cable break and shorted sensor cable
• Four gain ranges: 1; 10; 100; 1000; selectable with push button
• Replaceable high pass and low pass filter or single / double integrator plug-in modules
• Powered by DC voltage via circular DIN 45323 connector or two 4 mm banana sockets at the sidewall
• Wide supply voltage range, also from USB voltage
• Insulation between signal ground and power supply voltage avoids grounding problems
• Flexible and economic

---
