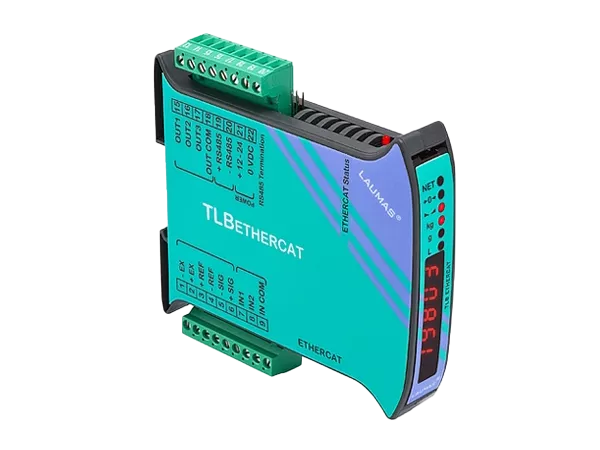

TLB EtherCAT Digital Amplifier
Digital amplifier | Indicator for load cells
About the TLB EtherCAT Digital Amplifier
Weight amplifier and indicator for Omega/DIN rail mounting suitable for back panel; space-saving vertical shape.
Key features TLB EtherCAT
- Six-digit semialphanumeric display (8mm h), 7 segment LED
- Four buttons
- Dimensions: 25 x 115 x 120 mm
The instrument is equipped with two communication ports:
- Slave EtherNet/IP port
- RS485 for connection to:
-
- - PC/PLC up to 32 instruments (max 99 with line repeaters) by ASCII Laumas protocol (compatible with W60000) or ModBus RTU Protocol
- - Remote display
Theoretical calibration by using buttons.
Do you need this sensor for your next project?
Request a quotation today or leave your details to recieve more information from one of our experts.
Product downloads
Have it your way
Not exactly what you’re looking for? We offer standard sensors but can also help you with a tailor-made sensor or a complete measuring solution. Please contact us for advice or budgetary pricing.
Talk to an expertTechnical Specifications
Specification | Value |
---|---|
A/d converter | 24 bit (16000000 points) 4.8 kHz |
Digital filter / conversion rate | 0.060 - 7 s / 5 - 300 Hz |
Divisions, max | ±999999 |
Ethercat port | 2x RJ45 isolated 100Base-TX (Mbps) with integrated switch |
Linearity | <0.01% FS |
Logic inputs | 2x - optoisolated 5 - 24 VDC PNP |
Logic relay outputs | 3x - max. 115 VAC / 150 mA |
Number of load cells (parallel and supply) | max. 8 (350 Ω); 5 VDC / 120 mA |
Power supply and consumption | 12 - 24 VDC ±10 %; 5 W |
Rs485 port - baud rate | 2400, 4800, 9600, 19200, 38400, 115200 |
