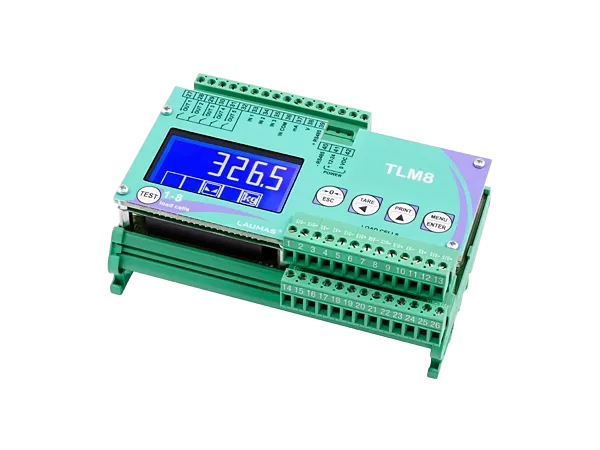

About the Digital Amplifier TLM8

Weighing system with 8 independent reading channels for load cells. The TLM8 transmitter allows to have same benefits and performance of an advanced digital weighing system even using analog load cells. The Omega/DIN rail mounting sis uitable for back panel or junction box.

Key features Digital Amplifier TLM8

Dimensions: 148 x 92 x 60 mm
Backlit graphic LCD display, transmissive STN, white on blue, 128 x 64 pixel resolution, 60 x 32 mm visible area
Five-key keypad for the system calibration
TEST key for direct access to the diagnostic functions
Extractable screw terminal boards

Input/Output and Fieldbusses

Analog output 16 bit
3 logic inputs
5 logic relay outputs
RS485 serial port for connection to PC/PLC, remote display and printer
ModBus RTU or ASCII Laumas protocol

Do you need this sensor for your next project?

Request a quotation today or leave your details to recieve more information from one of our experts.

Talk to an expert

Product downloads

Tlm8 digital amplifier en pdf

Have it your way

Not exactly what you’re looking for? We offer standard sensors but can also help you with a tailor-made sensor or a complete measuring solution. Please contact us for advice or budgetary pricing.

Talk to an expert

Technical Specifications

Specification	Value
(thermal drift of the analog output)	(<0.003% FS/K)
A/d converter	8 channels - 24 bit (16000000 points) 4.8 kHz
Analog output (only for tlm8)	16 bit, 0 - 20 mA; 4 - 20 mA (max 300 Ω); 0 - 10 V; 0 - 5 V (min. 10 kΩ)
Baud rate	2400, 4800, 9600, 19200, 38400, 115200 bit/s
Digital filter / conversion rate	0.006 - 7 s / 5 - 600 Hz
Divisions	max. 999999
Divisions (ce-m approved)	max 3x 10000e
Linearity (linearity of the analog output)	<0.01% FS (<0.01% FS)
Logic inputs	3x optoisolated 5 - 24 VDC PNP
Number of load cells	max. 16 (350 Ω)
Power supply and consumption	12 - 24 VDC ±10 %; 5 W
Relay logic outputs	5x max. 115 VAC/150 mA
Serial port	RS485
Thermal drift	<0.0005 % FS/K
