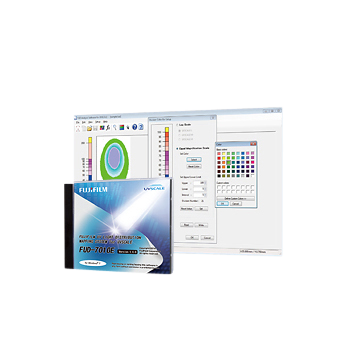

FUD-7010E Fujifilm UV-scale Software
UV-light distribution mapping system
About the FUD-7010E Fujifilm UV-scale Software
UV Light Distribution Mapping System FUD-7010E
Management by converting colors into numeric values with analysis systems.
In this system, exclusive analysis software is used along with a usable scanner. The system makes it possible to scan color of UV scales, convert it into UV light amount values, analyze UV light amount distribution, and save them.
Features FUD-7010E
- UV-light distribution mapping system
- Including software, dedicated cover and calibration sheet
- Analyzing UVSCALE images (measuring accumulated light amount, displaying light amount distribution, saving data, data export)
Advantages of management with numerical values
Analysis
The Separation accuracy of density can be improved, so sections that cannot be visually judged can be analyzed.
Standardization
Internal inspection standards can be set.
Sharing
Analysis results can be shared
Data saving
Digitizing data makes it possible to compare it to past data.
Do you need this sensor for your next project?
Request a quotation today or leave your details to recieve more information from one of our experts.
Have it your way
Not exactly what you’re looking for? We offer standard sensors but can also help you with a tailor-made sensor or a complete measuring solution. Please contact us for advice or budgetary pricing.
Talk to an expertTechnical Specifications
Specification | Value |
---|---|
Items included | Exclusive software (CD- ROM), Dedicated cover, Calibration sheet |
Main functions | Analyzing UVSCALE images (measuring accumulated light amount, displaying light amount distribution, saving data, data export) |
Measurable uv lamp | High-pressure mercury lamp, metal halide lamp, low-pressure mercury lamp, UV-LED (365 nm) |
Model | FUD-7010E |
Product name | Fujifilm uv light distribution mapping system for UVSCALE |
Resolution | 0.125mm |
Scan sizes | Depending on the scanner used |
Usable uvscale | UVSCALE L, UVSCALE M, UVSCALE H |
