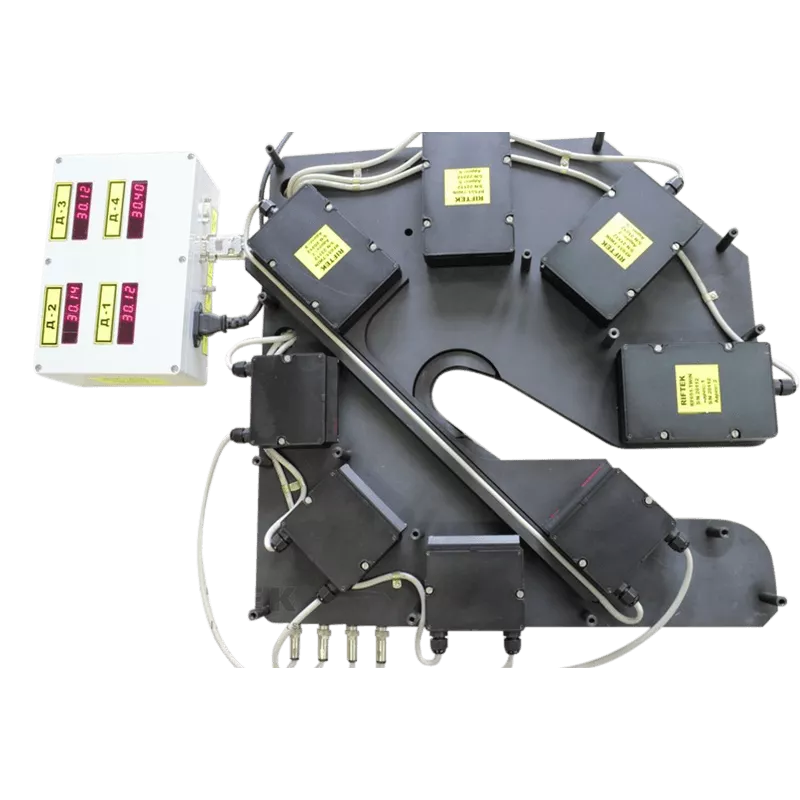

FKD-KB Diameter Measurement System
For control of diameter of cables
About the FKD-KB Diameter Measurement System
The systems are intended for in-process non-contact measurement, control and regulation of diameter of various objects (wire, hoses, tubes, rods, sausage casings, etc.)
Features FKD-KB
- Measurement range: 20 to 60mm
- Accuracy: ±20 µm
- Number of axes under control: 4
Applications for FKD-KB
- Control of diameter of cables
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | ±20 µm |
| Distance between receiver and emitter | 280mm |
| Enclosure rating | IP67 |
| Housing material | Aluminum |
| Laser safety class | 1 (IEC60825-1) |
| Light source | Red semiconductor laser |
| Measurement range | 20 to 60mm |
| Measuring rate | 100Hz |
| Number of axes under control | 4 |
| Operation temperature | -10 to 60°C |
| Output interface | RS485 (maks. 115200 bit/s) |
| Power consumption | 10W |
| Power supply | 12V |
| Relative humidity | 35-85% |
| Vibration | 20g/10 to 1000Hz, 6 hours for each of XYZ axes |
| Weigh (without cable) | 16kg |
