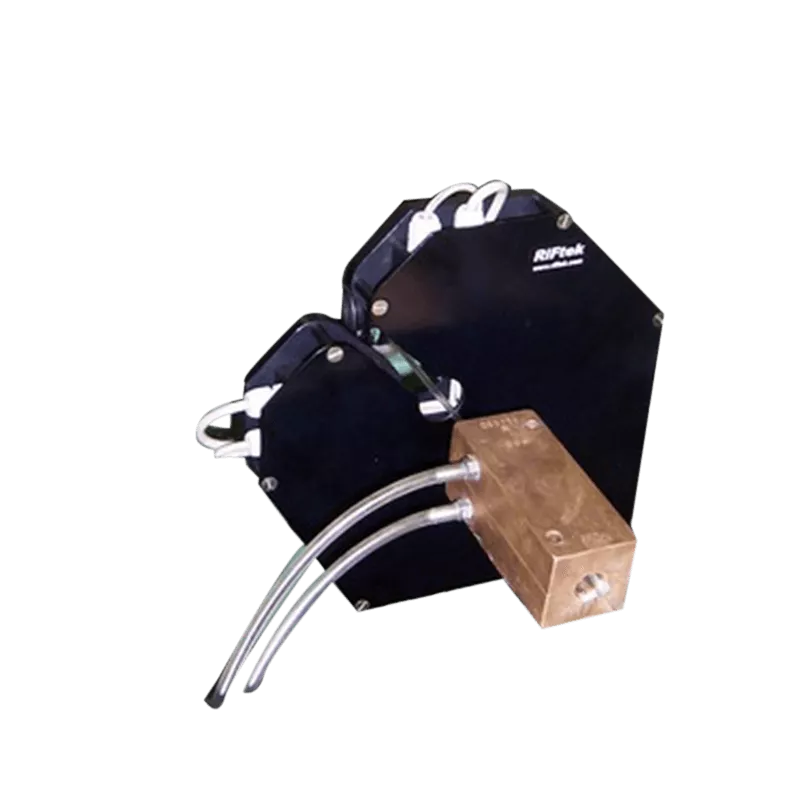

FKD-MSh Diameter Measurement System
For control and regulation of diameter of medical tubes
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | ±10 µm |
| Distance between receiver and emitter | 100mm, L |
| Enclosure rating | IP67 |
| Measurement range | 25mm |
| Number of axes under control | 2 |
| Operation temperature | -10°C to 50°C |
| Output interface | RS485 |
| Power consumption | 1,5W |
| Power supply | 220V |
| Regulator type | PID |
| Speed, measurements/s | 1000 |
