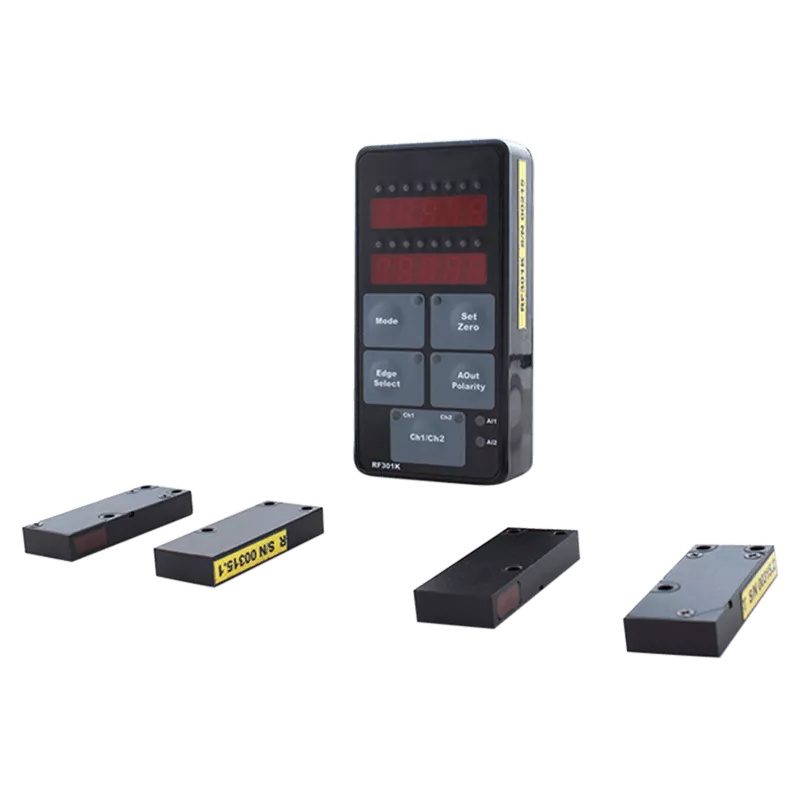

FDRF659 Edge Position Measurement
For non-contact measuring and monitoring the position of the edges of various objects, such as tapes, plates and substrates
About the FDRF659 Edge Position Measurement
The sensors are intended for non-contact measuring and monitoring the position of the edge (edges) of various objects, such as tapes, plates, substrates, etc.
Features FDRF659
- Measurement range: 7mm
- Accuracy: ±20 µm
- Repeatability: ±1 µm
- Distance between transmitter and receiver: 30mm
Title CTA
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | ±20 µm |
| Distance between transmitter and receiver | 30mm |
| Enclosure rating | IP40 |
| Housing/window material | Aluminum/glass |
| Light source | LED |
| Measurement range | 7mm |
| Operating temperature | -10°C to 60°C |
| Power consumption (transmitter/receiver) | 0.5W |
| Power supply | 5V |
| Relative humidity | 5-95% |
| Repeatability | ±1 µm |
| Shock | 30g/6ms |
| Temperature dependence | 0.1% range/°C |
| Vibration | 20g/ 10 - 1000Hz, 6 hours, for each of XYZ axes |
| Weight (without cable) | 30gram transmitter, 30gram receiver |
