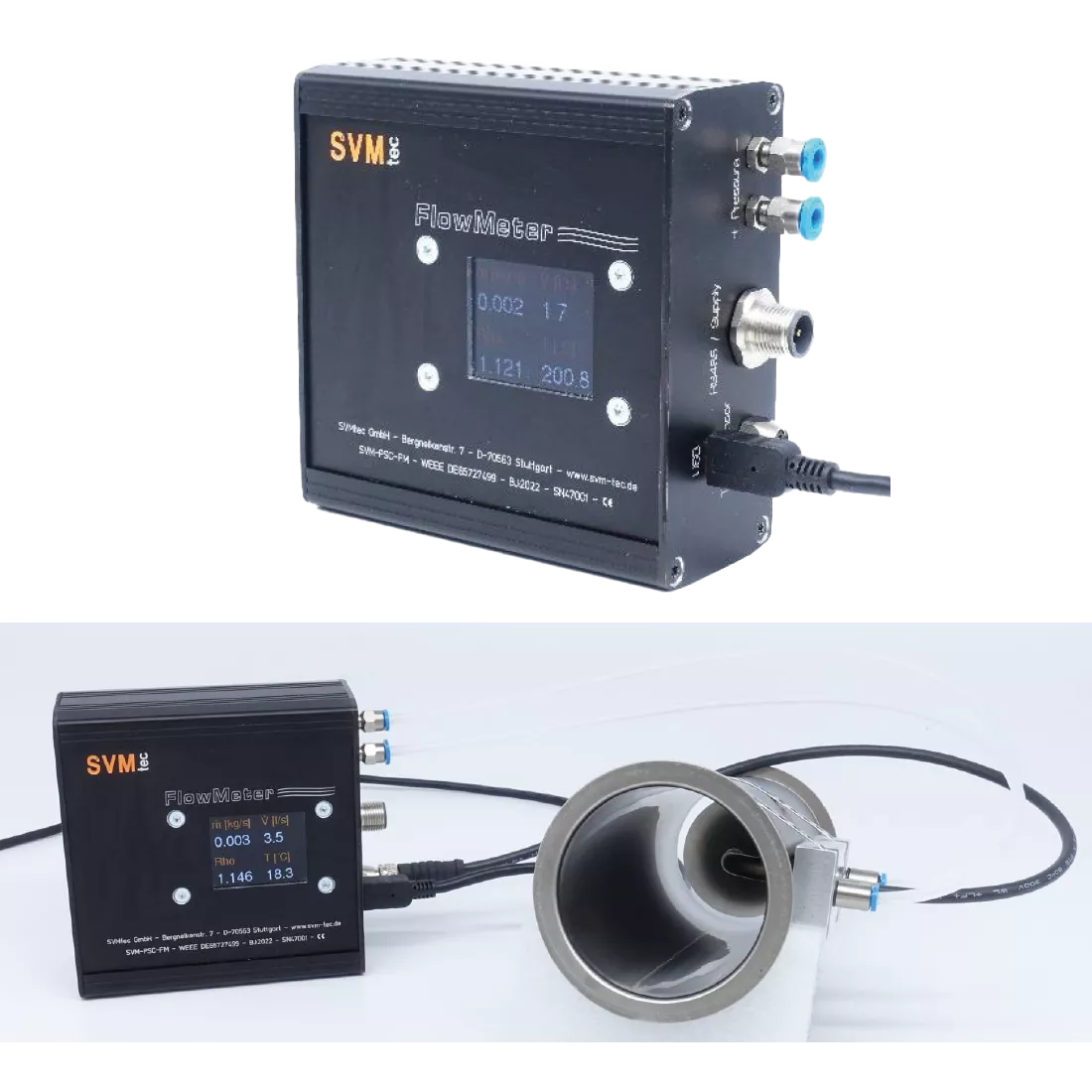

FlowMeter
Volume flow meter for differential pressure transducer
Key features
- Measuring range 600 to 1100 hPa (mbar)
- Temperature -40 to 100°C
- Sampling rate 0.5 to 25Hz
About the FlowMeter
The measuring device is suitable for determining the operating volume flow and the mass flow in conjunction with a differential pressure sensor, such as
- Venturi nozzle
- V-cone
- Orifice plate
- Pressure probe
The necessary parameters can be set using a configuration programme. The device can also be purchased pre-configured together with a measuring tube.
The following sizes are measured:
- Differential / differential pressure
- Absolute value of the static pressure
- temperature
- Humidity (ambient air)
The following variables are calculated from the sensor data:
- Density
- Operating volume flow
- Mass flow
The calculated and measured variables are output via the interface. The following variables are shown on the display:
- Mass flow
- Volume flow
- Density
- Temperature
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Differential pressure/measuring range | 0 to 15 kPa |
| Sampling rate | 0,5 to 25Hz |
| Barometric pressure (absolute pressure)/measuring range | 600 to 1100 hPa (mbar) |
| Uncertainty | ±2 hPa |
| Temperature/measuring range | -40 to 100°C |
| Uncertainty | ±1 °C |
| Humidity/measuring range | 3 to 97% |
| USB | No external power supply required |
| RS485 | 9-24 VDC |
| Ambient conditions/temperature | 5° C…50° C |
| Housing | 125 x 105 x 48 mm (W x H x D) Envelope end |
| USB interface | Micro-USB |
