TSC12-ISO

Measuring device for the acquisition of 12 thermocouples

View technical specifications

Key features

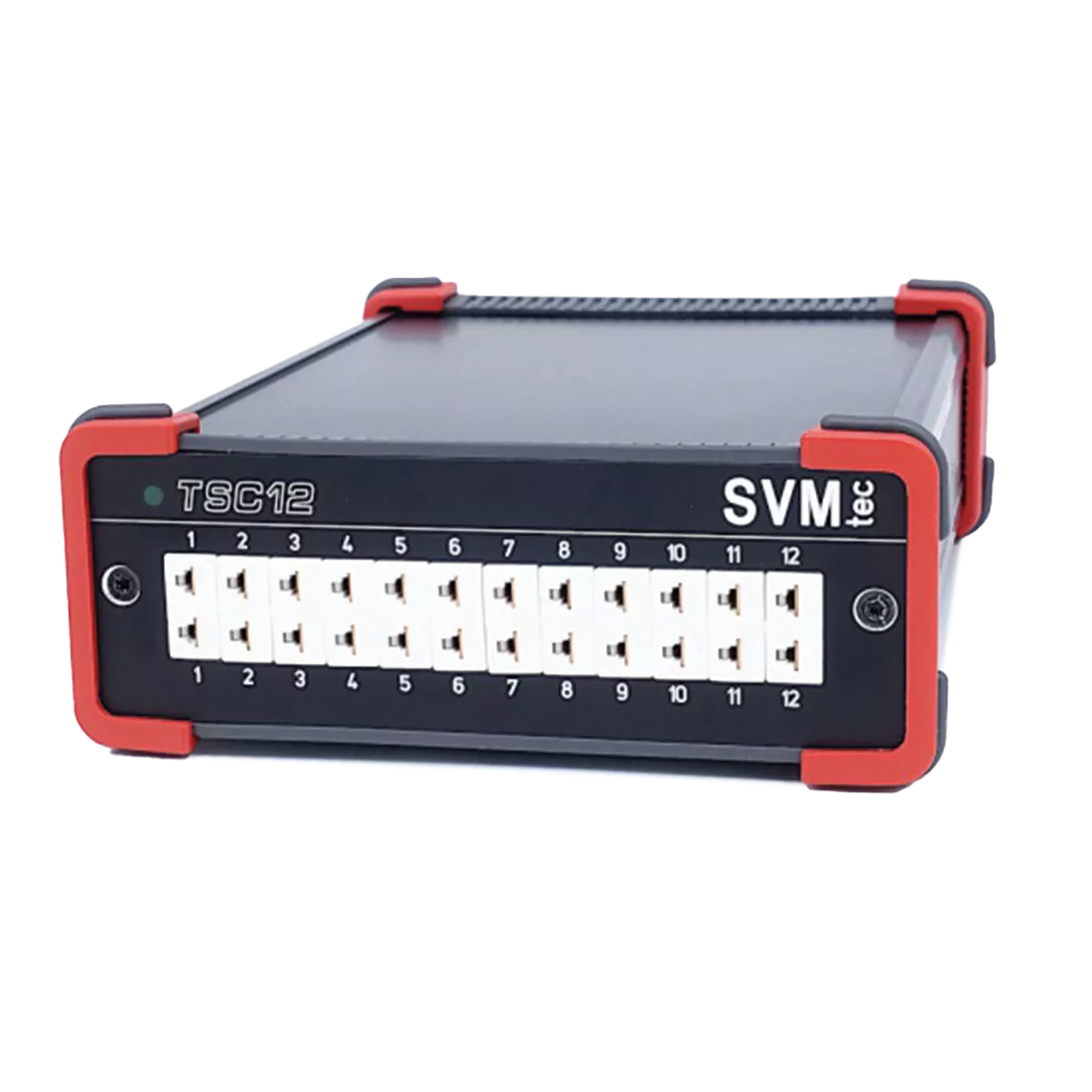

  • 12 galvanically isolated inputs
  • Sampling rate up to 100Hz
  • One 24bit AD converter per channel

About the TSC12-ISO

The temperature loggers of the TSC series are suitable for simultaneous monitoring of twelve thermocouple temperatures with high requirements regarding accuracy. Thermocouple connection types can be selected individually according to customer specifications, whereby all channels are equipped with the same sensor types.

Optional universal copper sockets can be selected for optimal flexibility, where each channel can be config-ured individually.

Data transmission is via USB as standard.

The TSC12-ISO series has 12 galvanically isolated inputs, making it possible to measure with thermocou-ples attached to electrically conductive materials.

The conversion of the analog voltages is done by high precision 24bit AD converters with a sampling rate of up to 100Hz.

All common types (K, T, J, B, E, N, R, S) are supported. Depending on the type, temperatures from -270°C to 1820°C can be processed and monitored.
Measurements in the mV range are possible as well.

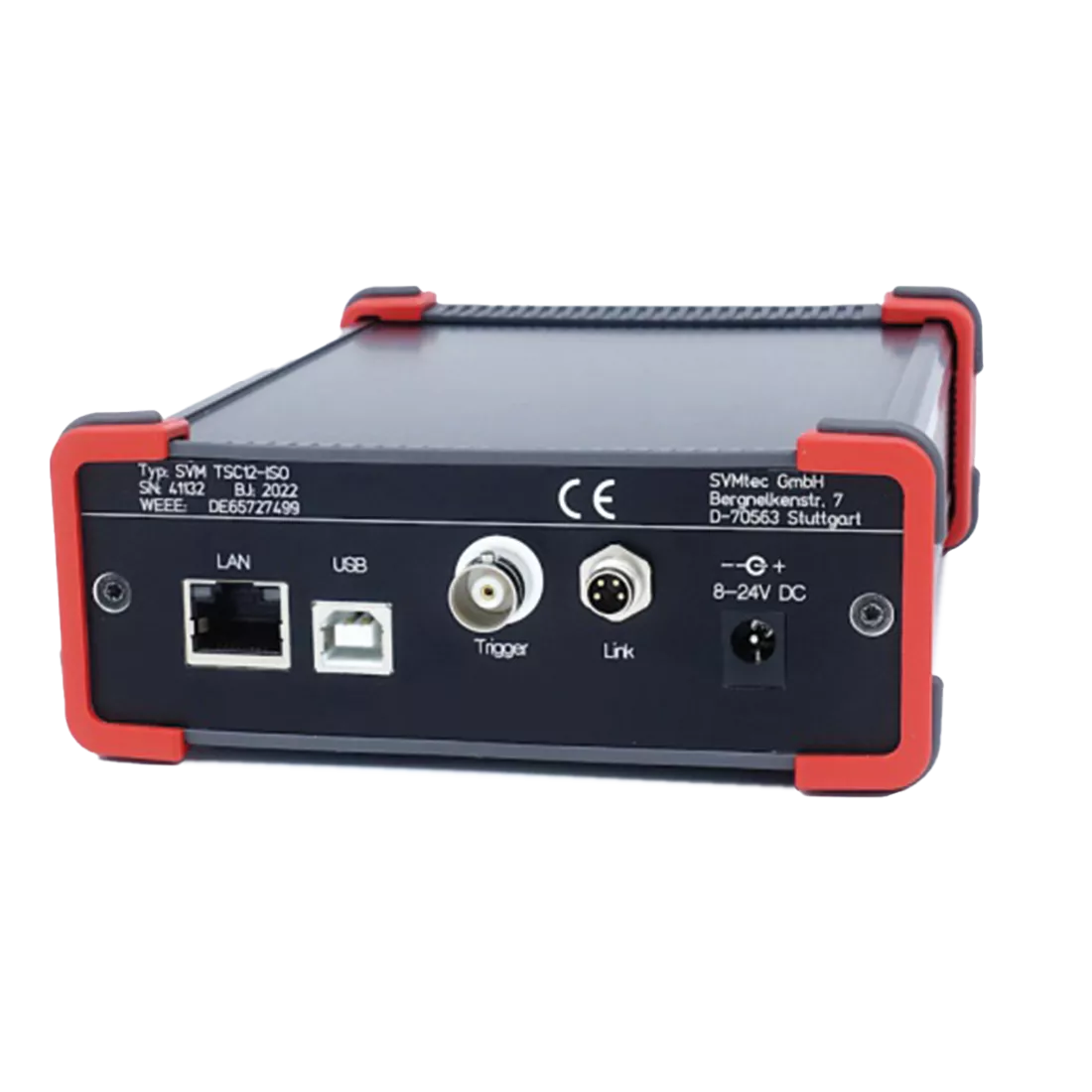

All TSC12 temperature scanners are optionally available with Ethernet (LAN), RS232 or CAN interface. When transmitting data via a CAN bus, several CAN devices can be cascaded so that test scenarios with a very high number of temperature measuring points can be implemented.

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Request a quotation

Always the right sensor solution.

  • Free and independent advice for your application
  • Tailor-made offer
  • Development of standard and customised solutions
  • Fast response time

TSC12-ISO

Terms and conditions
 Talk to an expert

Product downloads

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy +/- 0.5K (with copper sockets 0.5% FS)
Sample rate per channel 1-100Hz
Resolution (internal) 24-bit
Power Supply TSC12 via USB / TSC12-LAN/-CAN 8-24V, 0.5A
Temperature 5°C...50°C
Humidity 0...95%, non-condensing
Housing 130 x 55 x 170 mm (B x H x T)
Options All TSC systems can optionally be equipped with CAN bus, LAN or RS232
