FPRP-HA Portable Laser Rail Profilometer
For high accuracy measurements of the rail profile
About the FPRP-HA Portable Laser Rail Profilometer

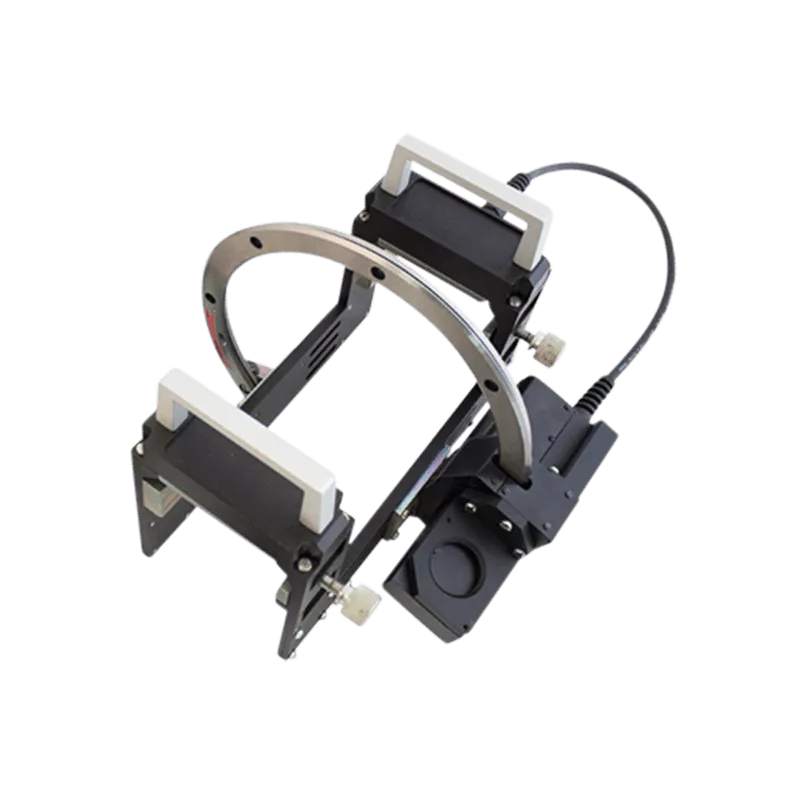

The Rail profile measuring gauge is a portable laser developed for contactless analysis of rail head profile and measurement of rail wear parameters. To convert and visualize the measured data, the measuring gauge connects to a PDA. The rail profile measuring set includes database software and a PDA. Wear range from -5.0 up to 14.0mm (vert), -5.0 up to 18.0mm (lat) and up to 14.0mm (reduced).
This version is a high accuracy variant of the regular FPRP portable laser rail profilometer.
Function FPRP-HA
- Obtaining information of the cross-section profile of the working railhead surface
- Full profile scanning and analyze of the railhead acting face
- Visualization of the combined graphical images of actual and new crosssection
Including PDA & Software
Operation
Operator mounts the laser scanning module onto the railhead to be measured.
After receiving a command from PDA or PC, the laser module performs a non-contact measurement of the rail surface. Measurement results (geometric parameters and profile of the surface) are displayed on PDA, these can be saved in the PDA memory and transferred to the PC database. Simultaneously, additional parameters can be saved: date, operator number, permanent way division, track number, rail type, etc.
Do you need this sensor for your next project?
Request a quotation today or leave your details to recieve more information from one of our experts.
Have it your way
Not exactly what you’re looking for? We offer standard sensors but can also help you with a tailor-made sensor or a complete measuring solution. Please contact us for advice or budgetary pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Digital readout device (pda) dimensions | 112,5mm х 95,5mm х 22,7mm |
| Inaccuracy, not more than | ±0.1mm |
| Interface to pc | Bluetooth |
| Laser module dimensions | 293mm x 230mm x 230mm |
| Lateral railhead wear | -15,00 to +20,0mm |
| Pda memory capacity, no less | 100.000 measurements |
| Power supply, laser module | 3,7V - Li-ion battery, 6800mAh |
| Power supply, pda | 3,7V - Li-polymer battery, 3300mAh |
| Railhead vertical wear | -15,0mm to +20,0mm |
| Redused railhead wear | Up to 20,0mm |
| Scanning angle inside the rail track | 108 degrees |
| Scanning angle outside the rail track | 108 degrees |
| Scanning time | 10-12sec |
| The number of measurements that can be taken before battery recharge is not less than | 500 |
