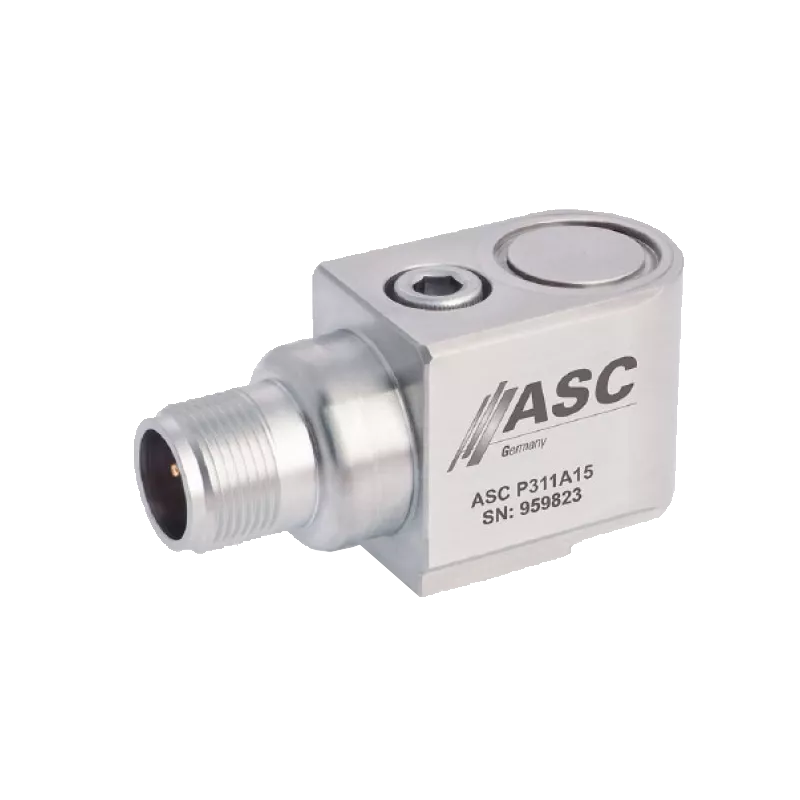

ASC P311A15 Industrial piezoelectric accelerometer
Uniaxial IEPE accelerometer with side connector and wide frequency response, built for reliable vibration measurements in harsh industrial environments.
Key features
- Wide measurement range up to ±800 g and 12 kHz bandwidth
- High shock resistance (up to 5000 g) and stainless steel IP68 housing
- Side-entry connector with detachable cable for easy installation
Performance
The ASC P311A15 is a uniaxial industrial accelerometer sensor based on the piezoelectric compression principle, offering precise vibration measurements across a wide frequency spectrum. With its integrated IEPE electronics, it delivers a dynamic analog voltage signal, making it ideal for high-frequency applications like condition monitoring and shock testing.
Usage conditions
This accelerometer features a rugged stainless steel housing with IP68 protection, ensuring durability in challenging environments. It withstands extreme temperatures from -55 °C to +140 °C and shocks up to 5000 g. A 2-pin MS side connector and detachable cable allow for flexible setup and maintenance.
Possible applications
- Vibration monitoring in rail vehicles
- Structural health monitoring in wind turbines
- Impact testing in heavy machinery
- Condition monitoring in industrial plants
Advantages of choosing this product
The ASC P311A15 combines high sensitivity with robustness, offering a wide frequency response from 1.5 Hz to 12 kHz (±10%) and selectable sensitivities from 10 to 500 mV/g. Its low noise (<100 μg) and high output signal (±8 V) make it reliable for both low- and high-amplitude measurements. The flexible mounting (glue, thread, socket) and detachable cable make it easy to integrate in diverse setups, reducing installation time and cost.
Other important features
- IEPE (Integrated Electronics Piezo-Electric) output
- Operates on 18–30 V constant current
- Optional mounting accessories available
- Complies with industry vibration testing standards
Options
- Customised Cable Length
- Metric Mounting Studs
- ±5% Tolerance on Sensitivity (Precision Models)
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Measurement range | ±16 g to ±800 g |
| Sensitivity | 10 – 500 mV/g |
| Frequency response (±10%) | 1.5 Hz – 12,000 Hz |
| Noise level | <100 μg |
| Shock resistance | 5000 g |
| Operating temperature | -55 °C to +140 °C |
| Housing | Stainless steel, IP68 |
| Connector typee) | Side connector (2-pin MS) |
| Mounting options | Glue, thread (UNF or metric), socket |
| Output type | Analog voltage, IEPE |
| Supply voltage | 18 – 30 V |
| Weight | 185 g |
