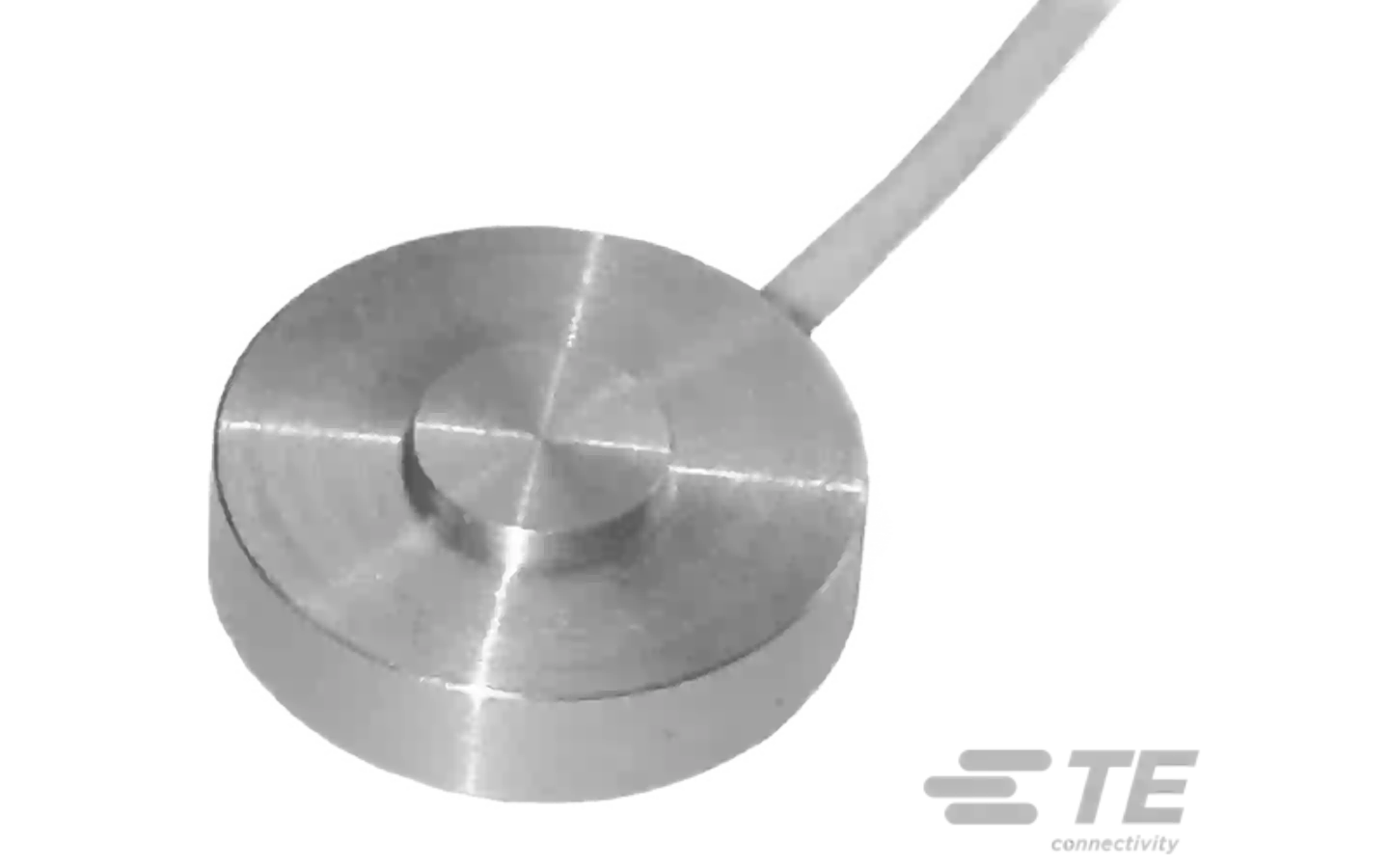

XFL212R Miniature Force Sensor
Extraordinarily thin miniature load cell
Performance features
The XFL212R is an ultra-compact compression load cell designed for precise force measurements in both static and dynamic applications. Thanks to the integrated temperature compensation in the cable, measurements remain stable even under varying temperature conditions. The spherical load button prevents off-axis loading and improves measurement accuracy.
Operating conditions
- Operating temperature: -40°C to +120°C
- IP50 protection rating
- Integrated Wheatstone bridge with silicon strain gauges
Application areas
- Assembly tools for microcomponents
- Test and measurement setups
- Robotics and mechatronics
- Medical equipment
- Laboratory environments and R&D
Product benefits
- Exceptionally small size for integration in confined spaces
- High reliability at low forces
- Optimized for precision applications
- Long service life thanks to robust material selection
Other important features
- Signal under compression is negative
- Aluminium or stainless steel, depending on measuring range
- Up to 3x overload without damage
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | ±1% of FS |
| Diameter | Only 12 mm [0.49”] |
| Extremely flat | 3,5 mm [0.14”] |
| Force introduction | Integrated spherical load button |
| Load direction | Compression |
| Measurement range | 5N, 10N, 20N, 50N, 100N, 200N, 500N |
| Operating temperature | -40 – 120°C |
| Output signal | ±100 mV |
| Sealing | IP50 |
