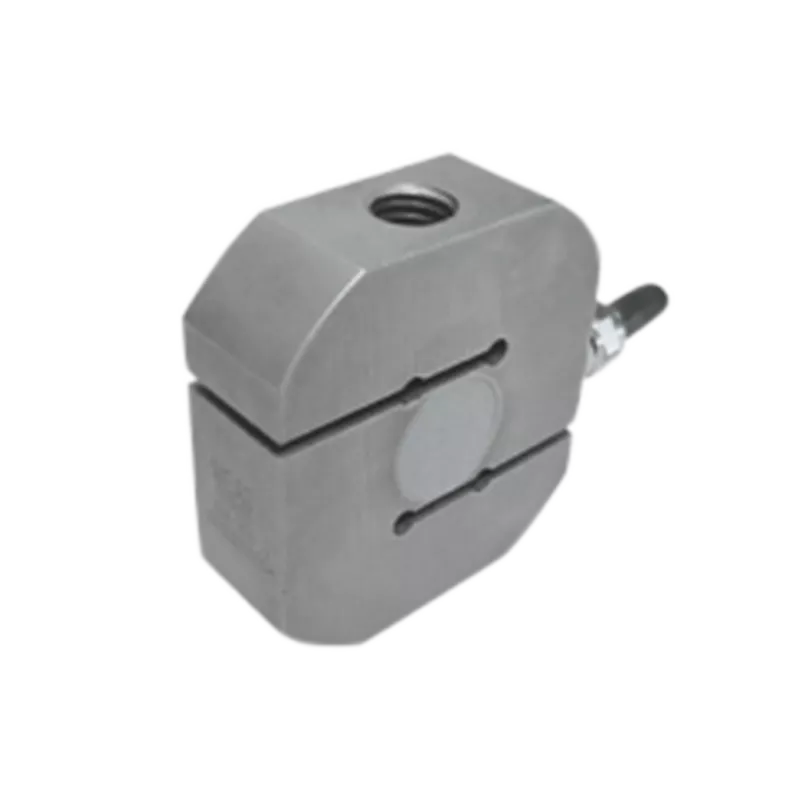

FN9620 S-beam Force Sensor
IP68-1m water column
Key features
- High tensile strength Stainless Steel
- Metric or Imperial thread
- Surcharge sans destruction 300%
- Safe over load 300%
- 3 meters Integral cable
- IP68 - 1m water column
Applications for the FN9620 S-beam Force Sensor
- Structure Testing
- Test Benches
- Process Control & Automation
- Mechanical resistance of materials
- Laboratory and Research
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | 0.5% FS |
| Load direction | Tension, compression |
| Material | Stainless steel |
| Output signal | ±1 mV/V, ±2 mV/V |
| Protection | IP68 |
| Ranges | 500N - 10kN |
| Temperature operating range | -40 to 90°C |
