CRM100 | CRM200 Gyroscope

---

Abouth the CRM100 | CRM200 Gyroscope

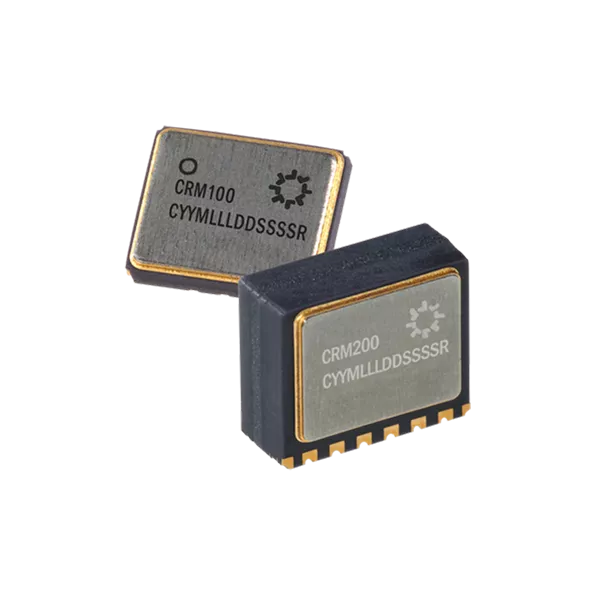

PinPoint^® is the smallest MEMS gyro in our product range of low cost precision navigation and pointing gyros. Available in both flat (CRM100) and orthogonal (CRM200) versions PinPoint^® offers class-leading bias and noise over temperature, user selectable dynamic ranges and bandwidth with analogue and digital outputs. Featuring a hermetically-sealed ceramic LCC surface mount package.

Key features CRM100 | CRM200

• Small (5.7 x 4.8 x 1.2mm)
• Proven and robust silicon MEMS vibrating ring gyro
• Low bias instability (12º/hr) over short integration period (<1s)
• Low Angular Random Walk (0.2º/√hr)
• In-plane and orthogonal sensing options (CRM100 and CRM200)
• Analogue and Digital (SPI®) output modes
• 3V nominal supply (2.7 - 3.6V range)
• Low power consumption (4mA)
• High shock and vibration rejection
• Hermetically sealed ceramic LCC surface mount package for temperature and humidity resistance
• Integral temperature sensor
• Low integration cost
• Design tools and resources available
• RoHS compliant
• AEC Q100 tested Applications
• Automotive in-car navigation
• Precision GPS vehicle and personal navigation aiding
• Vehicle yaw, pitch and roll rate sensing
• Gesture sensing
• Motion tracking
• Pointing devices Precision agriculture
• Antenna stabilisation
• Industrial and robotics

Applications CRM100 | CRM200

• Automotive in-car navigation
• GPS vehicle and personal navigation aiding
• Vehicle yaw, pitch and roll rate sensing
• Gesture sensing
• Motion tracking
• Pointing devices
• Precision agriculture
• Antenna stabilisation
• Industrial and robotics

---
