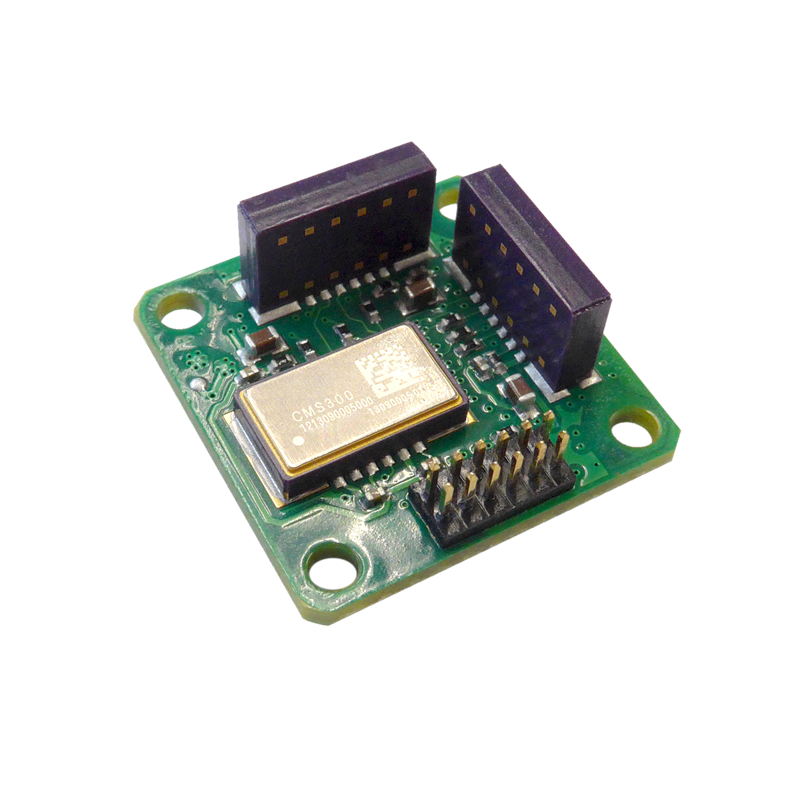

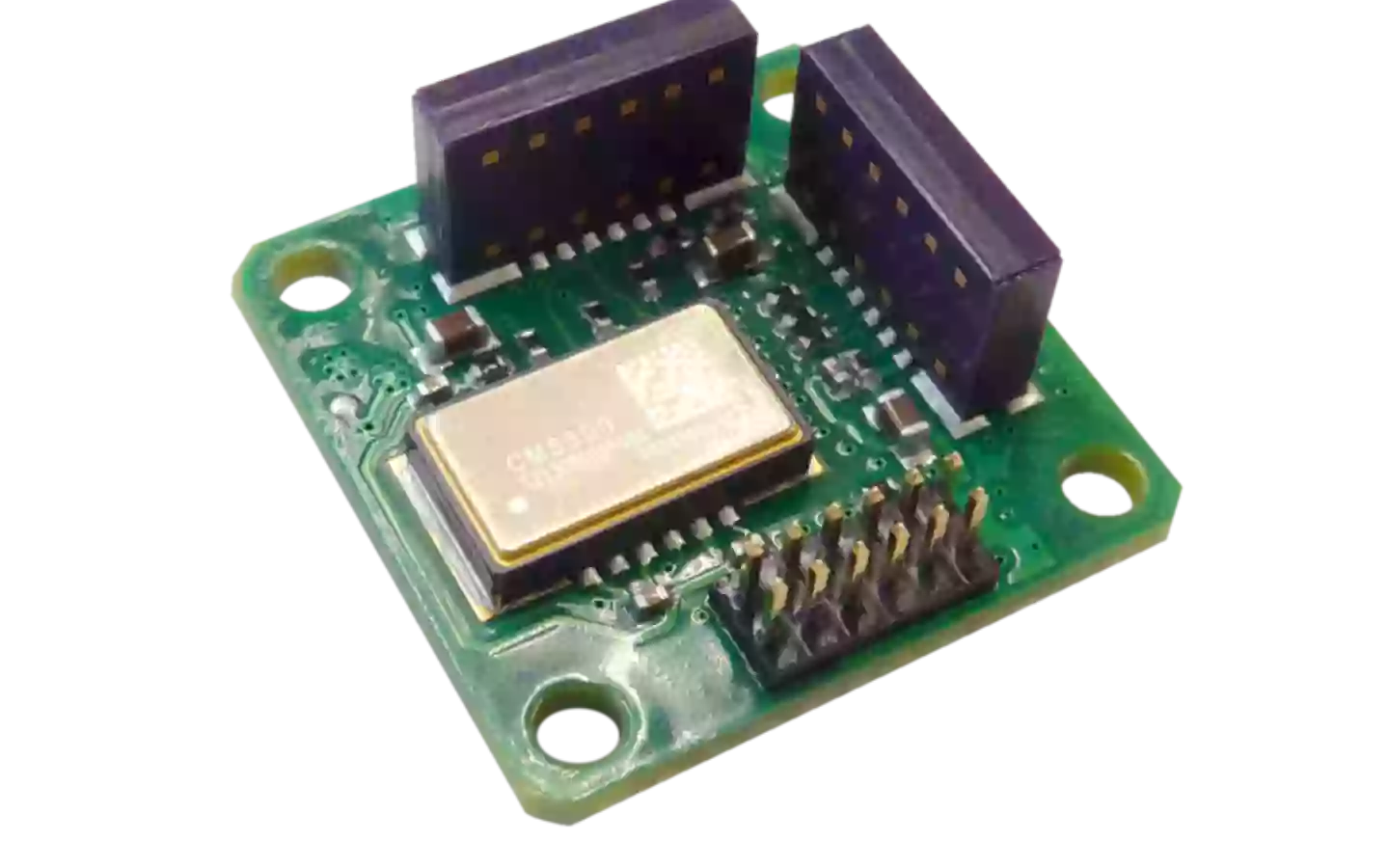

About the DMU11 Inertial System

DMU11 combines MEMS angular rate and linear acceleration sensors to create a precision, low-cost, six-degrees-of-freedom (6-DOF) IMU for complete motion sensing and control in three-dimensional space. However DMU11 features a redesigned layout to minimise physical space, for applications where space is at a premium. DMU11 is suitable for a wide range of applications and is calibrated over the full rated temperature range.

Key features DMU11

High performance six degrees of freedom (6-DOF) low cost MEMS IMU
7 sensor outputs
- Angular rate (x3)
- Linear acceleration (x3)
- Temperature
Dynamic Range ±300°/s and ±10g
Bias instability <10°/hr and 0.05mg
Random Walk <0.4°/√hr and 0.05m/s/√hr
Small (22 x 22 x 10.6mm)
3.2 to 5.25V Supply
Wide operating temperature range -40°C to +85°C
RS-422 Interface
RoHS and REACH compliant

Applications DMU11

Machine control
Antenna and Platform Stabilisation
Precision Agriculture
Autonomous Vehicles and ROVs
Attitude Measurement Systems
Personal Navigation
GPS Aiding

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Product downloads

Dmu11 inertialsensor en

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification	Value
Accuracy	±3 °C
Axes of acceleration	3
Axes of angular rate	3
Bias over temperature	±0.25 °/sec
Bias over temperature	±10mg
Current consumption	85mA
Dynamic range	±300°/s
Dynamic range	±10g
Operating temperature	-40°C to +85°C
Range	-45 to +100ºC
Sf over temperature	±0.1%
Sf over temperature	±0.1%
Supply voltage	5.0V
