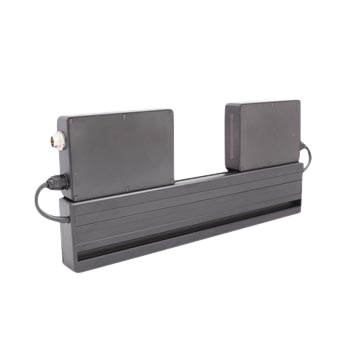

FDRF651 Optical Micrometer
Direct through beam micrometer
Key features
- Measurement range: 25, 50, 75, 100mm
- Linearity starting at ± 5µm
- Fast measurement response
- Up to 1000mm distance transmitter-receiver
- Analogue and digital output
- IP67 enclosure
About FDRF651 Optical Micrometer
Direct thru-beam micrometer, long distance between receiver/transmitter
Optical Micrometers: Laser/LED based for diameter, edge and gap measurement
Optical Micrometers are devices providing non-contact measurement of diameter of wires, rods and cylinders as well as gaps, edge positions and other dimensional characteristics of geometric objects. Althen offers both laser and LED based optical micrometers.
These micrometers determine with high precision the dimension and position of an object by using the "shadow" measurement principle. Collimated laser light (the rays are parallel) is transmitted by the system lens arrangement towards a receiver. The edges of the shadow in the beam’s curtain are accurately measured in the receiver’s detector array.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | ±3-20µm |
| Enclosure rating | IP67 |
| Housing material | Aluminum |
| Light source | LED or laser |
| Measurement range | 25 - 100mm |
| Sample frequency | 2kHz, 10kHz |
| Signal output | RS232, RS485, Ethernet, 4-20mA, 0-10V |
