ACCUMEASURE MICROCAP Capacitive Position Sensor
A compact, custom designed, OEM capacitance system for high-precision non-contact measurement
Key features
- Sub-nanometer resolution
- Extremely high stability
- Fast response time
- Compact
- Custom designed
- Cost-effective

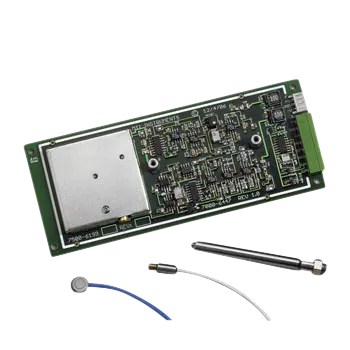

Accumeasure MicroCap - Standard Board Level (for OEM integration)
Althen offers cost-effective OEM amplifier solutions for high volume applications that meet your exact requirements. Our experienced engineers will work together with you in reviewing all aspects of your application and tailor a cost-effective board level amplifier and probe solution.
The Accumeasure MicroCap is a compact, custom designed, OEM capacitance system for high-precision non-contact measurement. It provides exceptional value and offers sub-nanometer resolution, extremely high stability and fast response time, making it ideal for micro-positioning, thermal correction, focusing and closed loop control applications.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy (% of full scale) | ±0.02 |
| Analog output 0-10vdc | Euro screw terminals |
| Dimensions | 150x60x13mm |
| Frequency response | Component selectable |
| Measurement range | 0 to 12.5mm |
| Number of channels | 1 |
| Operating temperature | 4 to 38°C (40 to 100°F) |
| Output impedance | 50Ω |
| Power requirements | ±15VDC |
| Resolution (% of full scale) rms | 0.00167% |
| Summing amplifier | N/A |
| Temperature stability | ±0.01% FSR/°C |
| Weight | 0.11kg |
