PUSH/PULL PROBES Capacitive Position Sensor
Eliminates the effects of variations in electrical conductivity or ground path of the target
Key features
- Eliminates inaccuracies created by poorly grounded targets
- Can measure highly resistive targets
- Cancels common mode electrical noise
About Capacitance Probes - Push/Pull Probe sensors
Capacitance Technology
Standard capacitive sensors require the target to be electrically grounded. Current flows from the probe face to the target and back to the amplifier to complete the circuit. The capacitance between probe and target is proportional to the distance and converted to a 0 - 10V output from the amplifier. The measurement of electrically grounded targets can be, however, affected by changes in the electrical conductivity or ground path of the target.
Unique Push/Pull Technology

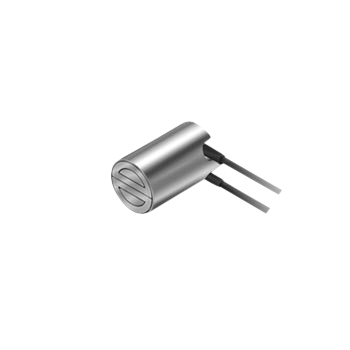

To eliminate the effects of these variations, Althen developed a unique version of the Accumeasure sensor called the push-pull. In this design each probe consists of two capacitance sensors, built into one probe body. Each sensor is driven at the same voltage, however, there is a 180 degree phase shift between signals. This shift allows the current path to travel across the target surface rather than through the target to ground, eliminating any inaccuracies created by poorly grounded targets. Additionally, highly resistive targets can be measured with this technology allowing capacitance sensors to be used on semi-insulating and semi-conducting targets.
Additionally, the push/pull amplifier design cancels common mode electrical noise that may be induced in this target. Common mode noise may be encountered in magnetic bearing surfaces, semiconductor wafers, brake rotors and air bearing floating surfaces.
Applications for Push/Pull probes
- Semiconductor thickness
- Sheet metal thickness
- Photovoltaic wafer thickness
- Automotive brake rotor run-out
- Thickness variation
- Leveling or flatness measurements
Do you need this sensor for your next project?
Request a quotation today or leave your details to recieve more information from one of our experts.
Product downloads
Have it your way
Not exactly what you’re looking for? We offer standard sensors but can also help you with a tailor-made sensor or a complete measuring solution. Please contact us for advice or budgetary pricing.
Talk to an expertTechnical Specifications
Specification | Value |
---|---|
Accuracy | ±0.02% FS |
Measurement range | 0 to 1.78mm |
Output | 0.038 to 0.178mm/V |
Standard amplifier filter bandwidth | 500Hz |
