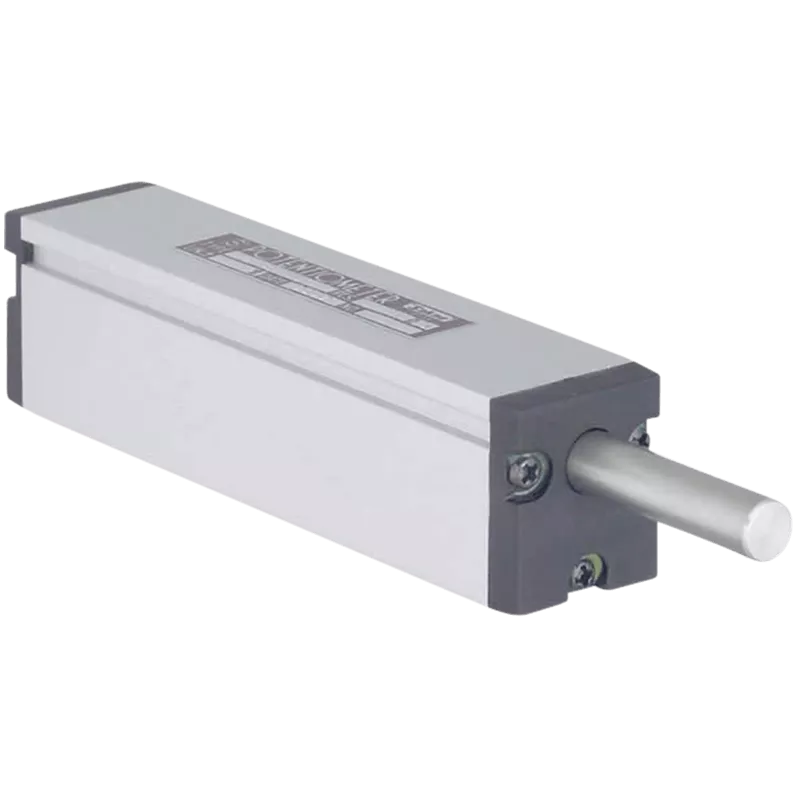

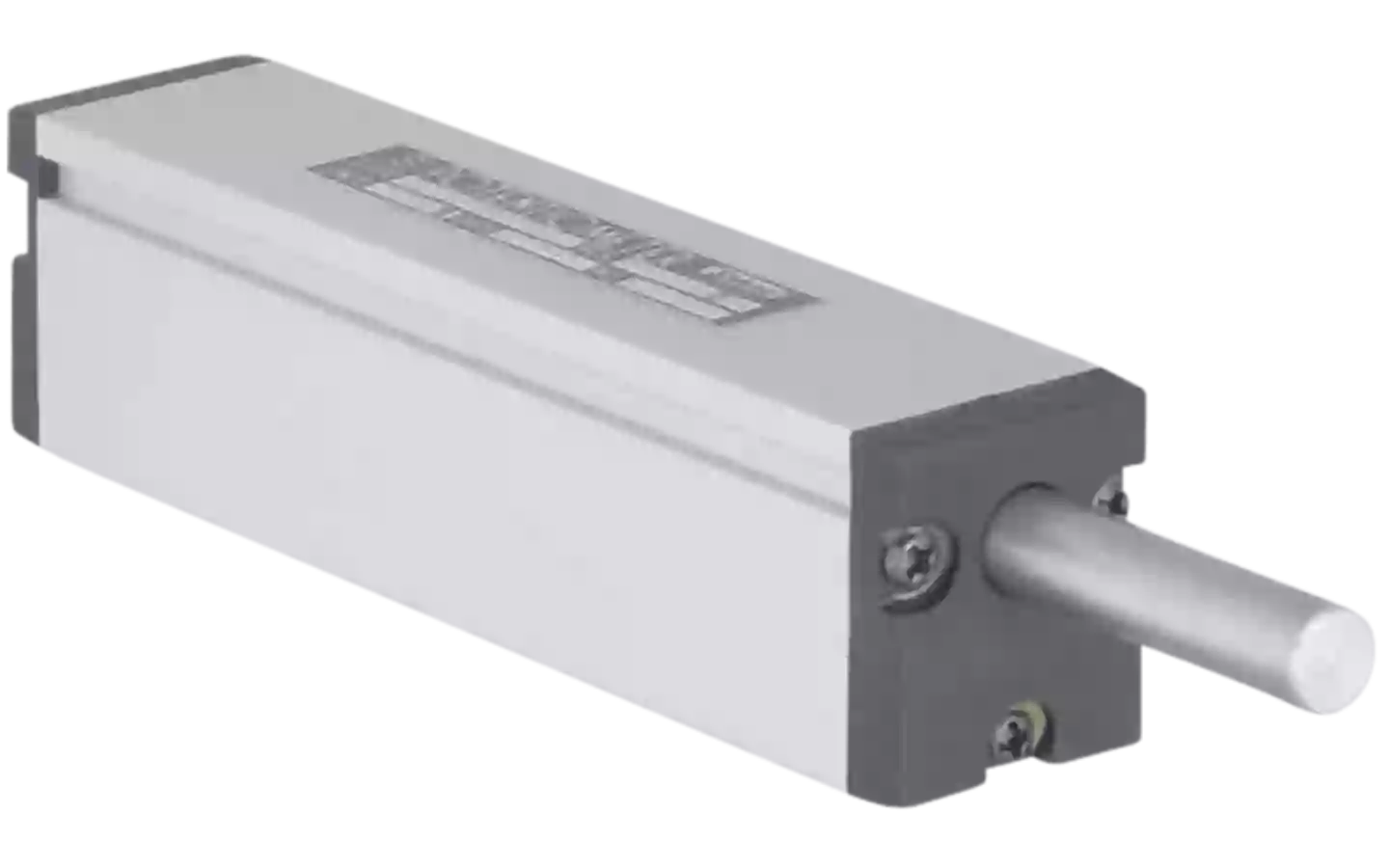

18LP Linear Potentiometer
Wirewound Potentiometer with front extended shaft
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Dielectric strength | 1 minute at 1,000 V.A.C. |
| Electrical stroke | 15±0.5mm to 100±0.5mm |
| Friction | Within 0.6N to 1N |
| Insulation resistance | Over 100M Ω at 1,000V.D.C. |
| Mass | Approx. 60g - 140g |
| Model no. | 18LP |
| Noise | Within 100 O E.N.R. |
| Power rating | 0.3W - W |
| Resistance temperature coefficient | ±20 p.p.m./ºC |
| Standard resistance values | 10 (Ω) ~ 5k (Ω) |
| Stopper strength | Approx. 90N (9kgf) |
| Total resistance tolerance precision class | ±3% (H) |
| Total resistance tolerance standard class | ±5% (J) |
