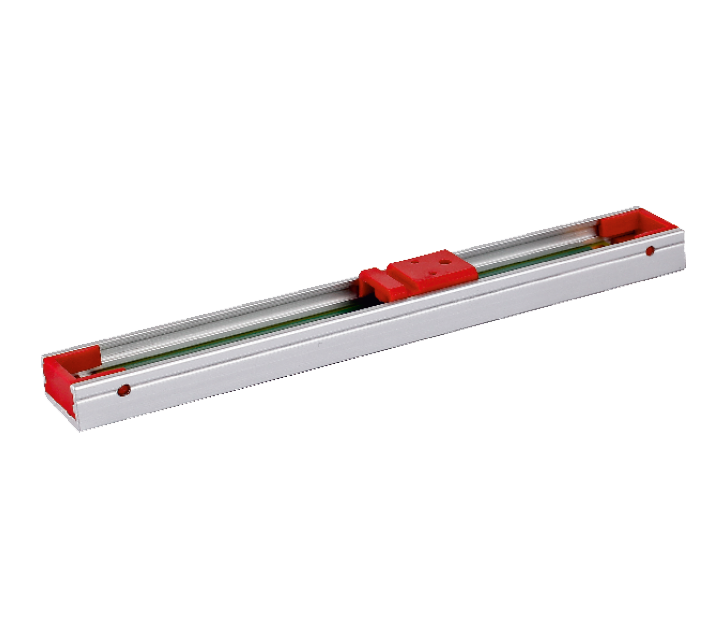

SOPH Linear Potentiometer
Key features
- Measuring range 25 - 150 mm
- Long mechanical life: 30 million movement
- Excellent repeatability <0.01 mm
- Infinite resolution
- 2 kOhm: 25 - 50 mm
- 5 kOhm: 75 - 150 mm
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Displacement speed | < 5 m/s |
| Linearity | ± %0,2 (75-130mm), ±%0,5 (<75mm) |
| Load resistance | 100kΩ min. |
| Measurement stroke | 25 to 150 mm |
| Mechanical life | 30 million movement |
| Operating temperature | -20°C ... +80°C |
| Permissible applied voltage | 28 VDC max. |
| Repeatability | < 0,01 mm |
| Resistance | 2 kOhm: 25 ... 50 mm / 5 kOhm: 75 ... 150 mm |
| Resistance tolerance | ± %20 |
| Resolution | Infinite |
| Storage temperature | -30°C ... +90°C |
