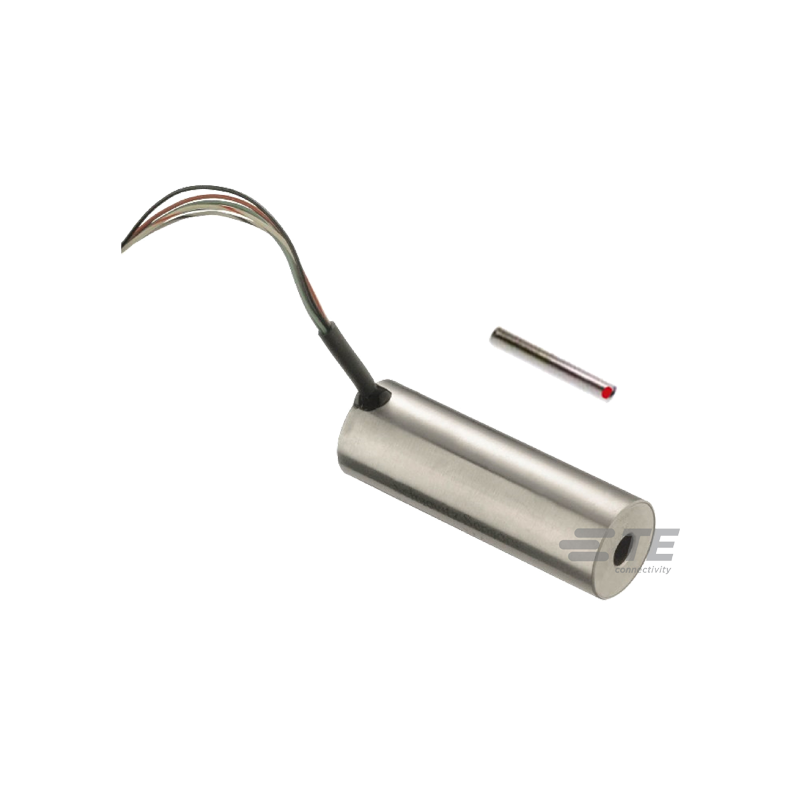

E Series LVDT Position Sensor

Highly economical, satisfying numerous applications in which LVDT performance and reliability are desired, but where budgets are limited

Key features

Customary LVDT performance
AISI 400 Series stainless steel case
Cost-effective AC-operated model
Magnetically shielded case
Available with imperial or metric core

About the E-series Economy series LVDT

The E Series of LVDTs is highly economical, satisfying numerous applications in which LVDT performance and reliability are desired, but where budgets are limited. With a linearity of just ±0.5% of full-range (E-2000 ±1.0%), the E Series is suitable for most applications with moderate operating temperature environments. Housed in magnetic stainless steel for protection against electromagnetic and electrostatic interference, the E Series rugged construction is capable of resisting the shock and vibration of most industrial applications.

Applications for E-series

General industrial
Moderate operating temperature environments
Cost sensitive applications

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Product downloads

E series lvdt position sensor en

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification	Value
Electrical connections	Leads
Excitation frequency	1-10kHz
Form	Cylindrical
Industry standard	RoHS
Measurement range	2,54 to 50,8mm
Non-linearity	±0.5% or ±1%
Operating temperature	-55 – 95°C
Output	240 to 920mV/V
Protection	IP61
Spring loaded	Seperate core
Supply voltage	3V
