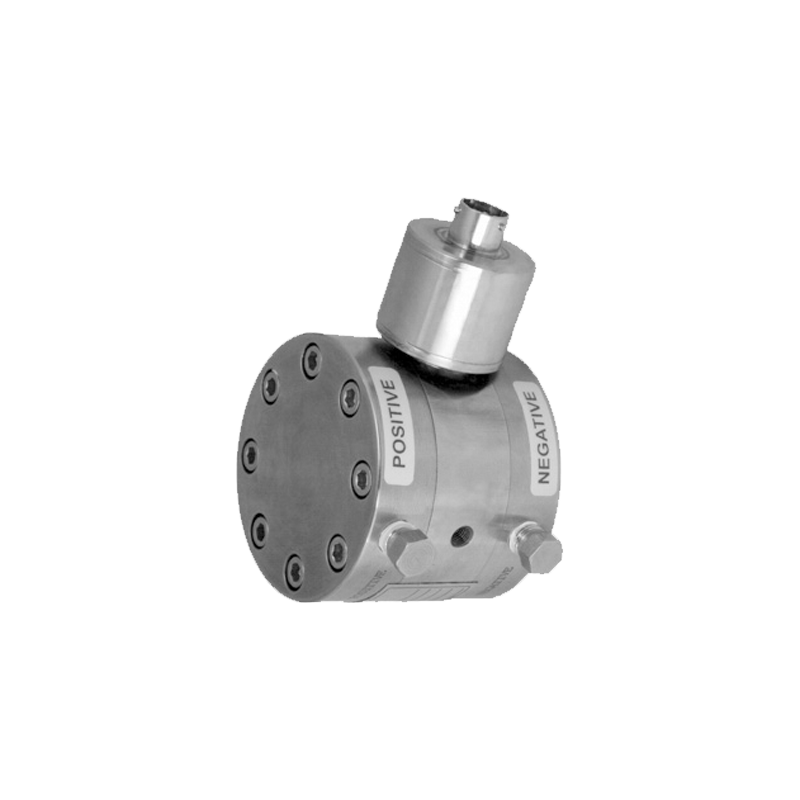

Z Mid range wet/wet differential pressure transducer
High accuracy differential pressure measurement for liquid media in demanding industrial environments. Designed for engineers who need reliable wet/wet performance with flexible output options and robust stainless steel construction.
Key features
- 0.25% full scale accuracy
- 50 to 750 psid ranges
- Bi-directional measurement
- Stainless steel construction
- mV/V, 4–20 mA or voltage output
- Intrinsically safe option available
Performance highlights
The Z mid range wet/wet differential pressure transducer is designed for precise differential pressure measurement in liquid media. With an accuracy of ±0.25% full scale and ranges from 50 to 750 psid, it delivers stable and repeatable performance in industrial process environments.
The bonded foil strain gauge technology ensures high linearity and minimal hysteresis, making it suitable for both test and permanent installation setups.
Usage conditions
This differential pressure transducer is built with a stainless steel housing and wetted parts, enabling reliable operation in demanding industrial environments. It supports line pressures up to 1500 psi and offers overload protection for enhanced durability.
Temperature compensated ranges and optional internal amplifiers allow flexible integration into existing control and monitoring systems.
Possible applications
- Hydraulic system monitoring
- Industrial process control
- Pump performance testing
- Filter monitoring
- Fluid power systems
- Test benches for liquid systems
Advantages of choosing this product
Engineers benefit from a rugged design combined with flexible electrical outputs including mV/V, 4–20 mA, 0–5 Vdc, and 0–10 Vdc. The optional intrinsically safe configuration makes it suitable for hazardous environments.
Removable pressure adaptors and multiple port configurations simplify installation and maintenance.
Other important features
- Bonded foil strain gauge technology
- CE approved
- Optional internal signal conditioning
- Multiple electrical termination options
- Shunt calibration support
- Hermetically sealed connector option
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Pressure ranges | 50, 75, 100, 150, 200, 300, 500, 750 psid |
| Accuracy | ±0.25 % full scale |
| Linearity | ±0.15 % full scale (typical) |
| Hysteresis | ±0.10 % full scale (typical) |
| Non-repeatability | ±0.05 % full scale (typical) |
| Output (standard) | 2 mV/V (nominal) |
| Line pressure | 1500 psi |
| Resolution | Infinite |
| Operating temperature | -54 °C to 121 °C |
| Compensated temperature | 15 °C to 71 °C |
| Strain gauge type | Bonded foil |
| Excitation (calibration) | 10 Vdc |
| Bridge resistance | 350 ohm |
| Overload safe | 1500 psi |
| Wetted parts material | 17-4 PH stainless steel |
| Case material | Stainless steel |
| Weight | 2.3 kg |
