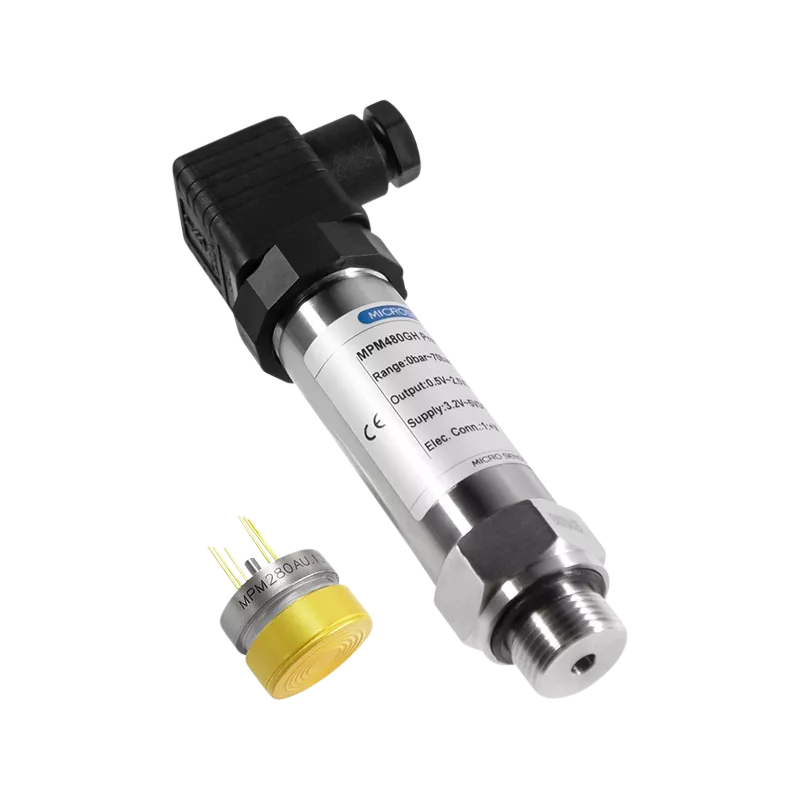

MPM480GH Pressure Transmitter
Hydrogen-compatible, robust, and temperature-resistant – ideal for reliable gas pressure monitoring.
Key features
- Hydrogen Service Gold Plated Diaphragm
- Range: 0mbar ~ 250mbar...70bar
- Output Signal: 4~20mA 0/1~5/10V DC 0.5~4.5V DC 0.5~2.5V DC
About The MPM480GH Pressure Transmitter
MPM480GH is a pressure transmitter designedfor gas industrial applications. It contains a piezoresistive sensor (gold plated) of excellent stability and reliability, a standardized output signal circuit and the high-strength stainless steel housing. The inner sensor diaphragm is processed with gold plating, capable for use in hydrogen environment. Its fully welded inner sensor assembly structure, wide temperature working capacity, and multiple cable materials options, making it an effective pressure measuring solution for the gas industry.
Feature
- For industrial gas measurement
- Development and verification under a hydrogen environment
- Gold-plated sensor diaphragm
- Various output signals are optional
Applications
- Hydrogen production system
- Hydrogen storage system
- Fuel cell
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Range | 0mbar ~ 250mbar...70bar |
| Overpressure | ≤ 1.5 times FS |
| Pressure Type | gauge, absolute, sealed gauge |
| Long-term Stability | ±0.2%FS/year |
| Compensated Temperature | -10℃ ~ 60℃ |
| Application Temperature | -30℃ ~ 85℃ (B1 type, B4 type) -20℃ ~ 70℃ (B2 type, cable material: PE, PVC） -20℃ ~ 80℃ (B2 type, cable material: PUR） |
| Storage Temperature | -30℃ ~ 85℃ (B1 type, B4 type) -20℃ ~ 85℃ (B2 type) |
| Vibration | 20g, 20Hz ~2000Hz |
| Shock | 20g,11ms |
| Protection Degree | IP65 |
