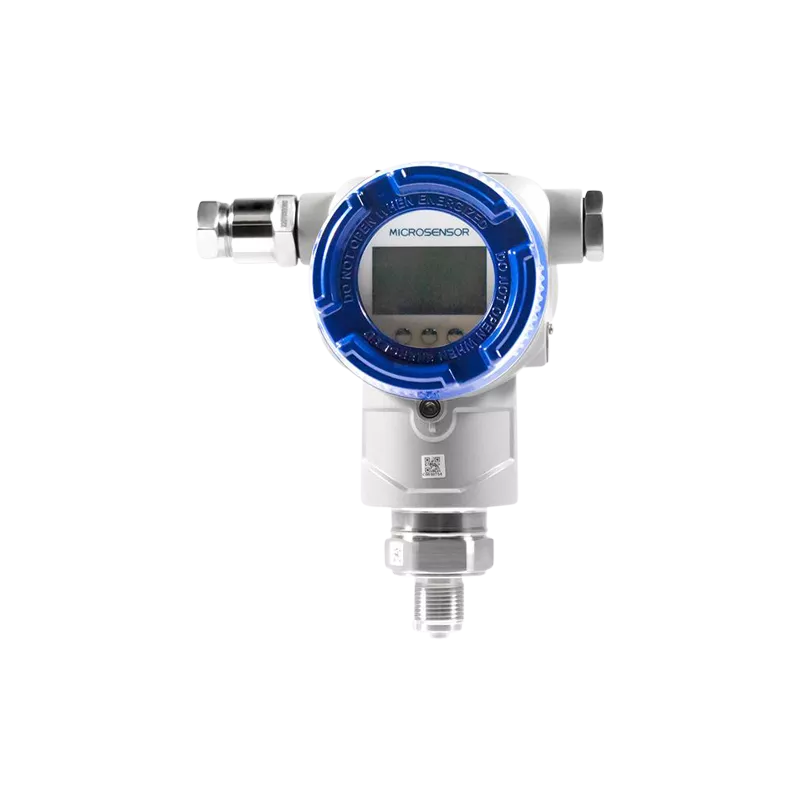

MDM7000-GP/AP Smart pressure transmitter

---

Key features

• Accuracy up to 0.075%FS
• Long-term stability: ±0.1% SPAN/5 years
• High voltage overload protection, strong anti-interference ability

---

About The MDM7000-GP/AP Smart pressure transmitter

MDM7000-GP/AP Smart gauge / absolute pressure transmitter has high precision and excellent long-term stability. The advanced monocrystalline piezoresistive technology enables the MDM7000-GP/AP to achieve an accuracy of 0.075%FS. The MDM7000-GP/AP offers a range of 0.4bar to 400bar (MDM7000-GP) or 0.4bar to 100bar (MDM7000-AP).

The product has excellent anti-interference ability, high-frequency response ability and anti-overload ability. Digital signal processing and communication methods enable remote setup, monitoring and testing for easy production process control and maintenance. It provides an accurate and reliable pressure measurement solution for industrial applications. MDM7000-GP/AP intelligent pressure transmitter is a reliable pressure monitoring device for industrial process control system and chemical industry.

The features of high accuracy, rugged construction and smart make the MDM7000 Series an excellent choice for any industry requiring precise pressure measurement and control.

Environment condition

• Operating temperature
  Without LCD display: -40°C ~85°C ;
  With LCD display: -20°C ~70°C ,-40°C ~70°C(low temperature display)
• Storage temperature
  Without LCD display: -40°C ~100°C ;
  With LCD display: -40°C ~85°C
• Medium temperature 1
  Silicone oil filled: -40°C ~105°C
  Inert oil filled: -45°C ~160°C
  Low temperature silicone oil: -55°C ~200°C
• Operating humidity
  5%RH~100%RH@40°C

---
