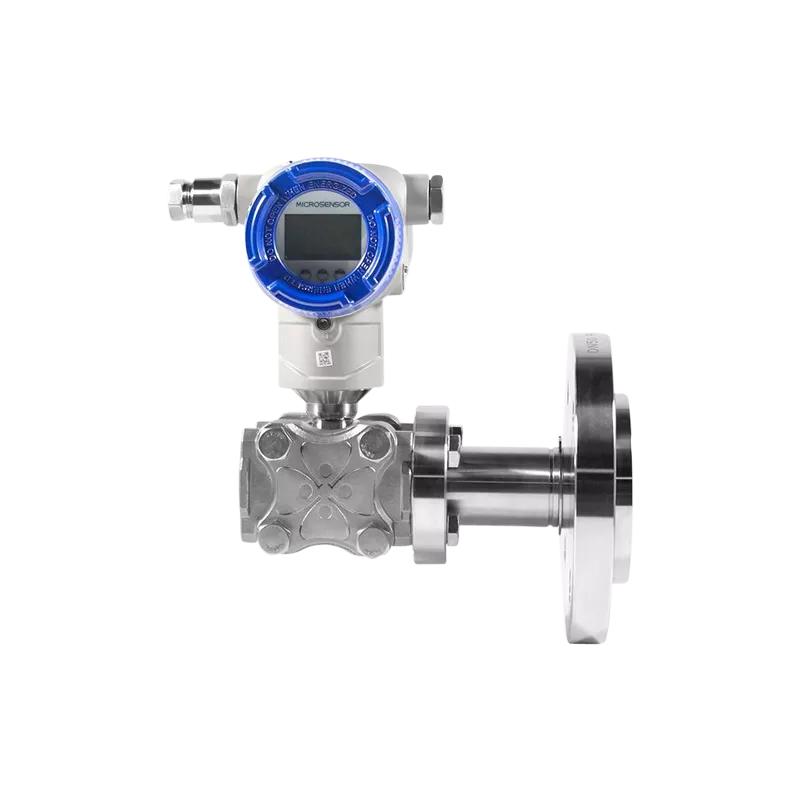

MDM7000LT Smart level transmitter
Robust differential pressure level transmitter with diaphragm seal for precise liquid level measurement in harsh process conditions.
Key features
- Accuracy：±0.2% URL
- Range: 0.4bar~10bar
- Output Signal: 4mA~20mA DC+HART
- DNV, ABS, KR, NK, and RS approved for installation on vessels
About the MDM7000-LT Smart differential pressure level transmitter
The MDM7000-LT is a high-performance smart level transmitter designed for accurate and stable liquid level measurement in pressurized tanks and challenging process environments. Utilizing a monocrystalline silicon sensor and a flanged diaphragm seal system, it measures differential pressure to infer liquid height with exceptional precision and long-term reliability.
With a turn-down ratio of 100:1, the transmitter accommodates a wide range of level applications—from small tanks to high-pressure vessels—with a nominal pressure range of 0.4 to 2.5 bar and accuracy up to ±0.2% of URL, including diaphragm seal effects.
Engineered to operate under harsh environmental conditions, the MDM7000-LT offers:
- Operating temperatures from -50°C to +85°C
- IP67-rated housing for dust and water resistance
- A choice of diaphragm materials such as 316L, Hastelloy C-276, Tantalum, Titanium, or Monel
- Various fill fluids to suit high, low, or cryogenic temperatures
- Configurable capillary lengths (up to 10m) for remote flange mounting
Communication is handled via a standard 4–20 mA HART protocol, with optional Bluetooth support. The device supports square root output and includes configurable damping, alarm current settings, and optional integrated valve manifolds for ease of calibration and maintenance.
Certified for use in hazardous areas, the MDM7000-LT carries international approvals including ATEX, IECEx, CSA, and NEPSI, making it a safe and versatile choice for industries such as:
- Chemical and petrochemical
- Oil & gas
- Power generation
- Water & wastewater
- Marine & offshore (CCS, DNV, ABS certified)
Whether side-mounted or with remote flange installation, the MDM7000-LT is a robust and flexible solution for reliable level measurement in aggressive, high-pressure, and hazardous environments.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | ±0.2% URL + Diaphragm seal system effects |
| Range | 0.4bar~2.5bar, see the specifications for details |
| Turn down ratio | 100:1 |
| Long-term stability | ±0.2% Span/10 years |
| Ambient temperature effects | The total effect per 10ºC in the range of -20ºC ~80ºC: (0.375+0.125TD)%/10ºC of SPAN |
| Voltage effects | When the power supply voltage changes within 18.3V~44V DC, its zero point and range change should not exceed ±0.005% URL/V |
| Mounting position effects | The installation of the transmitter may produce a zero point error, which can be corrected by PV (primary value)=0 reset without any effect on the range. |
| Vibration effects | ＜ 0.1% SPAN as per GB/T18271.3/IEC61298-3 |
| Output signal | 4mA~20mA DC, HART |
| IP rating | IP67 |
| Weight | With DN50 flange: About 12.6kg (excluding capillary tube) With DN80 flange: About 15.5kg (excluding capillary tube) |
| Operating temperature | Without LCD display: -50℃ ~85℃ ; with LCD display: -40℃ ~70℃ |
| Storage temperature | Without LCD display: -50℃ ~100℃ ; with LCD display: -40℃ ~85℃ |
| Operating humidity | 5%RH~100%RH@40℃ |
