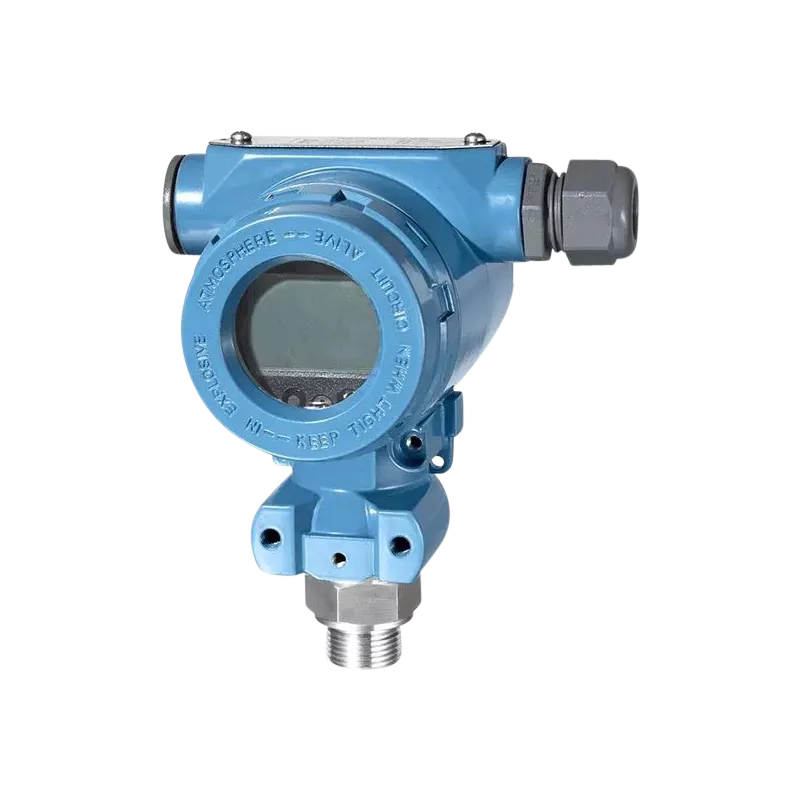

MPM486 LCD HART pressure transmitter

High accuracy, high stability, multi-parameter and four and a half digits LCD display. It conforms to HART® protocol.


Key features

  • 4~20mA current output together with HART® (2-wire);
  • Digital compensation and linearity correction;
  • -10°C ~80°C digital wider temperature compensation;
  • Local and long-distance zero, range adjustment;

About the MPM486 LCD HART pressure transmitter

MPM486 HART® intelligent pressure transmitter is an intelligent pressure measurement product with high accuracy, high stability, multi-parameter and four and a half digits LCD display. It conforms to HART® protocol. The users could manage, adjust or monitor the process variables by HART® communicator, and it could also be configurated by key-press at local working place.

The product uses the most advanced digital technique, temperature compensation, linearity correction and reliable ex-proof construction for production. The whole product has high accuracy, wider temperature compensation range and standard signal output to measure flow pressure precisely.

MPM486 transmitter is 2-wire instead of 4~20mADC analog output, can be communicated with Micro Sensor ROSEMOUNT 275 hand-communicator and MS-H375 hand-communicator together. Electromagnetic radiation conforms to IEC801 standard.

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy ±0.1(typ.) ±0.25(max.) %FS
Zero Thermal error ≤±0.25(in the whole operation temp.range) %FS
FS Thermal error ≤±0.25(in the whole operation temp.range) %FS
Stability ≤±0.25 %FS/year
Compensation temp -10~80 ℃
Operation temp -30~80 ℃
Storage temp -40~85 ℃
Power supply 13~36 VDC
Digital output 4~20mADC output+ HART®
Display LCD indicator, 2 or 3 keys to calibrate
Damp 0~32 s
Load (U-12V)/0.02A Ω
Insulation 100MΩ@50V
Shock 20g, 20~5000Hz
Impact 20g,11ms
Diaphragm Stainless steel 316L/tantalum
Pressure port Stainless steel 304/hastelloy
O-ring Viton
Weight ~1.7kg
