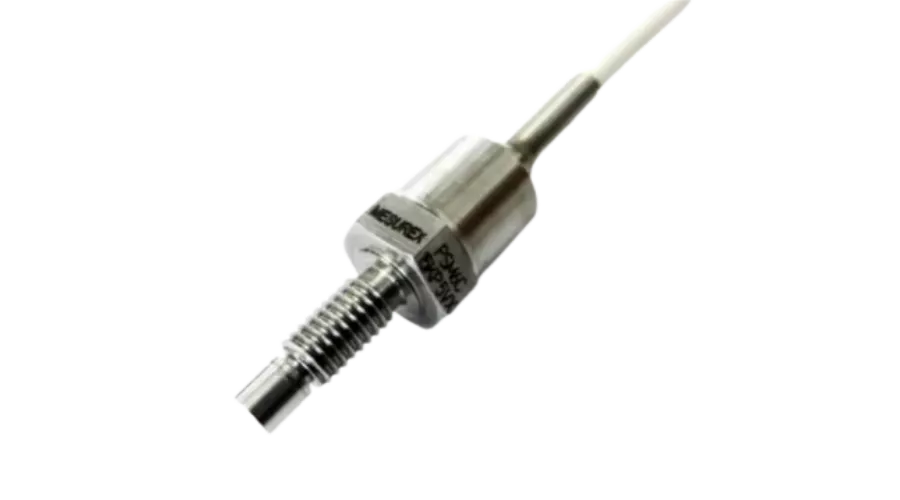

PM6 Series miniature pressure sensor
Miniature stainless steel pressure sensor for static and dynamic pressure measurements. Designed for corrosive or conducting fluids, with ranges from 20 to 1000 bar.
Key features
- Pressure ranges from 20 to 1000 bar
- Static and dynamic pressure measurement
- Stainless steel construction
- For corrosive or conducting fluids
- mV or amplified output
- Operating temperature up to +150°C
Performance highlights
The PM6 Series miniature pressure sensor is designed for static and dynamic pressure measurements in corrosive environments. The sensor is made entirely from stainless steel. Its recessed membrane design makes it compatible with many corrosive or conducting fluids.
Usage conditions
The sensor is available with gauge or sealed pressure reference. It can be supplied with an unamplified mV output or with integrated electronics for an analogue voltage signal. The non-amplified version operates from -40°C to +150°C. The amplified version operates up to +125°C.
Possible applications
- Dynamic pressure testing
- High pressure measurement
- Corrosive fluid monitoring
- Conductive fluid pressure measurement
- Compact OEM systems
- Test bench pressure measurement
Advantages of choosing this product
The PM6 Series miniature pressure sensor combines a compact M6 design with high pressure capability. It supports pressure ranges up to 1000 bar. The stainless steel construction and welded body and membrane support use in demanding fluid environments.
Other important features
- Pressure ranges from 300 to 15000 psi
- Overpressure rating of 2 x FS
- Burst pressure rating of 3 x FS
- Resonant frequency up to 926 kHz
- Bandwidth of 3 kHz for amplified versions
- IP50 standard, IP67 optional
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Pressure ranges | 300, 500, 750, 1000, 1 500, 2 000, 3 000, 5 000, 7 500, 10 000, 15 000 psi |
| Pressure ranges | 20, 35, 50, 70, 100, 140, 200, 350, 500, 700, 1 000 bar |
| Pressure reference | Gauge / sealed or sealed depending on range |
| Output FSO sensitivity with 10 Vdc | 100 mV, 30% / +50% |
| Frequency | 179 kHz to 926 kHz depending on range |
| Suggested frequency of use | 20% of the resonant frequency |
| Bandwidth, amplified electronics | 3 kHz |
| Overpressure | 2 x FS |
| Burst pressure | 3 x FS |
| Supply voltage, not amplified | 10 V |
| Supply voltage, amplified | 10 to 30 Vdc |
| Repeatability | 0.2% of FS |
| Non-linearity | ± 0.25% FS |
| Hysteresis | ± 0.25% FS |
| Zero offset at 20°C, not amplified | ± 10 mV |
| Zero offset, amplified version | 0.5 Vdc ± 5% |
| Full scale, amplified version | 4.5 V |
| Operating temperature | -40°C to +150°C |
| Operating temperature, amplified version | +125°C |
| Compensated temperature | 0°C to +60°C |
| Index of protection | IP50 / IP67 optional |
