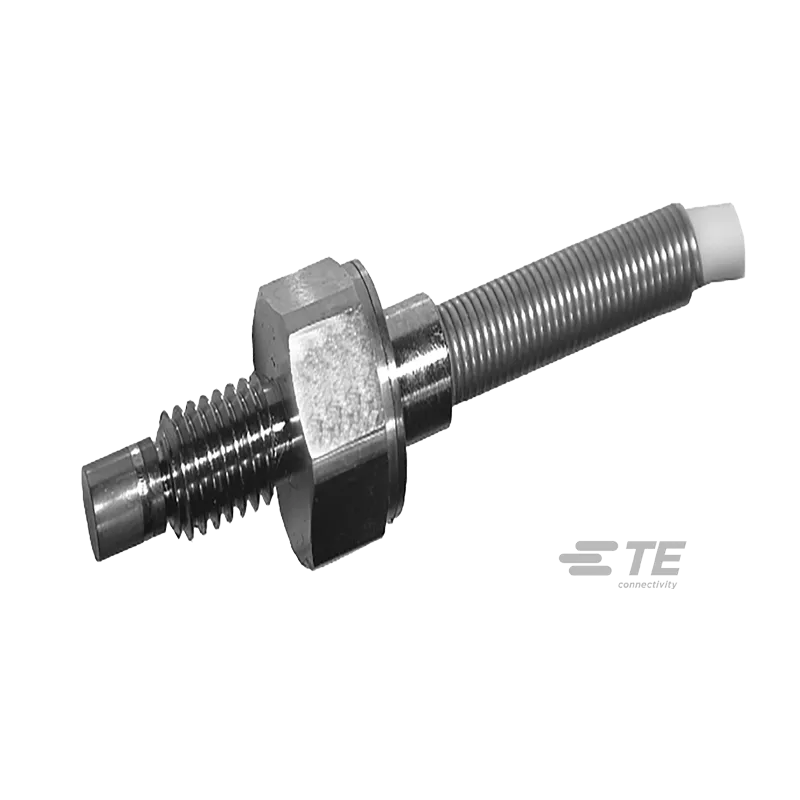

XP5 Miniature Pressure Sensor
Miniature threaded pressure sensor for measurement in static, dynamic or harsh environments
Key features
- Measurement ranges: 0 - 0,5 to 0 - 350 bar
- Flush diaphragm
- M5x0.8 or 10-32 UNF-2A thread
- Cable or integral connector
- Many options available
About the XP5 Miniature Pressure Sensor
The XP5 miniature pressure sensor features the cutting edge SanShift™ technology which eliminates zero shifts caused by installation torque. This rugged sensor is constructed of titanium to enable reliable operation including harsh environments. The XP5’s core sensing technology consists of a temperature compensated Wheatstone bridge composed of high stability micro-machined silicon strain gauges.
Available in gauge, absolute and sealed configurations, the XP5 is offered in ranges from 1 to 350 bar [15 to 5,000 psi]. An on-board amplifier is optionally available (A1) for ranges from 5 to 350 bar [75 to 5,000 psi].
A PT1000 temperature probe is optionally available for all ranges as a custom design.
Applications XP5 Mini Pressure Transducer
- Corrosive liquids and gases
- Braking system pressure
- Onboard equipment monitoring
- Mil-Aero
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | 0.25% |
| Connection | Cable or integral connector |
| Diaphragm | Flush |
| Measurement range | 0 - 0.5 to 0 - 350 bar (0 - 7.5 to 0 - 5000 psi) |
| Operating temperature | -40 to 120 °C [ -40 to 248 °F ] |
| Output | 100 mV, 20 mV, 30 mV, 4±0.2 V, 75 mV |
| Port material | Titanium |
| Pressure type | Absolute, sealed, gauge |
| Supply voltage | 10 V, 10 – 30 V |
