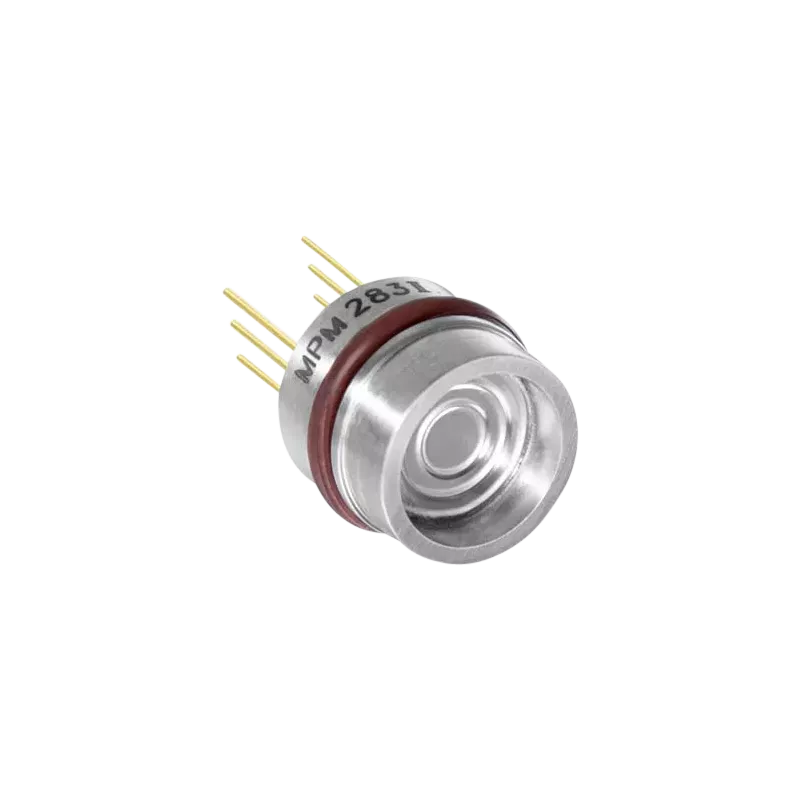

MPM283II Tank Level Pressure Sensor

---

Key features

• Pressure range: 0bar ~ 2.0bar...1000bar
• Gauge, Absolute and Sealed gauge
• Φ12.6mm compact size OEM pressuresensor
• Isolated construction, enable to test measure various fluid media

---

A propos du capteur de pression haute gamme MPM283II

MPM283II high-pressure sensor module for tank level measurement is made of a diffused pressure sensing die and stainless steel 316L housing. With a corrugated stainless steel 316L diaphragm, the measured pressure is transmitted to the sensing die through it and internally filled silicon oil. By doing linear correction and temperature compensation, the stable performance of the pressure transducer is guaranteed. With NBR or EPDM O-ring, it is easy for users to install and applicable for different temperature application. The pressure range is 0bar ~ 2.0bar…1000bar and the dimesion is Φ12.6×10.5 mm.

Applications

• Industrial process control
• Gas & Liquid Pressure Measurement
• Pressure inspection meters
• Pressure calibrators

Electrical Performance

• Electrical connection: Kovar pin or 100mm silicon rubber flexible wires
• Common mode voltage output: 50% of input (typ.)
• Input impedance: 2kΩ ~ 8kΩ
• Output impedance: 3.5kΩ ~ 6kΩ
• Response (10% ~ 90%): < 1ms
• Insulated resistor: 100MΩ@100V DC
• Overpressure: 2 times FS or 1100bar (min. value is valid)

Construction Performance

• Diaphragm: Stainless steel 316L
• Housing: Stainless steel 316L
• Electrical connection: Kovar or Silicon rubber flexible wires
• O-ring: FKM
• Net weight: ~8g

Environment Condition

• Shock: No change at 10gRMS, (20 ~ 2000)Hz
• Impact: 100g, 11ms
• Media compatibility: The liquid or gas which is compatible with stainless steel and FKM

Basic Condition

• Media temperature: (35±1)°C
• Environment temperature: (35±1)°C
• Shock: 0.1g (1m/s2) Max
• Humidity: (50±10)%RH
• Local air pressure: (0.86 ~ 1.06)bar
• Power supply: (1.5±0.0015)mA DC

---
