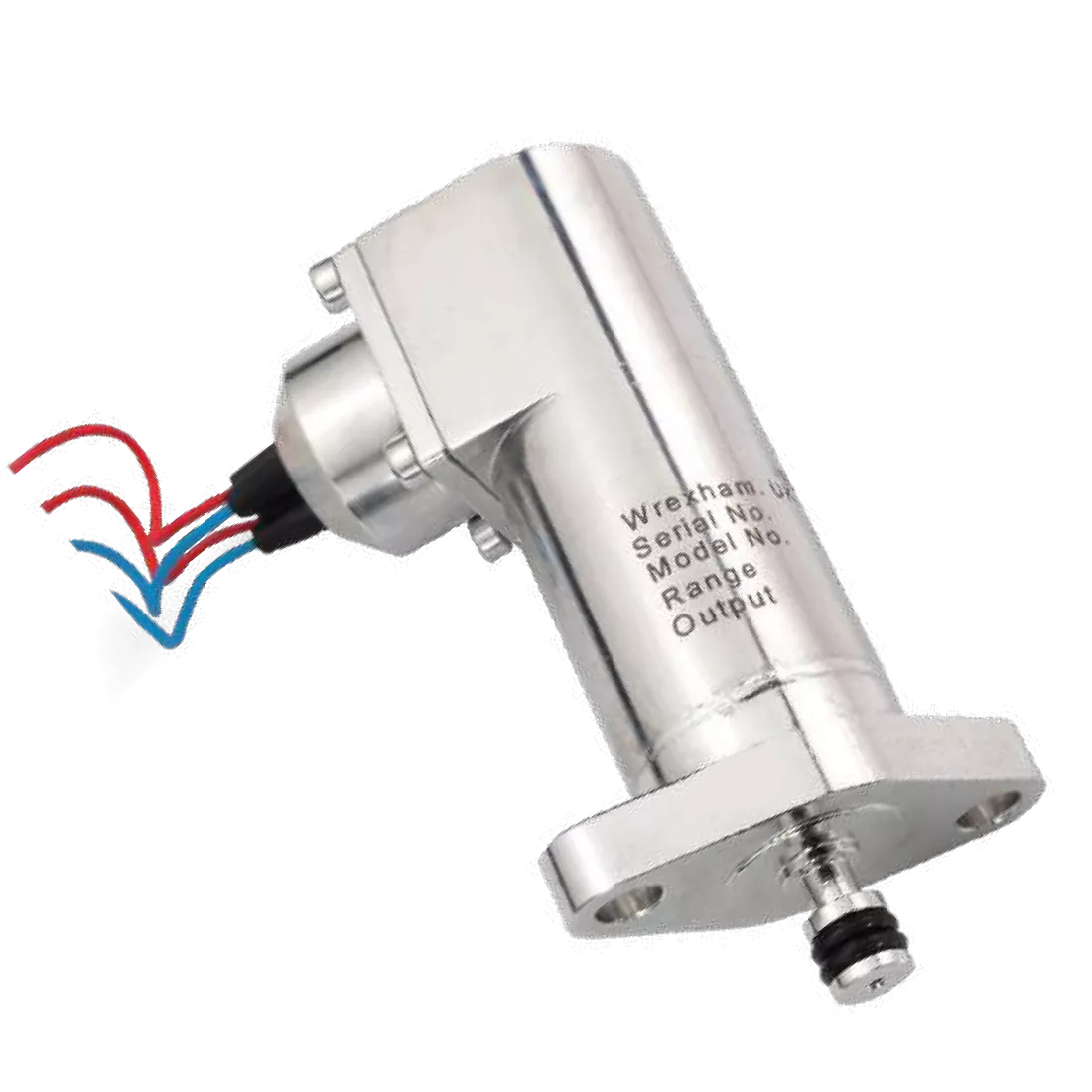

APR3915 Dual redundant Subsea pressure transducer
For sub-sea oil industry, configured to mount directly to the industry standard control valve flange arrangement
Key features
- Two pressure sensors and electronics for reliable dual redundancy
- Submersion to 3,000 metres sea level
- Pressure ranges available to 1,000 bar
- High accuracy option
- Hyperbaric testing to 3,300 metres depth
- Environmental Stress Screening (ESS Testing)
- Silicon-on-Sapphire sensor technology for outstanding performance
About the APR3915 Dual redundant Subsea pressure transducer
The APR3915 Dual Redundant Subsea pressure transmitter has been designed to meet the requirements of the sub-sea oil industry Valve-Mountable and is configured to mount directly to the industry standard control valve flange arrangement.
The unique Silicon-on-Sapphire sensor technology provides outstanding performance and gives excellent stability over a wide temperature range. The sensor can endure high over-pressures and provides superb corrosion resistance with virtually no hysteresis. The outstanding insulation properties of the sapphire allows the sensor to operate over a very wide temperature range without loss of performance.
Housed in fully welded body with wetted parts conforming to the NACE recommendation for material corrosion resistance, this product will provide a durable solution for long term accurate pressure measurement even when permanently situated in extreme depth sub-sea environments. The pressure connection is achieved with an 8mm diameter stem with integral dual redundant o-ring seal grooves. Alternative connections are available. The fitting is constructed from Inconel 625 for high chemical resistance. Providing a two wire output signal of 4-20 mA with high stability and repeatability for pressure ranges up to 1,000 bar.
Intended for permanent immersion in pressurized dielectic oil and protected from ingress with a high pressure glass-to-metal lead through the product can withstand external pressure up to 3,000 metres depth water and provides secondary pressure containment up to 1,650 bar. Electrical connection is via strong PTFE Raychem Flexlite leads. Pressure ranges available from 0-200 bar to 0-1,000 bar.
Units can be supplied with hyperbaric test certificates to 3,000metres water submersion. ESS testing and comprehensive document packages are available.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy nlhr | ≤ ±0.25 % of span BFSL |
| Operating ambient temperature | -20 °C to +40 °C (-4 °F to +104 °F) |
| Output signal | 4-20 mA (2 wire) |
| Pressure reference | Sealed Gauge |
| Protection of supply voltage | Protected against supply voltage reversal up to 50 V |
| Sensor technology | Silicon-on-Sapphire (SoS) |
| Standard pressure ranges (bar) | 0 – 569 bar; 0 – 759 bar; 0 – 1,035 bar; 0-1,380 bar (other options available) |
| Supply voltage | 10 – 36 VDC |
