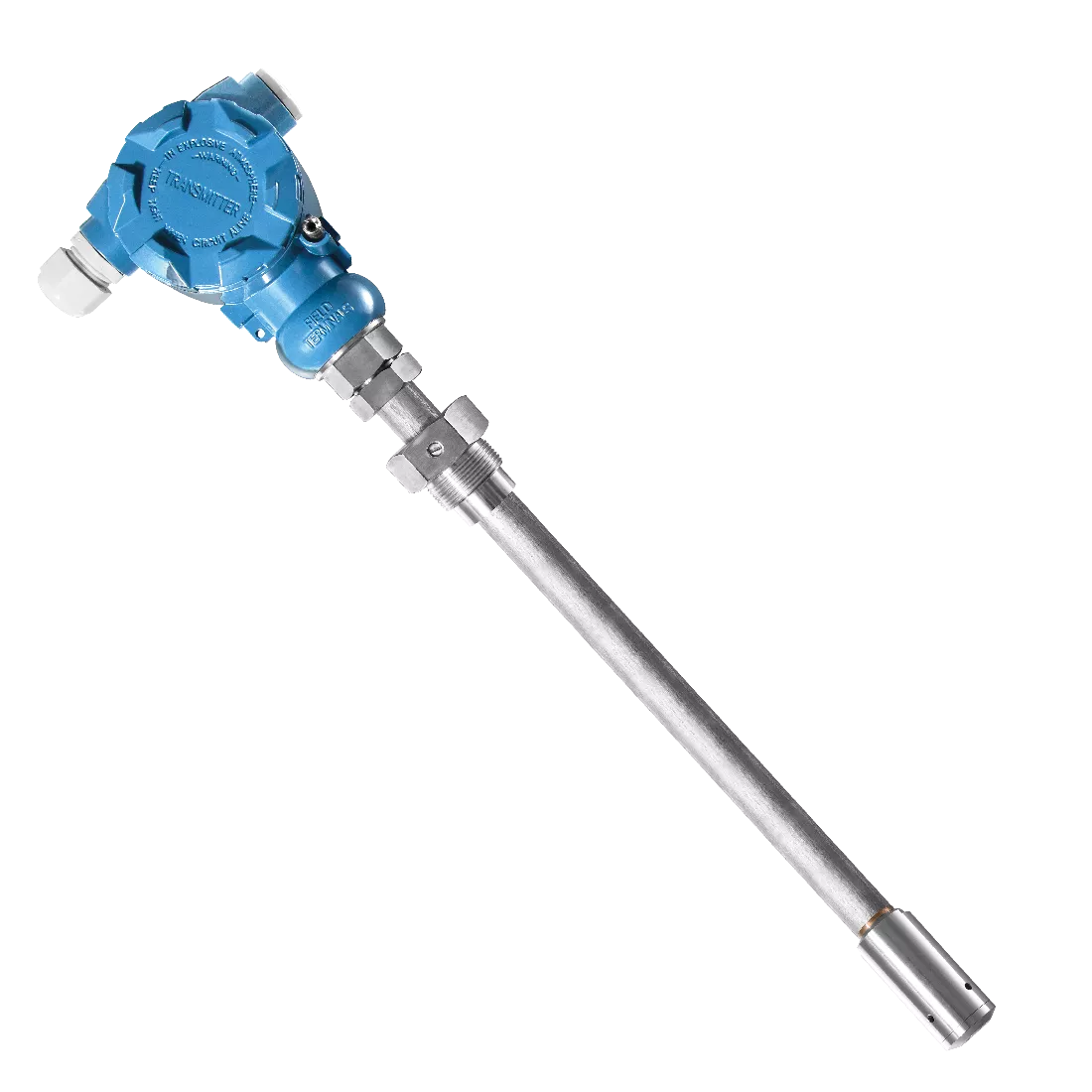

MPM416WK Armoured Level Transmitter
Armoured level measurement sensor suitable for hazardous environments
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | +0.25%FS(typ.) +0.5%FS(max.) |
| Cable | Φ7.2mm PVC/Polyurethane cable with vented tube |
| Diaphragm | stainless steel 316L |
| Housing | stainless steel 1Cr18Ni9Ti |
| O- ring | Viton |
| Operation temperature | -30℃ ~80℃ -10℃ ~60℃ |
| Overpressure | 1.5 times FS |
| Pressure range | 1, 2, 3, 4mH2O |
| Protection | IP68(sensor part), IP65(wiring part) |
| Rubber casing | NBR |
| Storage temperature | -40℃ ~120℃ |
