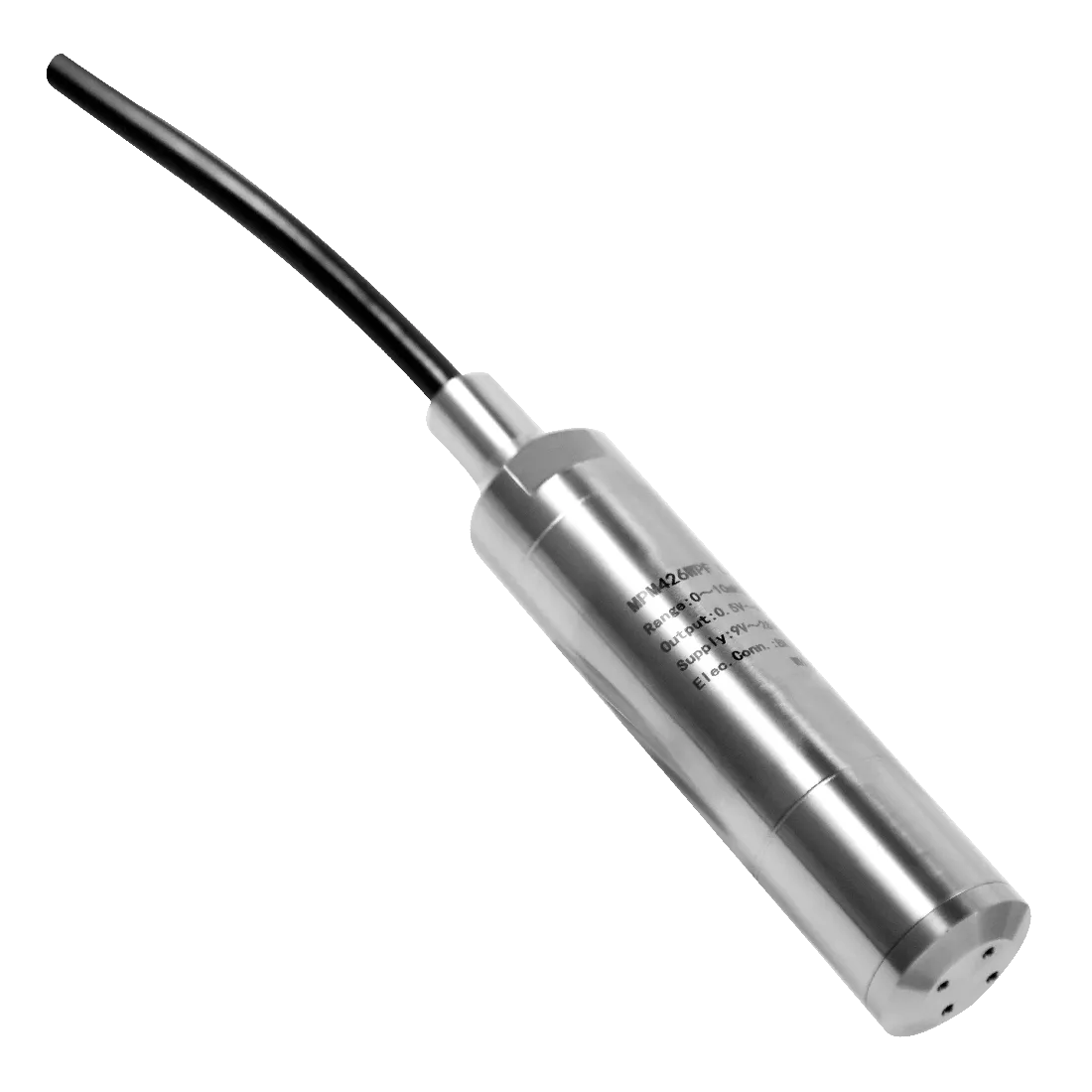

MPM426WPF Level Transmitter
Fully welded, durable and submersible level measurement device
Key features
- High reliability, safe and easy to use
- Protection against short circuit and reverse polarity
- Automatic production line ensures high quality and stability
- 316L stainless steel housing and IP68
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | ±1% FS( ≤ 3.5mH2O) ±0.5% FS(>3.5mH2O) |
| Cable | φ7.5mm Polyurethane Cable |
| Diaphragm | Stainless steel 316L |
| Housing | Stainless steel 316L |
| Insulation resistance | 100V@100MΩ |
| Level range | 0mH2O~2mH2O/3.5mH2O/5mH2O /10mH2O/20mH2O/35mH2O |
| Load resistance | ≥ 10kΩ |
| Long-term stability | ≤year ±0.3%FS/ |
| Output signal | 0.5V~4.5V DC (3-wire) |
| Overload | 1.5 xFS |
| Power supply | 9V~28V DC or 5V DC |
| Pressure type | Gauge |
| Protection rating | IP68 |
| Storage temperature | -20℃ ~85℃ |
| Total error | ±2% FS( ≤ 3.5mH2O, -20℃ ~75℃ ) ±1.5% FS (> 3.5mH2O, -20℃ ~75℃ ) |
| Weight | about 260g (Including no cable), cable is about 70g/m |
| Working temperature | -20℃ ~80℃ |
