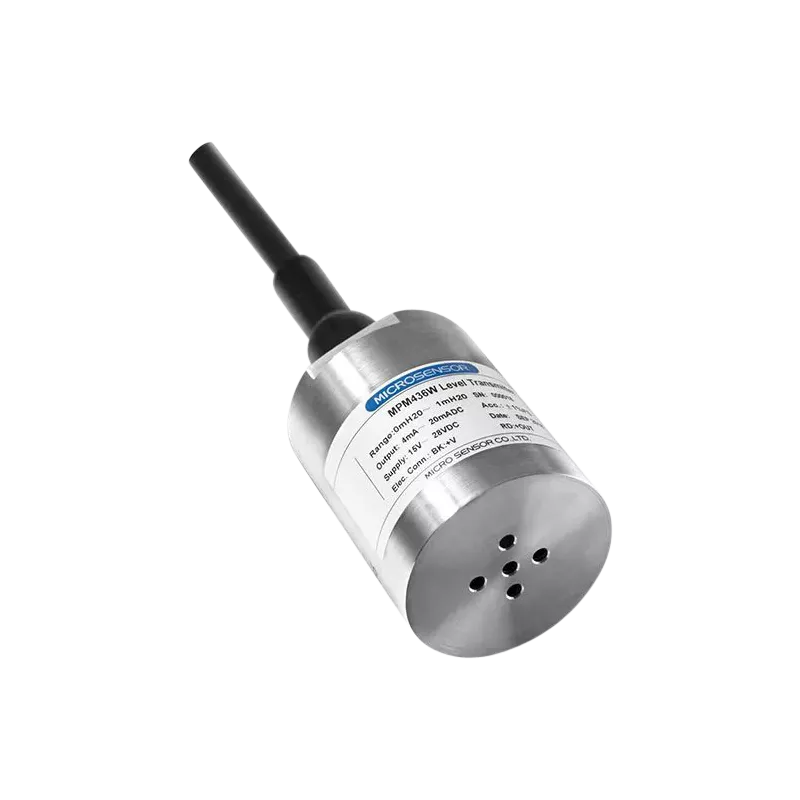

MPM436W Level transmitter for low level

Level transmitter for 0.5–2 meters, perfect for water management and chemical processes.

View technical specifications

Key features

  • Low-range liquid level measurement and control
  • IP68 protection level of submersible part
  • Accuracy of ±0.5%FS min
  • Resist strong pressure shock

About the MPM436W level transmitter

The MPM436W level transmitter is specifically designed for accurate low liquid level measurements, with a measurement range spanning from 0.5 to 2 meters. This makes it particularly well-suited for applications in municipal water supply and drainage systems, as well as in the chemical industry—especially when compared to conventional level meters.


Its fully sealed stainless steel construction houses both the pressure sensor and signal amplification circuitry, ensuring reliable performance even when fully submerged. The device uses a high-precision hydrostatic sensor to deliver accurate readings by detecting pressure proportional to the liquid depth.

For maintenance and protection, the MPM436W features a detachable stainless steel cap that shields the diaphragm while also making routine cleaning easy and efficient.

Application

  • Petroleum industry
  • Chemical engineering
  • Power plant
  • Urban water supply and drainage
  • Hydrological exploration

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Request a quotation

Always the right sensor solution.

  • Free and independent advice for your application
  • Tailor-made offer
  • Development of standard and customised solutions
  • Fast response time

MPM436W Level transmitter for low level

Terms and conditions
 Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Range  0mH2O ~ 0.5mH2O /2mH2O
Overpressure  ≤10 times FS
Accuracy  ±1%FS (0mH2O ~ 0.5mH2O) ±0.5%FS (0mH2O ~ 2mH2O)
Long-term Stability ±5mmH2O/year Thermal Drift ≤ ±0.15%FS/10°C
Application Temperature  -20°C ~ 70°C (cable material: PE, PVC) -20°C ~ 80°C (cable material: PUR)
Storage Temperature  -20°C ~ 85°C
Protection Rating  IP68
Weight  ≤150
