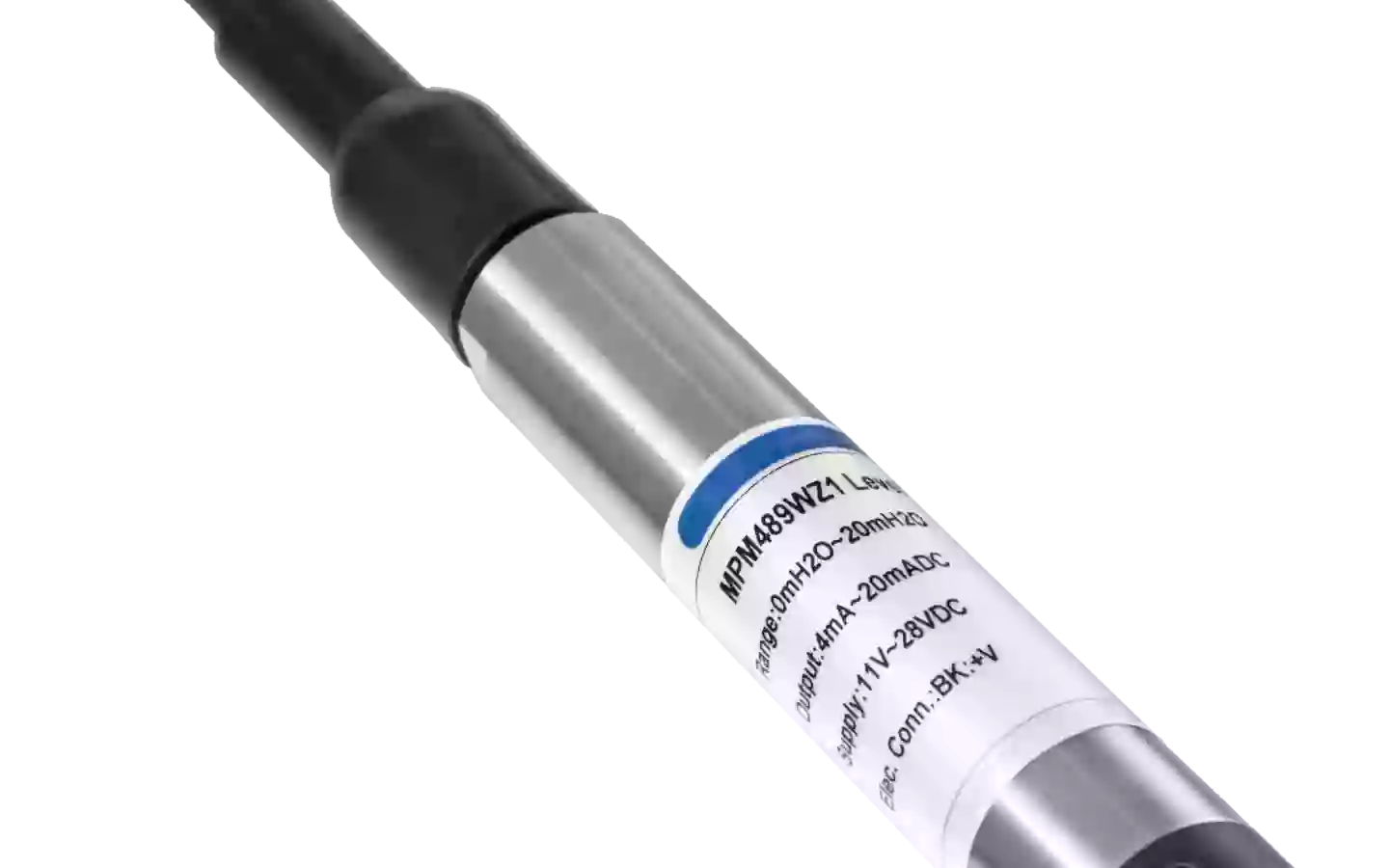

MPM489WZ1 Submersible Level Transmitter
Cost-efficient, submersible level meusurment sensor with many geophysical research applications
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | ±0.5%FS |
| Cable | Φ7.5mm PE cable with vented tube |
| Cap | Black nylon |
| Diaphragm | Stainless steel 316L |
| Housing | 1Cr18Ni9Ti |
| Load (Ω) | < (U-11)/0.02 |
| Operation temperature | -10℃ ~70℃ |
| Output signal | 4mA~20mA DC (2-wire) |
| Overpressure | 1.5 times FS |
| Power supply | 11V~28V DC |
| Pressure range | 10m, 20m, 50m, 100m, 200m H2O |
| Protection | IP68 (sensor part) IP65 (connection box) |
| Rubber casing | Chloroprene Rubber |
| Sealing o-ring | Viton |
| Stability error | Range>20mH2O, ±0.2%FS/year; Range≤20mH2O, 20mmH2O |
| Storage temperature | -20℃ ~85℃ |
| Temperature error | ±0.02%FS/℃ (Zero) ±0.05%FS/℃ (Span) |
