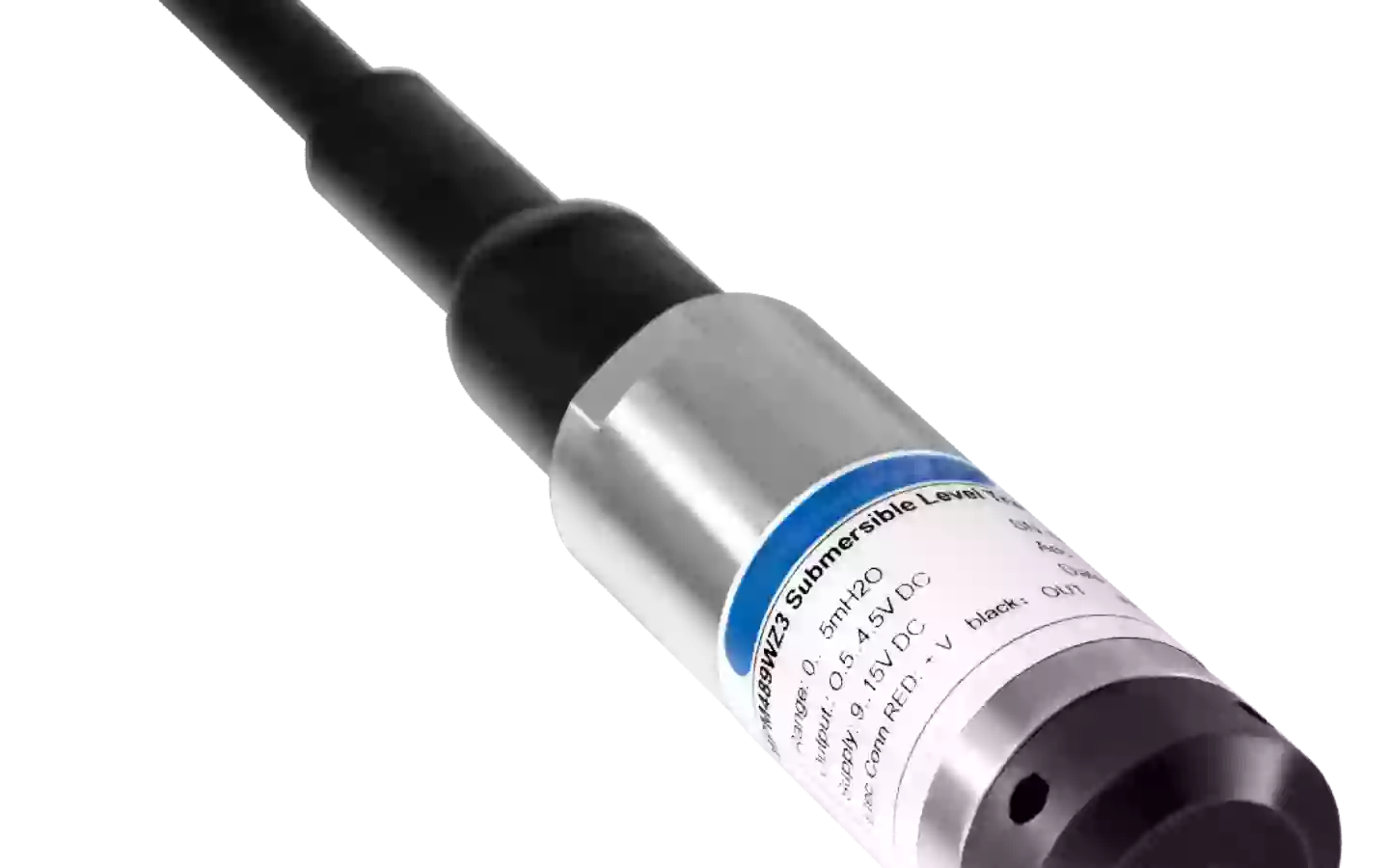

MPM489WZ3 Submersible Level Transmitter
Accurate, submersible water tank level measurement sensor
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | ±1%FS |
| Cable | Φ7.5mm PUR cable with vent tube |
| Cap | Nylon |
| Compensated temperature | 0℃ ~50℃ |
| Diaphragm | Stainless steel 316L |
| Housing | Stainless steel 304 |
| Operation temperature | 20℃ ~60℃ |
| Overpressure | 1.5 times FS |
| Pressure range | 1m, 2m, 5m, 7m H2O |
| Protection | IP68 (sensor part) IP65 (connection box) |
| Rubber casing | Chloroprene rubber |
| Seal parts | Viton |
| Stability error | ±0.5% FS/ year |
| Storage temperature | -20℃ ~70℃ |
