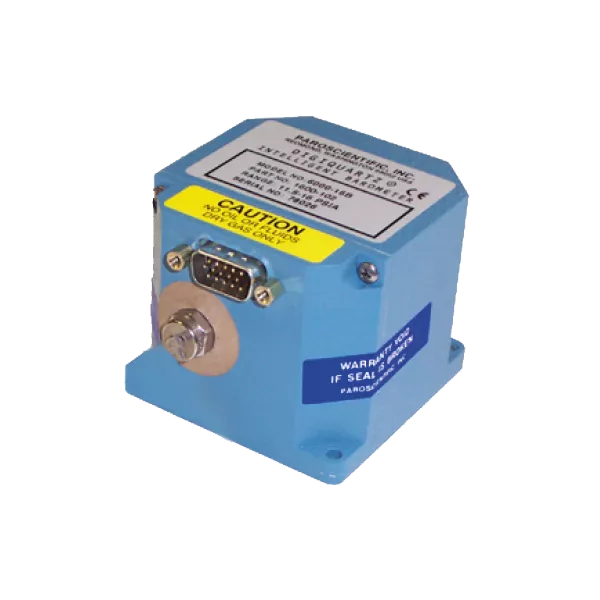

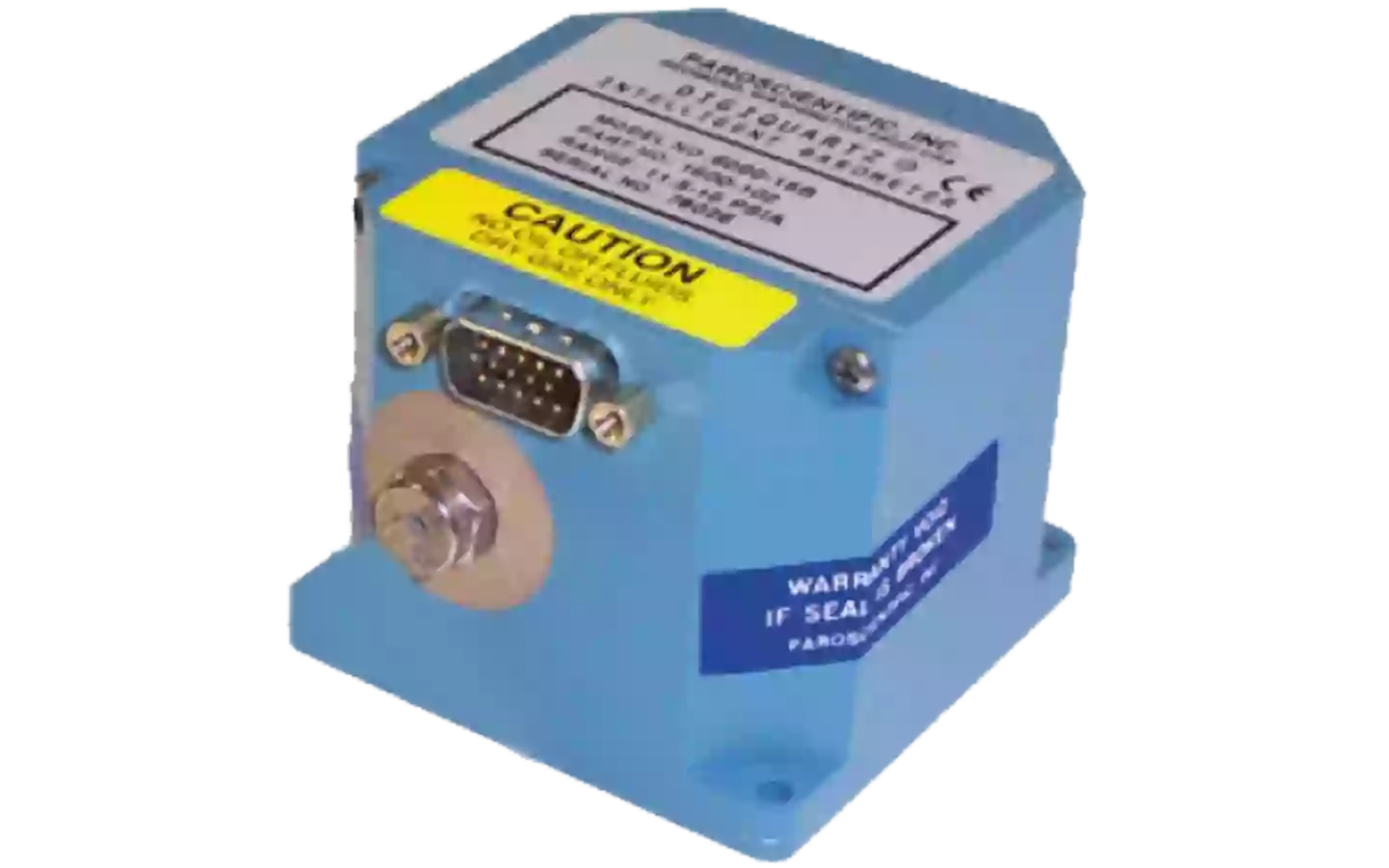

745-16B | 6000-16B Barometers
Digiquartz® barometric pressure standards
Key features
- Taring
- Low Power
- Free configuration software
- Battery operation (Model 745)
- Simple front panel (Models 745)
- Remote communication interface RS-232 (All Models), RS-485 (Series 6000-16B)
- NIST traceable
- Low maintenance
About the 745-16B | 6000-16B Barometers
Digiquartz® Broadband Intelligent Barometers and Barometric Standards provide the ultimate accuracy in pressure measurements. Typical application accuracy of ±0.08 hPa is achieved under laboratory and field conditions. Digiquartz® Broadband Barometers are used for applications where accuracy, reliability, long-term stability and low total cost of ownership are critical parameters.
Applications 745-16B | 6000-16B
- Metrology
- Aerospace
- Meteorology
- Oceanography
- Process Control
- Energy Exploration
- Infrasonic Research
- Reference Barometers
- Altimeter Setting Indicators
- Laboratory Instrumentation
New version of DQI3 Digiquartz Interactive Software
Prior to installing this newer version, we suggest any currently installed versions first be removed from the PC.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | 0.08 mbar |
| Measurement range 6000-16b | 0 - 0.8 bar to 0 - 1.1 bar |
| Measurement range 745-16b | 0 - 0.5 bar to 0 - 1.1 bar |
| Output 6000-16b | RS - 232 [6 - 16 VDC] |
| Output 745-16b | RS - 232 [6 - 25 VDC, battery AA] |
| Pressure type | absolute |
